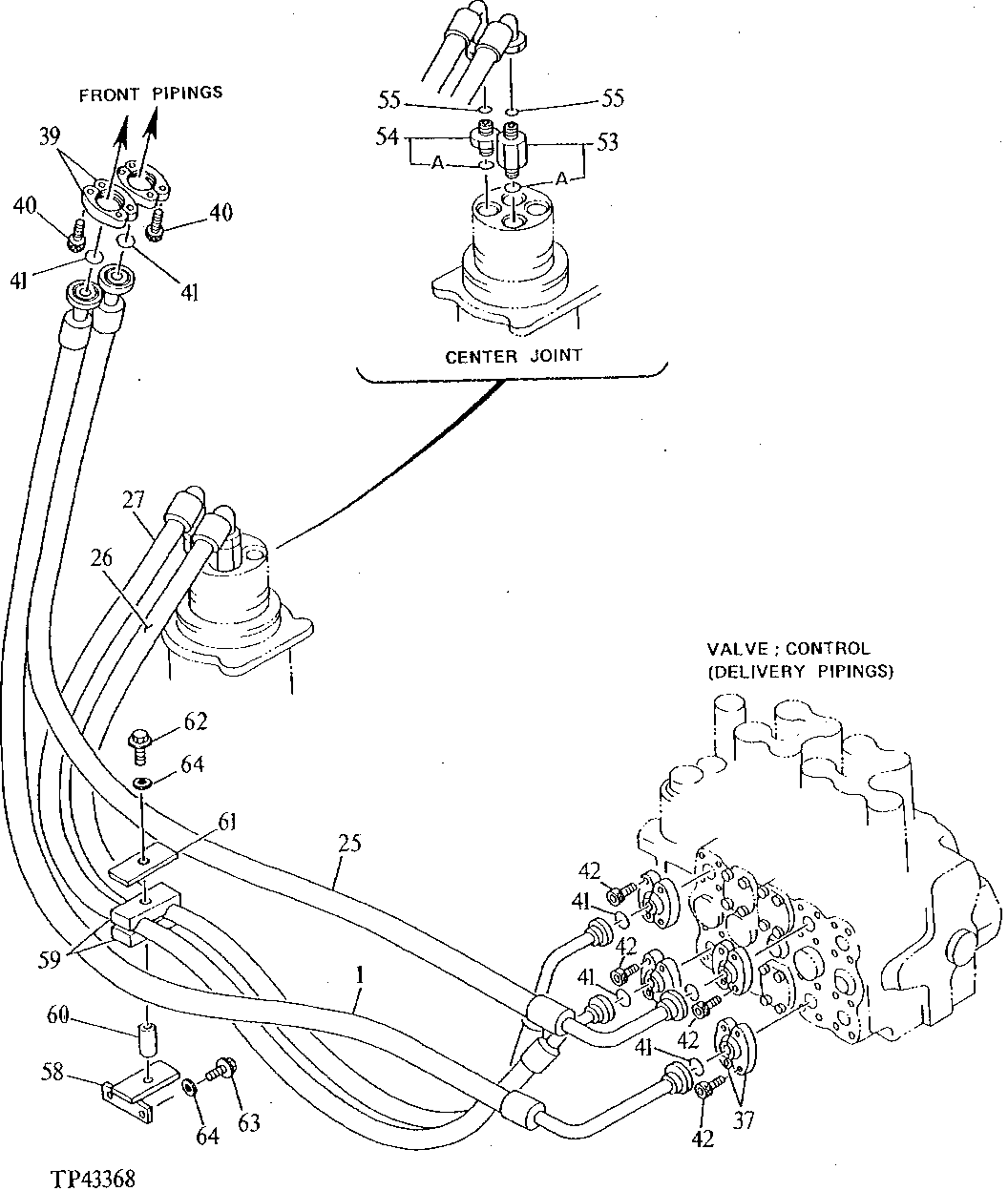

HIGH PRESSURE HYDRAULIC HOSES AND LINES [03G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4205323	1	HYDRAULIC HOSE	(SUB FOR AT131777) (ARM CYLINDER - BOOM TO VALVE)
25	4205324	1	HYDRAULIC HOSE	(SUB FOR AT131778) (ARM CYLINDER - BOOM VALVE)
26	4205325	1	HYDRAULIC HOSE	(SUB FOR AT131779)
27	4205334	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT131783)
37	AT131685	8	Flange Fitting	-
39	R29867	4	Flange Fitting	-
40	19M8448	8	Screw	M12 X 35
41	T72216	6	O-Ring	-
42	19M8734	16	Screw	M14 X 45, (SUB FOR TH102991)
53	4205141	1	ADAPTER FITTING	(SUB FOR AT131770)
54	4189535	1	Adapter Fitting	(SUB FOR AT114853)
55	T76938	2	O-Ring	(SUB FOR TH108326)
58	9730356	1	BRACKET	(SUB FOR AT132140)
59	4205615	2	Hose Clamp	(SUB FOR AT131792)
60	4205614	1	Spacer	(SUB FOR AT131791)
61	4711050	1	Plate	(SUB FOR AT131918, 4224002)
62	19M8122	1	Cap Screw	M12 X 85
63	19M8765	2	Screw	M12 X 28, (SUB FOR 19M3204)
63	19M8011	2	Cap Screw	M12 X 30, (SUB FOR AT131539 OR TH101717, ALONG WITH 12M7067)
64	12H301	3	Lock Washer	1/2"
64	12M7058	3	Lock Washer	12 MM, (SUB FOR 12M7067)
53A	TH101926	1	O-Ring	-
54A	TH101926	1	O-Ring	-
