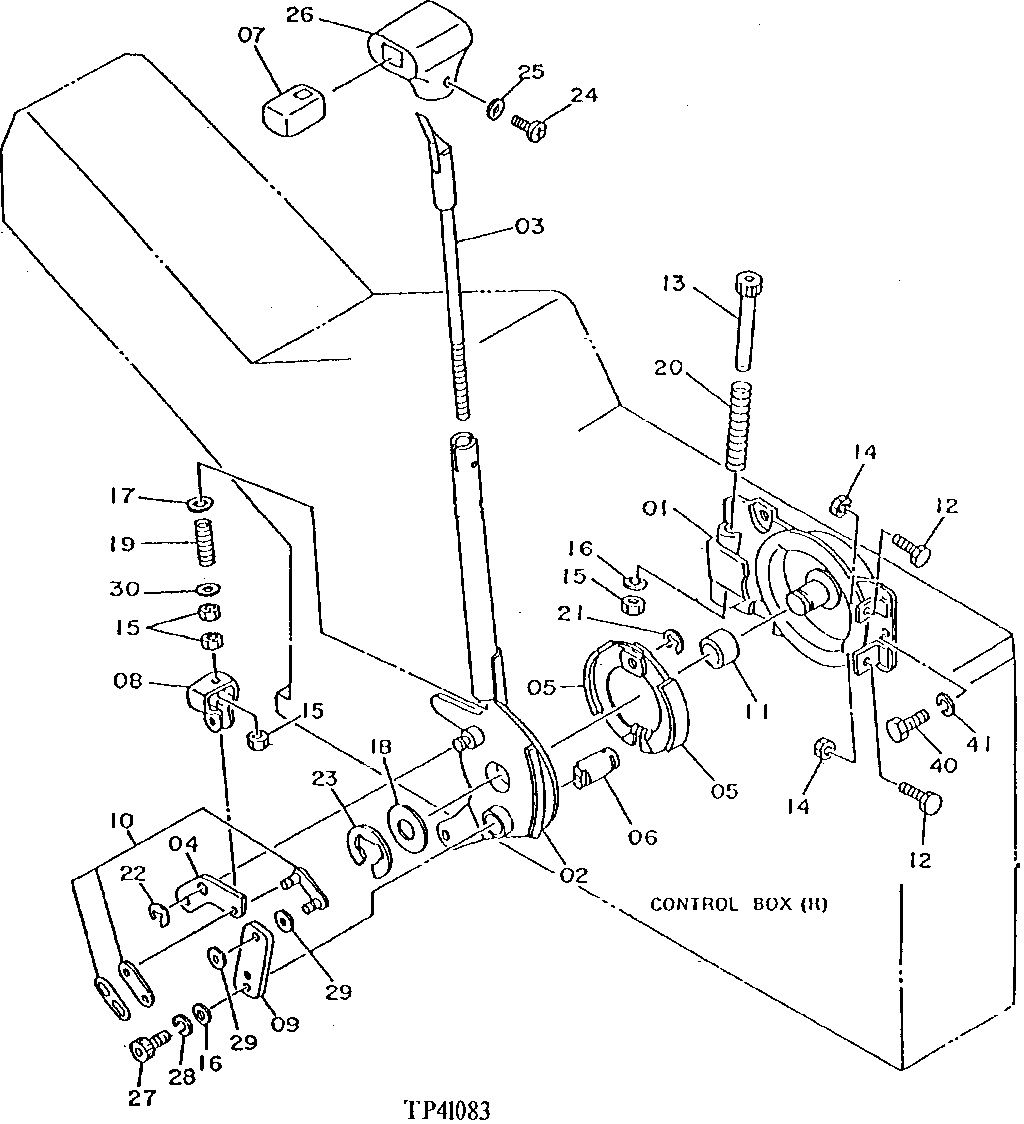

ENGINE SPEED CONTROL (SERIAL NO. 005254- ) [01G10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4241146	1	PLATE	(SUB FOR AT131387)
2	4241147	1	LEVER	(SUB FOR AT131388)
3	4241148	1	LEVER	(SUB FOR AT131389)
4	4241149	1	LINK	(SUB FOR AT131390)
5	4241150	2	BRAKE SHOE	(SUB FOR AT131391)
6	4241151	1	CAM	(SUB FOR AT131392)
7	4241152	1	PUSH BUTTON	(SUB FOR AT131393)
8	4241153	1	TURNBUCKLE	(SUB FOR AT131394)
9	4241154	1	LEVER	(SUB FOR AT131395)
10	4241155	1	LINK	(SUB FOR AT131396) (SUB FOR AT131977, ALONG WITH AT130866)
11	4241156	1	BUSHING	(SUB FOR AT131397)
12	19M8008	2	Cap Screw	M8 X 35
13	4241157	1	BOLT	(SUB FOR AT131398)
14	14M7273	2	Nut	M8
15	4045245	4	Nut	(SUB FOR AT131399)
16	24M7054	2	Washer	6.400 X 12 X 1.600 MM
17	24M7055	1	Washer	8.400 X 16 X 1.600 MM
18	24M7051	1	Washer	21 X 37 X 3 MM
19	4241158	1	SPRING	(SUB FOR AT131400)
20	4241159	1	SPRING	(SUB FOR AT131401)
21	4241160	1	SNAP RING	(SUB FOR AT131402)
22	4241161	1	SNAP RING	(SUB FOR AT131403)
23	4241162	1	SNAP RING	(SUB FOR AT131984) (SUB FOR AT131404)
24	4241163	1	SCREW	(SUB FOR AT131405)
25	4241164	1	WASHER	(SUB FOR AT131406)
26	4241165	1	KNOB	(SUB FOR AT131407)
27	M340610	1	Screw	(SUB FOR AT127981) (SUB FOR AT132107, ALONG WITH AT130865)
28	12M7006	1	Lock Washer	6 MM
29	4241166	2	SPACER	(SUB FOR AT131408)
30	4241167	1	WASHER	(SUB FOR AT131409)
40	19M7932	3	Cap Screw	M8 X 16
41	12M7056	3	Lock Washer	8 MM, (SUB FOR 12M7065)

ENGINE SPEED CONTROL (SERIAL NO. 005254- ) [01G10]

Нет текстового описания
