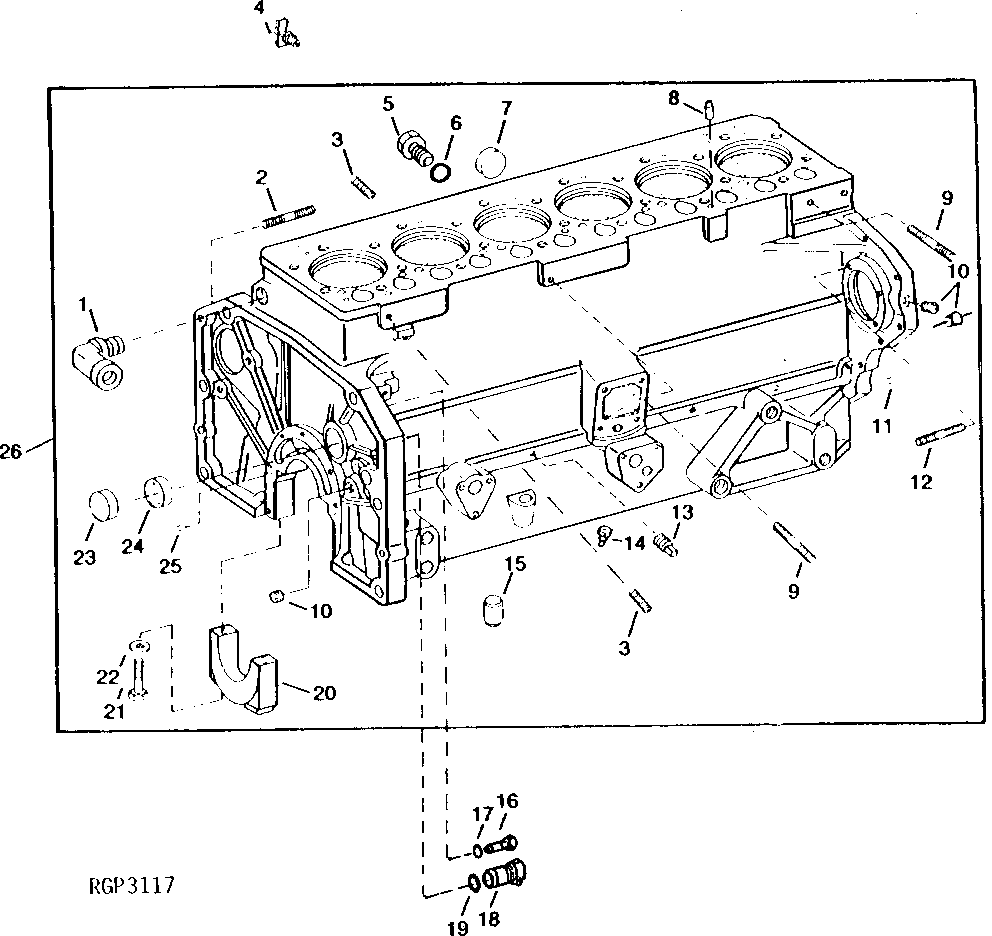

CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS (850, 850LGP) (ENGINE SERIAL NO. 039979-059243) (JD862) (ENGINE SERIAL NO. 040632-059243)(JD855 ENGINE SERIAL NO. 040706-059243) (JD860-B, JD890, 890A) (ENGINE SHORT BLOCK SERIAL NO. 531901-763740) [01C19]

CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS (850, 850LGP) (ENGINE SERIAL NO. 039979-059243) (JD862) (ENGINE SERIAL NO. 040632-059243)(JD855 ENGINE SERIAL NO. 040706-059243) (JD860-B, JD890, 890A) (ENGINE SHORT BLOCK SERIAL NO. 531901-763740) [01C19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R58725	1	Elbow Fitting	90°
2	R114129	2	Stud	1/2" X 2", (SUB FOR D488R, APPL)
3	15H666	2	Pipe Plug	3/8", (USE (1) WHEN RE28854 HAS BEEN INSTALLED)
4	AT13740	1	Drain Valve	-
4	15H220	1	ELBOW FITTING	(NOT ILLUSTRATED) (USE WITH AT13740) (JD890, 890A)
5	R39741	1	Drain Plug	-
6	U13639	1	O-Ring	-
7	AR80294	1	PLUG	-
8	R26241	2	DOWEL PIN	7/16" X 1-3/4"
9	K3083R	3	STUD	-
10	RE57836	3	Pipe Plug	1/2", (SUB FOR AR72318 OR 15H624)
11	R1612R	4	Dowel Pin	-
12	R114130	4	Stud	(SUB FOR R55396)
13	R104592	3	Pipe Plug	(SUB FOR R21630, APPL)
14	R43621	6	Orifice	-
15	R62930	2	Bushing	-
16	AR61589	1	PLUG	-
17	A4365R	1	O-Ring	-
18	AR61533	1	Plug	-
19	R27149	1	O-Ring	-
20	R59112	6	Cap	(MAIN)
20	R59113	1	Cap	(MAIN THRUST)
21	R60117	14	SCREW	-
22	R70268	14	Washer	(SUB FOR R42363)
23	R26115	1	Plug	-
24	R46903	4	BUSHING	-
25	F1743R	2	Dowel Pin	-
26	AR92534	1	CYLINDER BLOCK	(A) (MARKED R63199) (SUB RE43051, R58724, (6) R80575, (6) RE40476 AND (6) AR79366)
26	RE37369	1	CYLINDER BLOCK	(A) (MARKED R98554) (SUB RE43051 AND R58724)
26	RE28854	1	CYLINDER BLOCK	(A) (MARKED R88217) (SUB RE43051 AND R58724)
26	RE13842	1	Cylinder Block	(A) (MARKED R75934) (SUB RE43051, R58724, (6) RE40476 AND (6) R80575)
26	AR101272	1	CYLINDER BLOCK	(MARKED R74123) (SUB RE43051, R58724, (6) RE40476 AND (6) R80575) (JD890, JD890A)
26	AR101272	1	CYLINDER BLOCK	(A) (MARKED R74123) (SUB RE43051, R58724, (6) R80575 AND (6) RE40476)
26	AR92534	1	CYLINDER BLOCK	(MARKED R63199) (SUB RE43051, R58724, (6) R80575, (6) RE40476 AND (6) AR79366) (JD890, JD890A)
-	RE37369	1	CYLINDER BLOCK	(992D-LC) (MARKED R98554) (SUB SE500076 AND R105618, THIS APPLICATION)
-	SE500076	1	BASIC DIESEL ENGINE REMAN	(992D-LC) (REMANUFACTURED) (SUB FOR RE43051 AND RE43052, THIS APPLICATION) (CALL 888-697-3626 FOR AVAILABILITY)

CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS (850, 850LGP) (ENGINE SERIAL NO. 039979-059243) (JD862) (ENGINE SERIAL NO. 040632-059243)(JD855 ENGINE SERIAL NO. 040706-059243) (JD860-B, JD890, 890A) (ENGINE SHORT BLOCK SERIAL NO. 531901-763740) [01C19]
