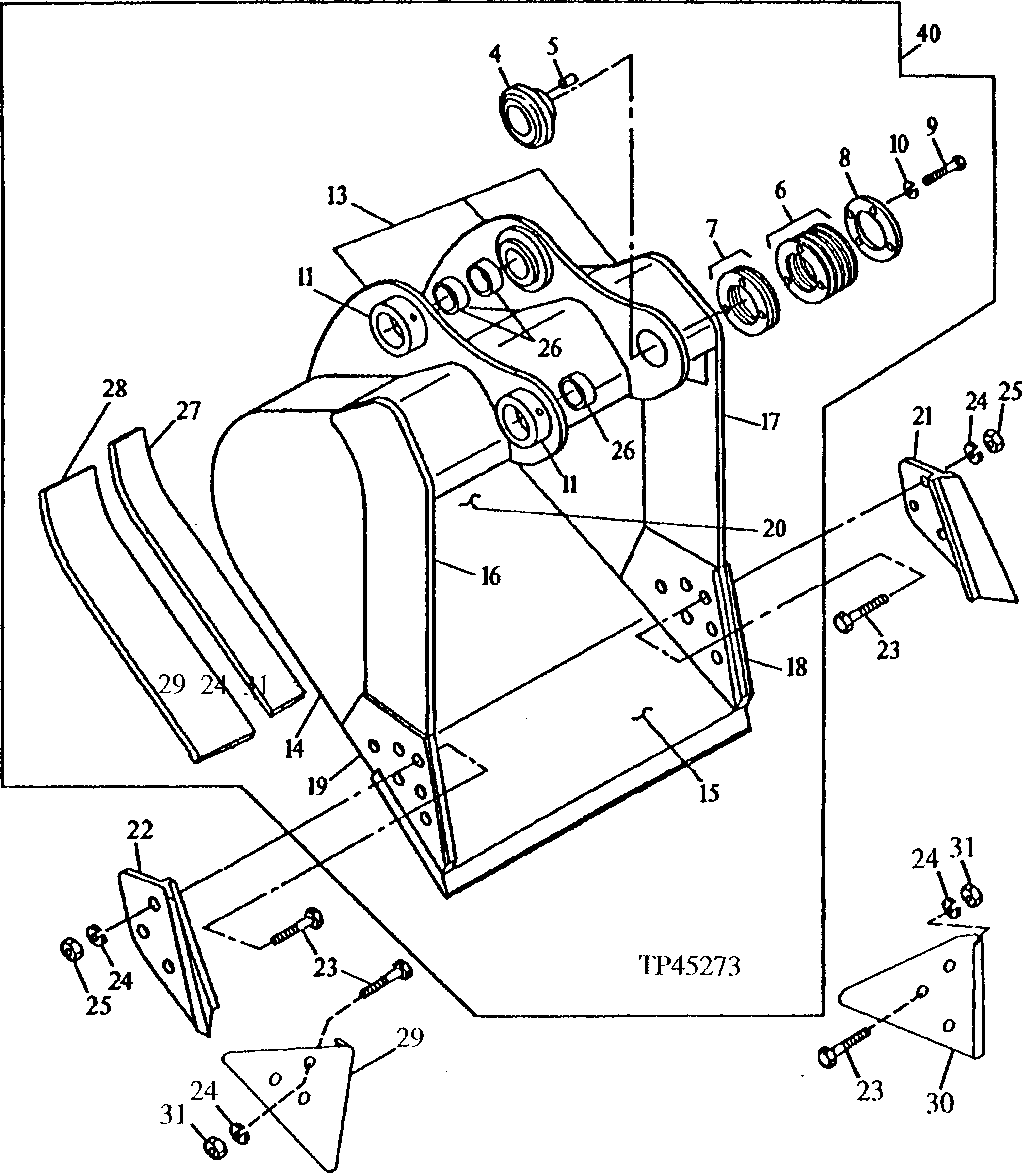

BUCKET (HEAVY DUTY HIGH CAPACITY) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) [03C01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	(1 MM)
7	4207194	2	Shim	(SUB FOR AT131815) (.5 MM)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	C606320	1	Pivot	(F) (BUCKET EAR BLANK ASSEMBLY)
14	300324	2	Plate	(F) (RIGHT AND LEFT SIDE)
15	AT131098	1	Dura-Max Cutting Edge	(CUT TO LENGTH)
16	300327	1	Vertical Cutter	(F) (UPPER RIGHT SIDE CUTTER)
17	300328	1	Vertical Cutter	(F) (UPPER LEFT SIDE CUTTER)
18	300326	1	Vertical Cutter	(F) (LEFT SIDE CUTTER INSERT)
19	300325	1	Vertical Cutter	(F) (RIGHT SIDE CUTTER INSERT)
20	608234	1	Moldboard	(F) (72 INCH)
20	600196	1	Moldboard	(F) (60 INCH)
20	600195	1	Moldboard	(F) (54 INCH)
20	600192	1	Moldboard	(F) (42 INCH)
20	600190	1	Moldboard	(F) (36 INCH)
20	600194	1	Moldboard	(F) (48 INCH)
21	-	1	Part 22	(K) (SUB AT131085)
22	-	1	Part 23	(K) (SUB AT131085)
23	09H1771	6	Bolt	(K) 7/8" X 3"
24	12H245	6	Lock Washer	(K) 7/8", (K2)
25	14H1077	6	Nut	(K) 7/8", (K2)
26	4205109	3	Bushing	(SUB FOR AT131768)
27	300645	1	Bar	(F) (INNER WEAR)
28	307451	1	Bar	(F) (OUTER WEAR)
29	-	1	Part 30	(K2) (WEAR SHROUD)
30	-	1	Part 31	(K2) (WEAR SHROUD)
31	14H1044	6	Nut	22.225 MM (7/8") (K2)
40	-	1	Part 33	(SUB AT183645) (SUB FOR AT131069 OR AT131189) (36 INCH - 1.96 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163688 NO LONGER AVAILABLE)
40	-	1	Part 34	(SUB AT183646) (SUB FOR AT131070 OR AT131190) (42 INCH - 2.32 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163689 NO LONGER AVAILABLE)
40	-	1	Part 35	(SUB AT183647) (SUB FOR AT131071 OR AT131191) (48 INCH - 2.69 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163690 NO LONGER AVAILABLE)
40	-	1	Part 36	(SUB AT183648) (SUB FOR AT131072 OR AT131192) (54 INCH - 3.06 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163691 NO LONGER AVAILABLE)
40	-	1	Part 37	(SUB AT183649) (SUB FOR AT131073 OR AT131193) (60 INCH - 3.43 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163692 NO LONGER AVAILABLE)
40	-	1	Part 38	(SUB AT183650) (66 INCH - 3.80 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT167303 NO LONGER AVAILABLE)
40	-	1	Part 39	(SUB AT183651) (SUB FOR AT131074 OR AT131194) (72 INCH - 4.18 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163693 NO LONGER AVAILABLE)

BUCKET (HEAVY DUTY HIGH CAPACITY) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) [03C01]
