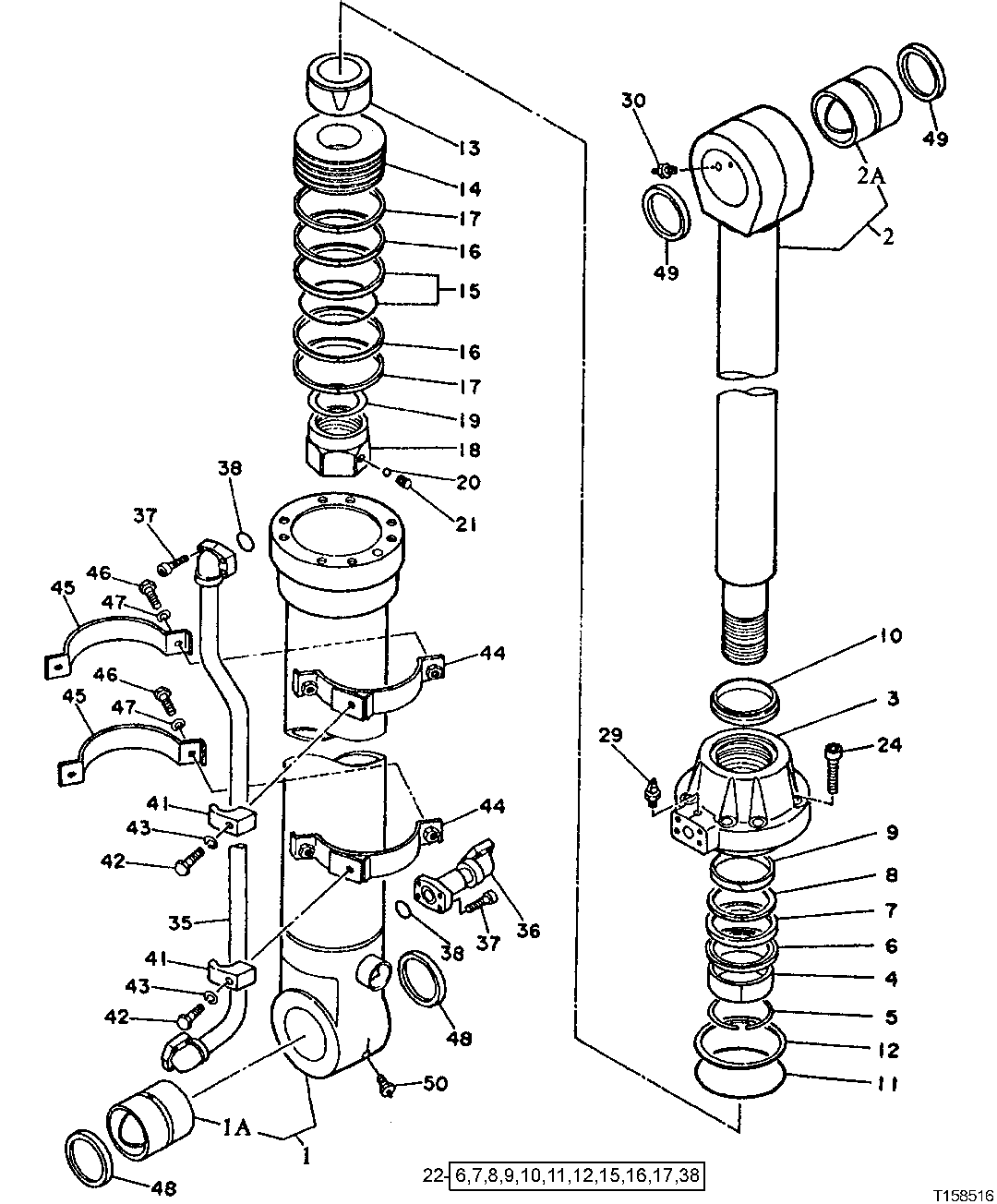

BUCKET CYLINDER (2.9M OR 3.9M ARM) [03G03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0352901	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT132305)
2	0352902	1	ROD	(SUB FOR AT132306)
3	0352703	1	CYLINDER HEAD	(SUB FOR AT132282)
4	0352704	1	Bushing	(SUB FOR AT132283)
5	0133103	1	Snap Ring	(SUB FOR AT127275)
6	AT132284	1	Ring	-
7	AT132285	1	Seal	-
8	AT132286	1	Back-Up Ring	-
9	AT318036	1	RING	(SUB FOR 4S00143) (SUB FOR AT132287)
10	AT191197	1	Ring	(A) (SUB FOR AT132288)
11	AT264240	1	O-Ring	(A) (SUB FOR AT132154)
12	AT264252	1	Back-Up Ring	(A) (SUB FOR AT132399)
13	0352710	1	BEARING	(SUB FOR AT132289)
14	0352711	1	PISTON	(SUB FOR AT132290)
15	AT264253	1	Ring	(A) (SUB FOR AT132400)
16	AT318037	2	RING	(SUB FOR 4S00149) (SUB FOR AT132291)
17	AT264248	2	Ring	(SUB FOR AT132175)
18	0352713	1	Nut	(SUB FOR AT132292)
19	0352714	1	Shim	(SUB FOR AT132293)
20	R26552	1	Ball	(SUB FOR AT132159)
21	H228111	1	Set Screw	(SUB FOR AT132294 OR 0352715)
22	AT196465	1	SEAL KIT	(INCLUDES PARTS MARKED (A)) (SUB FOR AT132411 AND 4438758)
24	0191412	8	Bolt	(SUB FOR AT132295) (SUB FOR AT217053)
29	0237418	2	BLEED VALVE	(SUB FOR TH102787)
30	TH100074	1	Lubrication Fitting	-
31	-	1	Part 28	( AT131956 NO LONGER USED) (SUB AT182457) (NOT ILLUSTRATED) (CONTAINS KEYS 1 THROUGH 30)
31	-	1	Part 29	(REMANUFACTURED) ( AT182457 NLA)
35	4S00337	1	LINE	(SUB FOR AT132307)
36	0352904	1	JOINTER	(SUB FOR AT132308)
37	19M8395	8	Screw	M12 X 40
38	AT264348	2	O-Ring	(SUB FOR TH102788)
41	0309219J	2	Half Clamp	(SUB FOR 0309219) (SUB FOR T108064)
42	19M7363	2	Cap Screw	M12 X 60
43	12M7058	2	Lock Washer	12 MM, (SUB FOR 12M7067)
44	0875612	2	Half Clamp	-
44	-	2	Part 37	( 0352719 NLA) (SUB FOR AT132298)
45	0352721	2	Band	(SUB FOR AT132300)
46	19M7550	4	Cap Screw	M10 X 35
47	12M7066	4	Lock Washer	10 MM
48	TH103200	2	Seal	-
49	TH102411	2	Seal	-
50	JD7769	1	Lubrication Fitting	(SUB FOR TH100364)
1A	4609091	1	Bushing	(SUB FOR AT132309, 0352905)
2A	0352722-P	1	BUSHING	(SUB FOR AT132301)

BUCKET CYLINDER (2.9M OR 3.9M ARM) [03G03]
