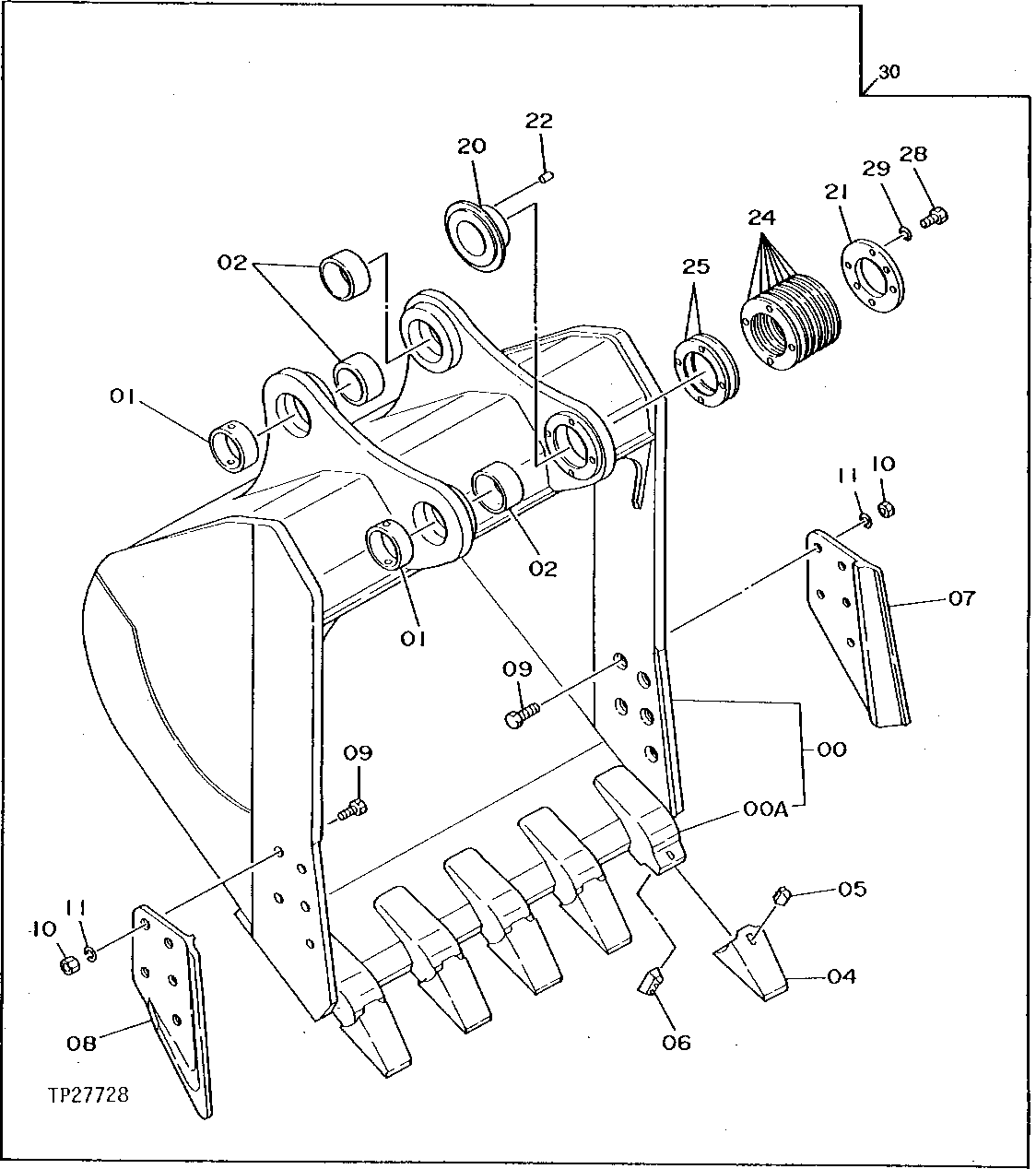

BUCKET (2.0 AND 1.8 CUBIC METER) [03B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	(2.0 CU. METER) (NOT FOR USE WITH 4.9M (16' 1") ARM) ( AT132571 NO LONGER AVAILABLE)
0	-	1	Part 1	( AT132572 - NO LONGER AVAILABLE) (1.8 CU. METER) (NOT FOR USE WITH 4.9M (16' 1") ARM)
1	AT128461	2	Bushing	(SUB FOR AT131767)
2	4205109	3	Bushing	(SUB FOR AT131768)
4	T45S	5	TOOTH	(SUB FOR AT131710 OR T47166)
5	T45PN	5	PIN FASTENER	(SUB FOR AT132132 OR T47165)
6	T45LK	5	LOCK	(SUB FOR AT132133 OR T47164)
7	1010517	1	Cutting Edge	(SUB FOR AT131563)
8	1010518	1	Cutting Edge	(SUB FOR AT131564)
9	19M8573	10	CAP SCREW	M27 X 70
10	14M7476	10	Nut	M27
11	12H318	10	Lock Washer	1-1/8"
20	3038818	1	Boss	(SUB FOR AT131625)
21	AT131814	1	Plate	-
22	4179110	2	Pin	(SUB FOR TH103520)
24	AT131816	7	Washer	1MM
25	4207194	2	Shim	.5MM, (SUB FOR AT131815)
28	19M7409	4	Cap Screw	M16 X 50, (1.8 CU. METER)
28	19M7489	4	Cap Screw	M16 X 45, (2.0 CU. METER)
29	12H294	4	Lock Washer	5/8"
30	-	1	Part 22	( AT131517 NO LONGER AVAILABLE) (2 CU. METER) (NOT FUR USE WITH 4.9M (16' 1") ARM)
30	-	1	Part 23	( AT131516 NO LONGER AVAILABLE) (1.8 CU. METER) (NOT FUR USE WITH 4.9M (16' 1") ARM)
0A	4613845	5	BUCKET TOOTH ADAPTER	(SUB FOR AT131709 OR 4153602)

BUCKET (2.0 AND 1.8 CUBIC METER) [03B07]
