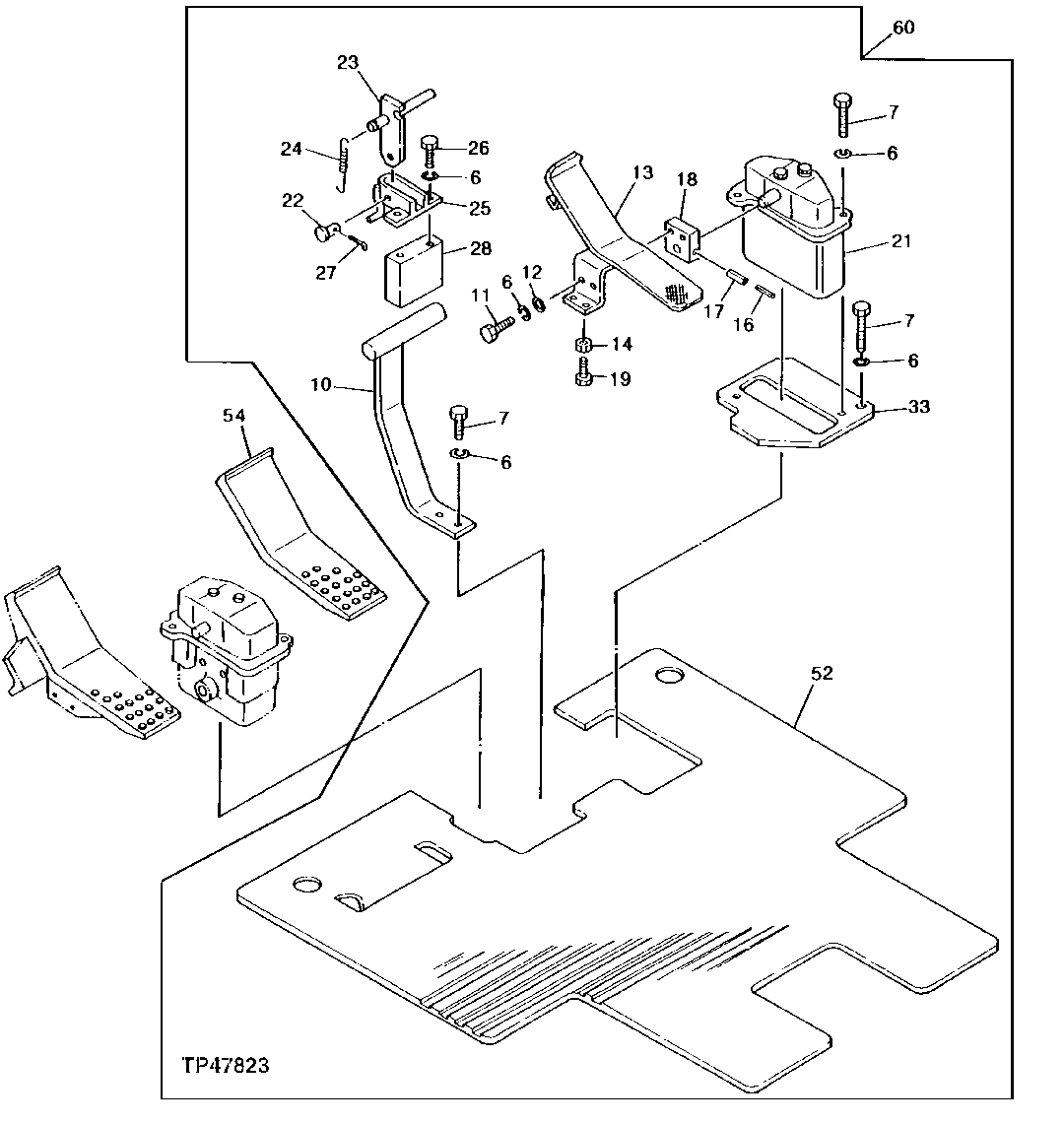

AUXILIARY FUNCTION VALVE, HOSES, CIRCUIT RELIEF VALVES AND PEDAL LOCK KIT [03J07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
6	12M7066	9	Lock Washer	10 MM
7	19M7550	5	Cap Screw	M10 X 35
10	9728875	1	FOOTREST	(SUB FOR TH110195)
11	19M7402	2	Cap Screw	M10 X 25
12	24M7028	2	Washer	10.500 X 20 X 2 MM
13	8046079	1	PEDAL	(SUB FOR TH110191) (SUB FOR AT134292)
14	14M7273	1	Nut	M8
16	34M7062	1	Spring Pin	5 X 32 MM
17	34M7124	1	Spring Pin	8 X 30 MM, (SUB FOR 34M7065)
18	4211166	1	SUPPORT	(SUB FOR TH110190)
19	19M8008	1	Cap Screw	M8 X 35, (SUB FOR AT134128)
21	9074843	1	Hyd Actuated Control Valve	(SUB FOR TH110188) (USE WITH (2) TH111705 CIRCUIT RELIEF VALVE)
22	45M3667	1	Pin Fastener	10 X 28 MM, (SUB FOR TH105681)
23	9733399	1	Bracket	(SUB FOR TH110192) (SUB FOR AT134303)
24	4149125	1	SPRING	(SUB FOR TH106748)
25	8034081	1	BRACKET	(SUB FOR TH110193)
26	19M8761	2	Screw	M10 X 22, (SUB FOR TH102993)
27	11M7082	1	Cotter Pin	2.500 X 25 MM, (SUB FOR 11M7080)
28	4211167	1	SPACER	(SUB FOR TH110194)
33	9728874	1	Plate	(SUB FOR TH110189)
42	4228353	2	Pressure Relief Valve	(SUB FOR TH111705) (NOT ILLUSTRATED) USE WITH TH110188 AUXILIARY FUNCTION VALVE (RELIEF SETTING AT 4270 PSI)
52	3040042	1	MAT	(SUB FOR AT132472)
54	19M7938	1	Cap Screw	(SUB FOR AT132473)
60	TH108154	1	KIT	(CONTAINS ALL ITEMS ON THIS PAGE - FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE) (ALSO ORDER AT50269, R27095, AT48422 AND AU43156, THIS APPLICATION)

AUXILIARY FUNCTION VALVE, HOSES, CIRCUIT RELIEF VALVES AND PEDAL LOCK KIT [03J07]
