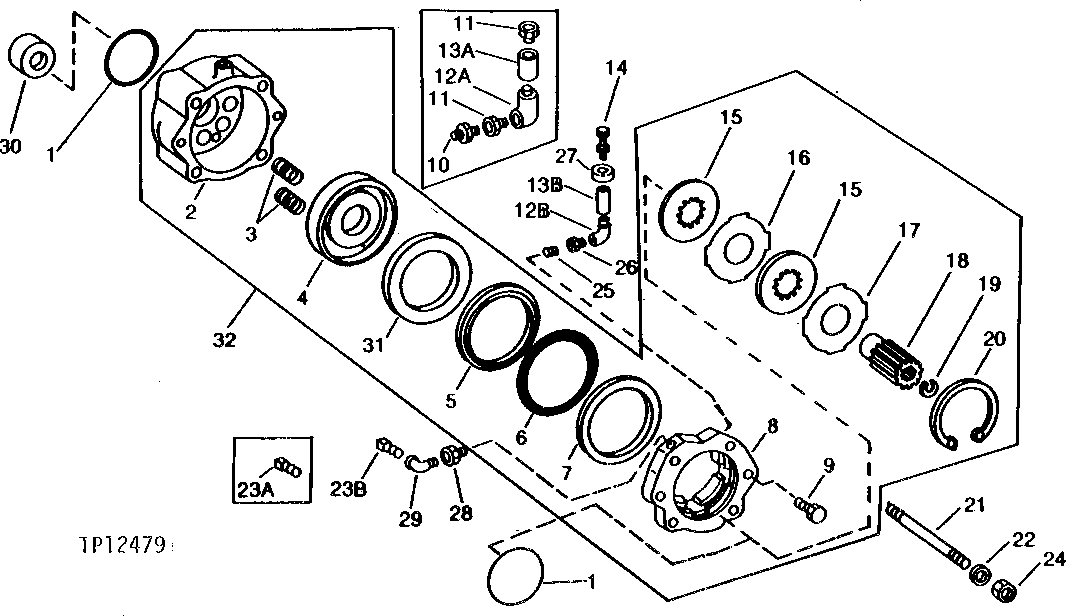

HOUSE LOCK (SERIAL NO. -510035) [02K09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R55453	2	O-Ring	(SUB FOR T70178)
2	AT60809	1	HOUSING	(MARKED T63825)
3	T40977	10	SPRING	-
4	T40975	1	PISTON	-
5	AT67011	1	SEAL	(SUB AT81800)
5	AT112460	1	SEAL	(SUB FOR AT79896 AND AT81800)
6	T70176	1	O-Ring	-
7	U44590	1	BACK-UP RING	-
8	T75463	1	FLANGE	(SUB FOR T57511) (ALSO ORDER (2) 19H2922)
8	T77035	1	FLANGE	-
9	19H2922	1	Screw	3/8" X 1-1/4", (SUB FOR 19H3239)
10	T28053	1	Threaded Nipple	-
11	15H514	2	Pipe Bushing	(1/2" X 1/8")
14	U14273	1	Breather	-
15	T114856	7	BRAKE DISK	(SUB FOR T46153)
16	T59495	7	BRAKE DISK	-
17	T59496	1	BRAKE DISK	-
18	T40976	1	SHAFT	-
19	T14445	1	SNAP RING	-
20	T40980	1	SNAP RING	-
21	T81431	4	STUD	(SUB FOR T67715)
22	N31767	4	WASHER	-
24	14H1040	4	Nut	1/2"
25	29H688	1	THREADED NIPPLE	1/4" X 1-3/4"
26	15H642	1	Pipe Bushing	1/4" X 3/8"
27	T41645	1	FITTING	1" X 1/8"
28	15H639	1	Pipe Bushing	1/8", (SUB FOR 15H509)
29	29H197	1	THREADED NIPPLE	1/8"
30	AT40603	1	Seal	-
31	T107595	1	BACK-UP RING	(USE WITH AT81864) (SUB FOR T80940)
32	-	1	Part 37	( AT75571 AND AT81864 NO LONGER AVAILABLE)
12A	15H602	1	Elbow Fitting	(SUB FOR 15H200) (1/2")
12B	15H415	1	ELBOW FITTING	3/8" X 1"
13A	T59036	1	COUPLING	-
13B	29H761	1	THREADED NIPPLE	1" X 5"
23A	15H638	1	Pipe Plug	1/8"
23B	15H254	1	PIPE PLUG	1/4"

HOUSE LOCK (SERIAL NO. -510035) [02K09]
