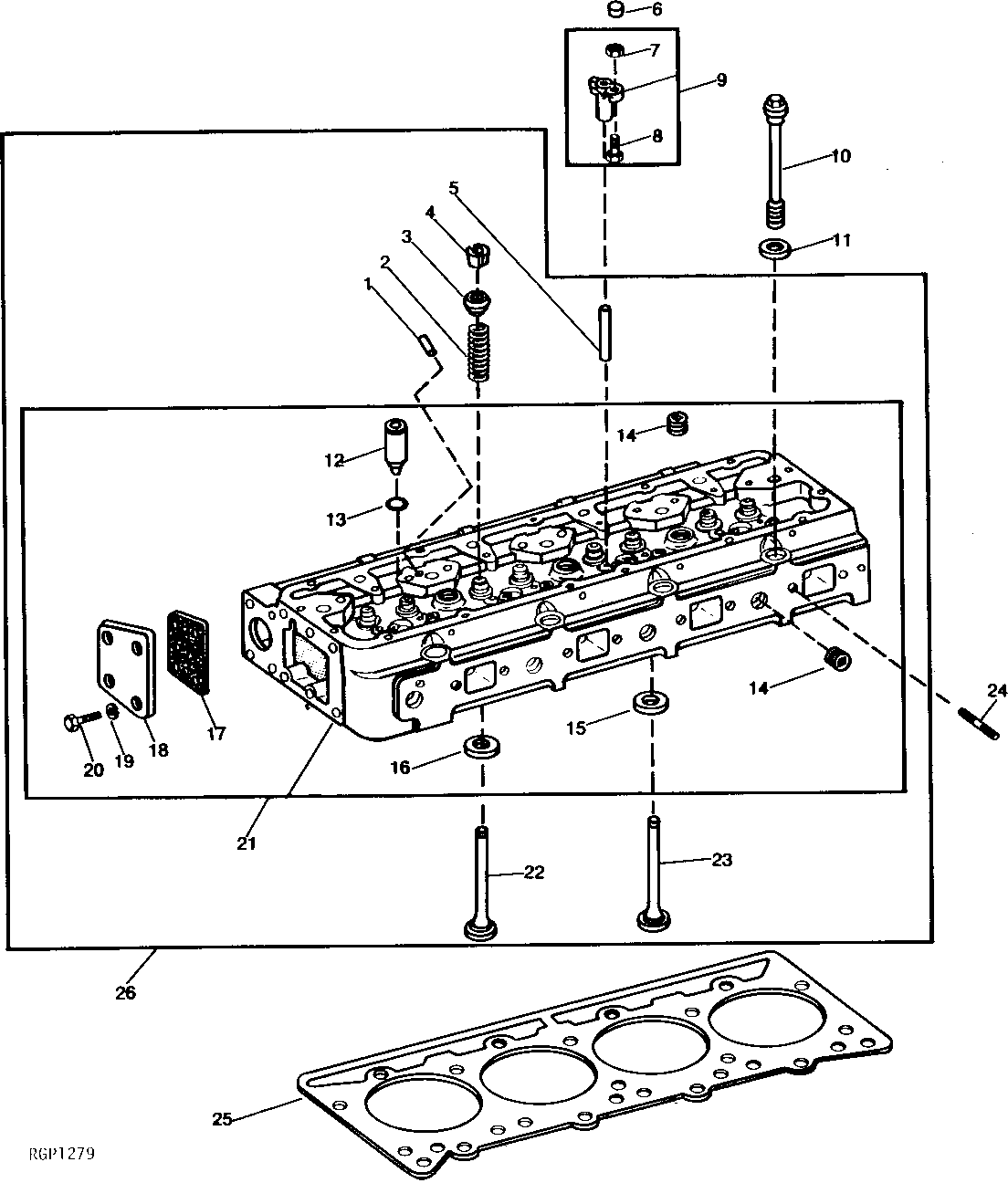

CYLINDER HEAD AND VALVES (RIGHT OR LEFT BANK) (8955 - EARLY ENGINE) [01F08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H247	1	Spring Pin	1/8" X 3/4"
2	R49571	16	SPRING	-
3	R62530	16	ROTATOR	-
4	T20077	32	Retainer	-
5	R61999	8	DOWEL PIN	-
6	R40366	8	CAP	-
7	R60717	8	Nut	-
8	R60582	8	Screw	-
9	AR73480	8	ARM	-
10	R63324	18	BOLT	-
11	R63325	18	WASHER	-
12	R62528	4	SLEEVE	-
13	R56751	4	O-Ring	-
14	15H562	7	Pipe Plug	1", (SUB FOR AR78522)
14	15H690	3	Pipe Plug	3/4", (SUB FOR AR72318)
15	R50356	8	VALVE SEAT INSERT	STD
15	R55061	8	VALVE SEAT INSERT	0.25 MM OS
16	R63078	8	VALVE SEAT INSERT	STD
16	R68136	8	VALVE SEAT INSERT	0.25 MM OS
17	R75133	1	GASKET	-
18	R75134	1	Cover	-
19	12M7066	4	Lock Washer	10 MM
20	19M7402	4	Cap Screw	M10 X 25
21	AR76896	1	CYLINDER HEAD	(A) (B) (MARKED R58024) (SUB RE10733)
21	RE10733	1	CYLINDER HEAD	(A) (B) (MARKED R73272)
21	RE10733	1	CYLINDER HEAD	(MARKED R73272)
22	R68139	8	Intake Valve	1.00 MM OS
22	R68138	8	INTAKE VALVE	0.50 MM OS
22	R68137	8	INTAKE VALVE	0.08 MM OS
22	R78445	8	INTAKE VALVE	STD, (SUB FOR R63079)
23	R50357	8	EXHAUST VALVE	STD
23	R55056	8	EXHAUST VALVE	0.08 MM OS
23	R55058	8	EXHAUST VALVE	0.38 MM OS
23	R55060	8	EXHAUST VALVE	0.76 MM OS
24	R61296	8	STUD	(SUB R82735, APPL)
25	RE51641	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R62409)
26	RE11270	1	CYLINDER HEAD	-
26	RG20631	1	Cylinder Head	REMANUFACTURED

CYLINDER HEAD AND VALVES (RIGHT OR LEFT BANK) (8955 - EARLY ENGINE) [01F08]
