SEPARATOR THRESHING ELEMENTS AND TINES (HI PERFORMANCE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH228817	8	Tine	(TINE) (3 PER KIT) (HIGH WEAR) (8 KITS USED) (SUB FOR AH221387)
1	AH209123	8	Tine	(TINE) (3 PER KIT) (HIGH WEAR) (8 KITS USED)
1	AH208554	8	Threshing Element	(TINE) (3 PER KIT) (8 KITS USED)
2	AH167742	1	Package Of Parts	-
3	AH171088	1	Package Of Parts	-
4	H160905	6	Bolt	-
5	28H2490	6	Bushing	0.546" X 0.840" X 9/16"
6	H171638	6	Flange Nut	-
7	AH216570	1	Threshing Element	(THRESHING ELEMENT) (3 PER KIT) (STANDARD)
7	AH216674	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (GRAIN QUALITY)
8	AH216571	1	Threshing Element	(THRESHING ELEMENT) (3 PER KIT) (STANDARD)
8	AH216675	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (GRAIN QUALITY)
9	AH215975	1	Kit	(3 PER KIT) (THRESHING CONE TINE)
10	AH215976	1	Kit	(3 PER KIT) (WEAR PLATE) (THRESHING CONE TINE)
11	AH216014	1	Kit	(3 PER KIT) (THRESHING CONE TINE)
11	AH216016	1	Tine	(3 PER KIT) (THRESHING TINE)
12	AH216015	1	Kit	(3 PER KIT) (WEAR PLATE) (THRESHING CONE TINE)
12	AH222540	1	Wear Plate	(3 PER KIT) (WEAR PLATE) (THRESHING TINE)
13	H208187	1	Screw	-
14	24M7296	9	Washer	10.500 X 30 X 2.500 mm
15	H208187	9	Screw	-
16	AH216572	1	Repair Kit	(THRESHING ELEMENT) (3 PER KIT) (3 KITS USED) (STANDARD)
16	AH216573	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR) (3 KITS USED) (STANDARD)
16	AH216677	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (GRAIN QUALITY) (3 KITS USED)
..	BH84427	1	Complete Goods/Ship. Bundle	(THRESHING ELEMENT)
..	BH84428	1	Complete Goods/Ship. Bundle	(THRESHING ELEMENT) (HIGH WEAR)

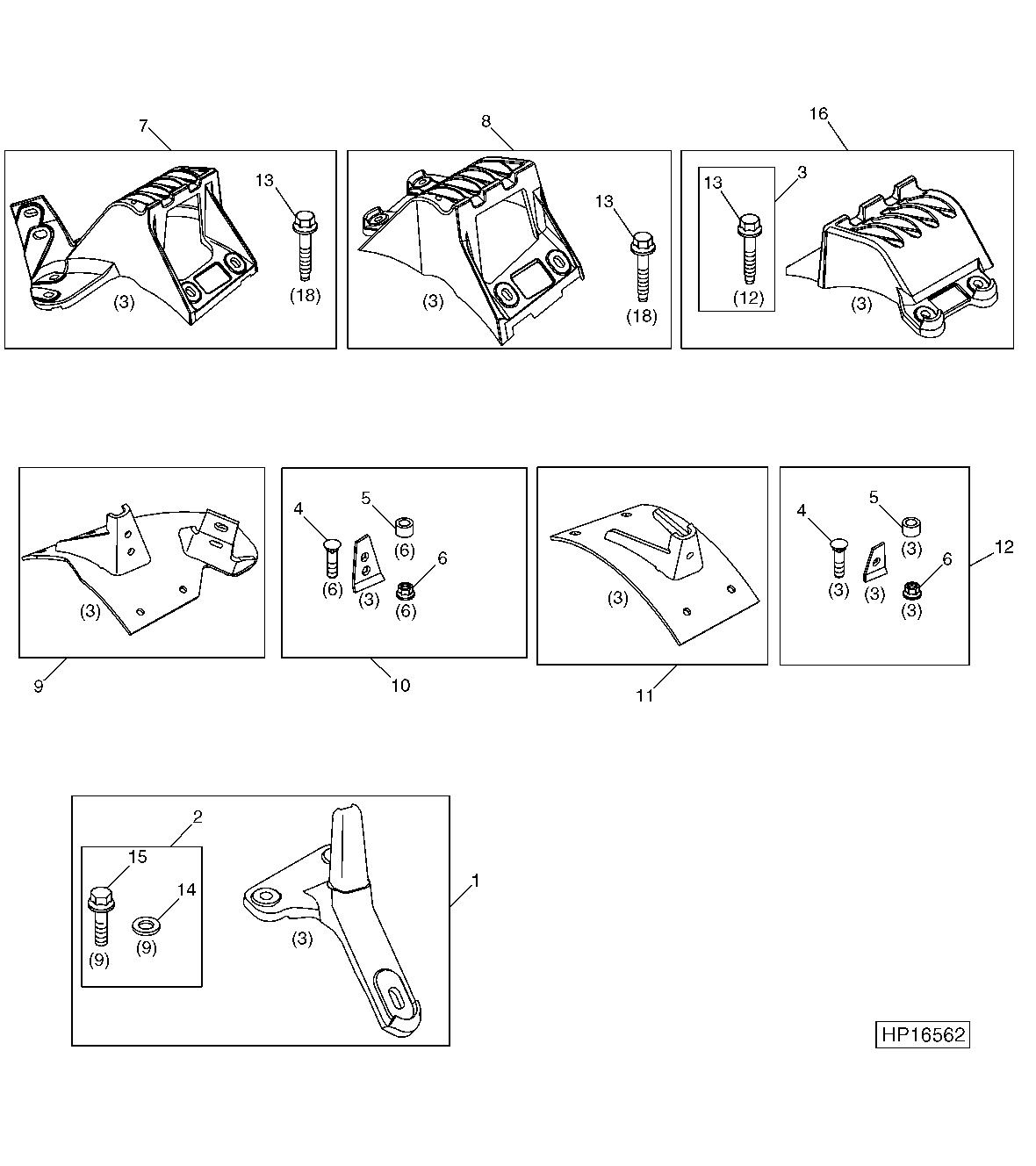

SEPARATOR THRESHING ELEMENTS AND TINES (HI PERFORMANCE)

Нет текстового описания
