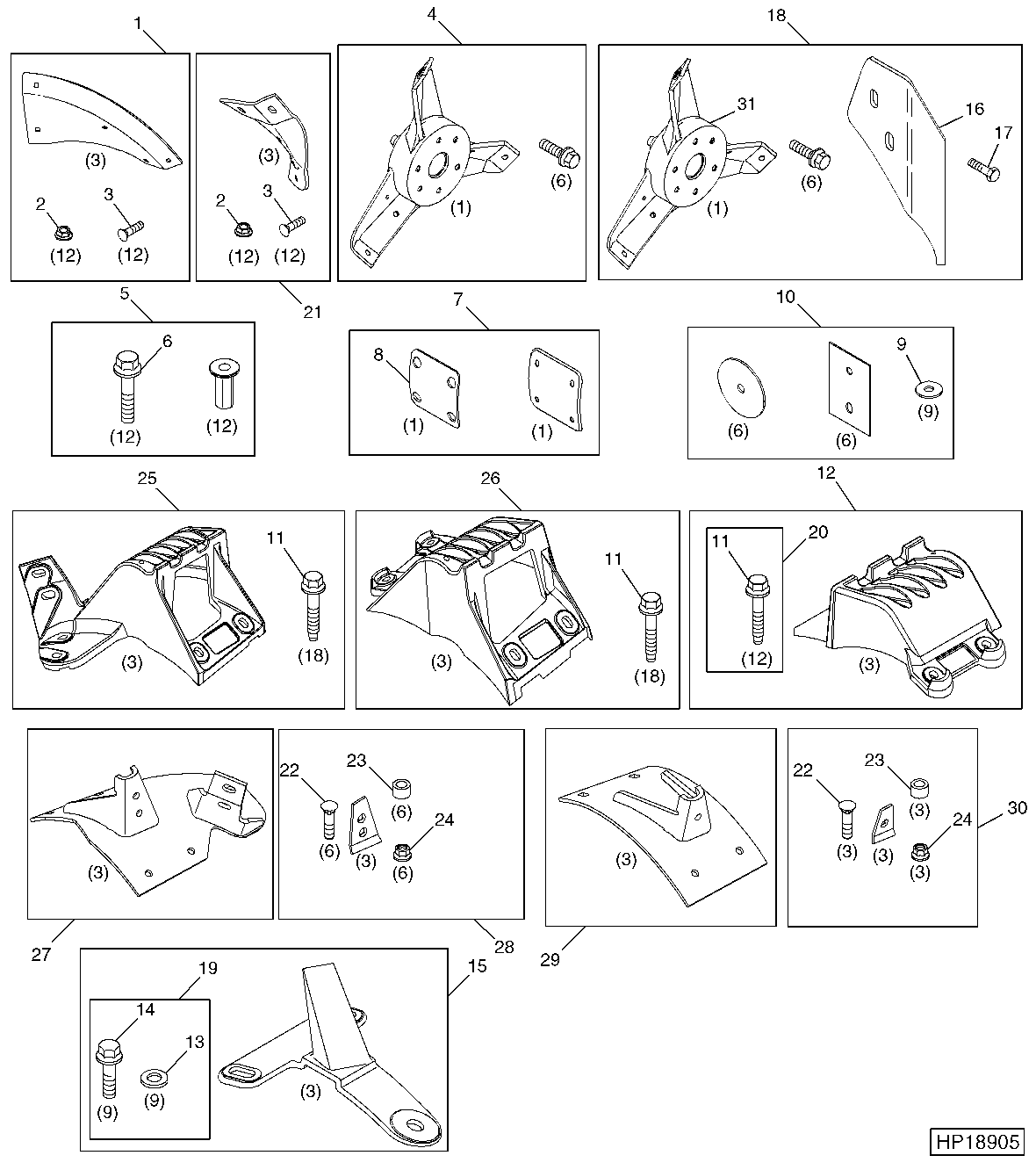

SEPARATOR CONE REPAIR KITS (HI PERFORMANCE) CONTINUED

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
15	AH228817	8	Tine	(TINE) (3 PER KIT) (8 KITS USED) (HIGH WEAR) (SUB FOR AH221387)
15	AH208554	8	Threshing Element	(TINE) (3 PER KIT) (8 KITS USED)
16	H204904	3	Bracket	-
17	19M7783	6	Screw	M10 X 16
18	AH229287	1	Deflector	(GRASS SEED) (SUB FOR AH204624 ) (SUB H224862 AND H204904)
19	AH167742	1	Package Of Parts	-
20	AH171088	1	Package Of Parts	-
21	AH216569	1	Repair Kit	(REAR FLIGHT)
22	H160905	6	Bolt	-
23	28H2490	6	Bushing	0.546" X 0.840" X 9/16"
24	H171638	6	Flange Nut	-
25	AH216570	1	Threshing Element	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR)
26	AH216571	1	Threshing Element	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR)
27	AH215975	1	Kit	(3 PER KIT) (THRESHING CONE TINE)
28	AH222538	1	Wear Plate	(WEAR PLATE) (3 PER KIT) (THRESHING CONE TINE)
28	AH202540	1	Kit	(WEAR PLATE) (3 PER KIT) (THRESHING TINE)
29	AH216014	1	Kit	(3 PER KIT) (THRESHING CONE TINE)
29	AH216016	1	Tine	(3 PER KIT) (THRESHING TINE)
30	AH222539	1	Wear Plate	(WEAR PLATE) (3 PER KIT) (THRESHING CONE TINE)
31	H224862	1	Spider	-
..	BH84427	1	Complete Goods/Ship. Bundle	(THRESHING ELEMENT)
..	BH84428	1	Complete Goods/Ship. Bundle	(THRESHING ELEMENT) (HIGH WEAR)

SEPARATOR CONE REPAIR KITS (HI PERFORMANCE) CONTINUED
