Открытый узел

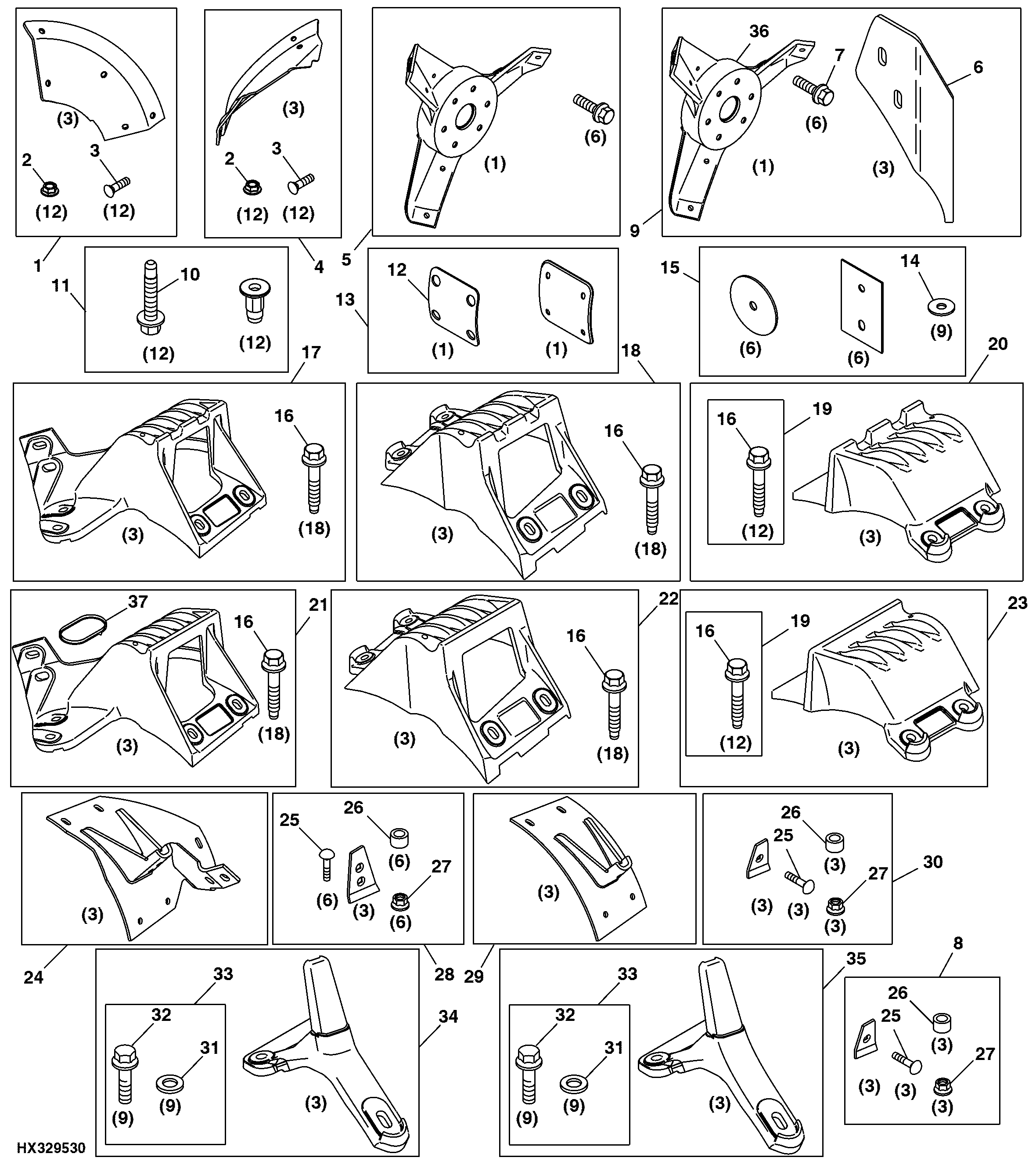

SEPARATOR CONE REPAIR KITS (BULLET ROTOR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH216568	1	Repair Kit	(FRONT FLIGHT)
2	H171638	12	Flange Nut	M12
3	H160905	12	Bolt	-
4	AH216569	1	Repair Kit	(REAR FLIGHT)
5	AH229285	1	Repair Kit	(SPIDER FLIGHT)
6	H204904	3	Bracket	-
7	19M7783	6	Screw	M10 X 16
8	AH222540	1	Wear Plate	(WEAR PLATE) (THRESHING TINE) (STANDARD)
9	AH229287	1	Deflector	(GRASS SEED) (SUB H224862 AND H204904)
10	H208187	12	Screw	M10 X 61
11	AH167741	1	Kit	(CAPSCREW AND RIVNUT)
12	H173621	1	Gasket	-
13	AH161703	1	Cover	(COVER)
14	24M7180	9	Washer	13 X 37 X 3 mm
15	AH161704	1	Weight Kit	(BALANCE WEIGHT)
16	H208187	1	Screw	M10 X 61
17	AH216570	1	Threshing Element	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR) (RICE)
18	AH216571	1	Threshing Element	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR) (RICE)
19	AH171088	1	Package Of Parts	-
20	AH216573	1	Fitting Kit	(THRESHING ELEMENT) (HIGH WEAR) (3 PER KIT) (RICE)
20	AH216572	1	Repair Kit	(THRESHING ELEMENT) (3 PER KIT) (RICE)
21	AH216674	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR) (CORN AND GRAIN)
22	AH216675	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (HIGH WEAR) (CORN AND GRAIN)
23	AH216677	1	Fitting Kit	(THRESHING ELEMENT) (3 PER KIT) (CORN AND GRAIN)
23	AH216678	1	Fitting Kit	(THRESHING ELEMENT) (HIGH WEAR) (3 PER KIT) (CORN AND GRAIN) MARKED H215532
24	AH215975	1	Kit	(THRESHING CONE TINE)
25	H222307	6	Bolt	-
26	28H2490	6	Bushing	0.546" X 0.840" X 9/16"
27	H171638	6	Flange Nut	M12
28	AH222538	1	Wear Plate	(WEAR PLATE) (THRESHING CONE TINE) (FRONT)
29	AH216014	1	Kit	(THRESHING CONE TINE)
29	AH216016	1	Tine	(THRESHING TINE)
30	AH222539	1	Wear Plate	(WEAR PLATE) (THRESHING CONE TINE) (REAR)
31	24M7296	9	Washer	10.500 X 30 X 2.500 mm
32	H208187	9	Screw	M10 X 61
33	AH167742	1	Package Of Parts	-
34	AH208554	8	Threshing Element	(TINE) (8 KITS USED) (3 PER KIT)
34	AH209123	8	Tine	(TINE) (8 KITS USED) (HIGH WEAR) (3 PER KIT)
35	AH228817	8	Tine	(TINE) (8 KITS USED) (3 PER KIT) (HIGH WEAR) (THICK SKIN ROTOR)
36	H224862	1	Spider	-
37	H220563	1	Tie Band	-

SEPARATOR CONE REPAIR KITS (BULLET ROTOR)

Нет текстового описания
