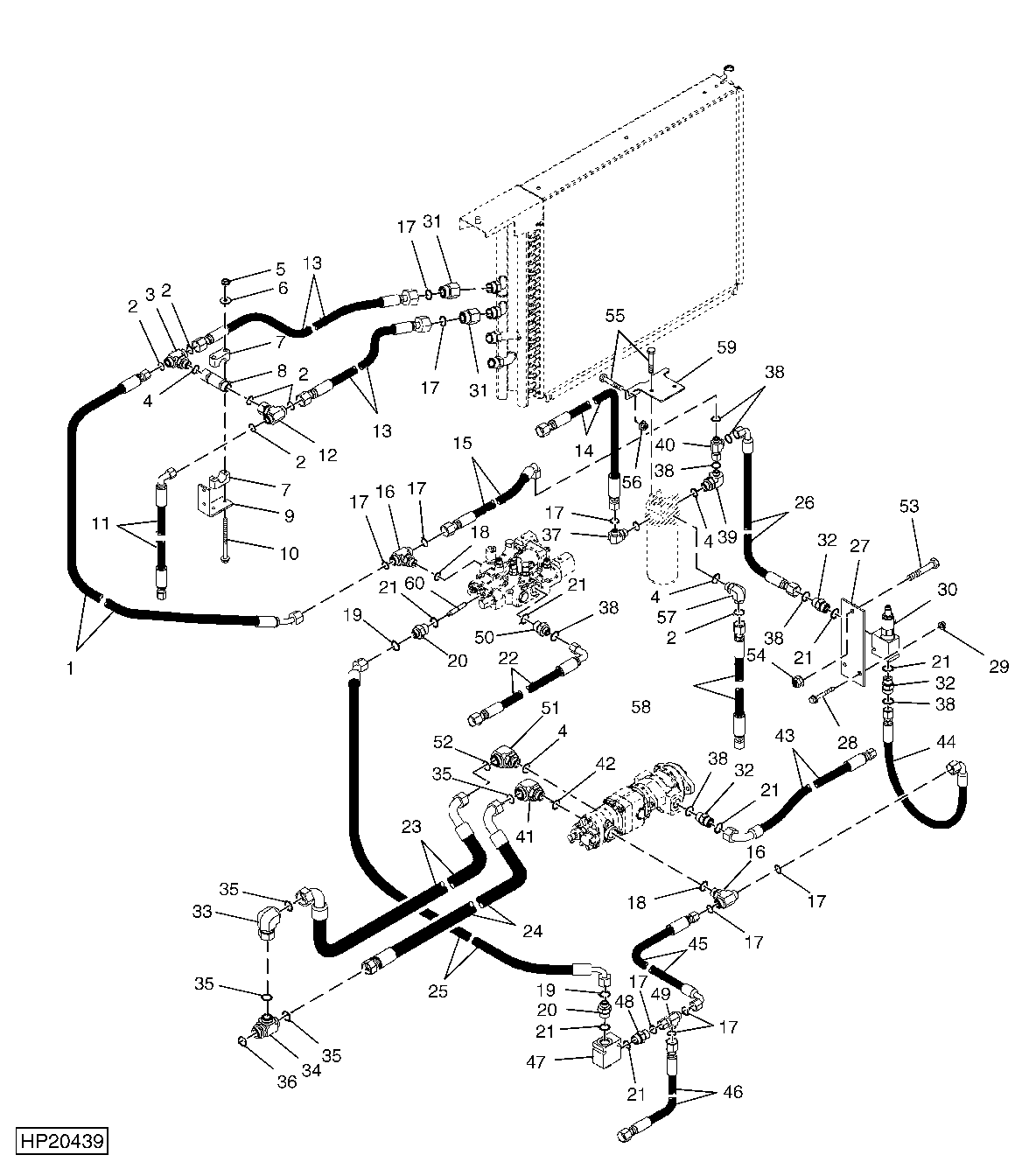

Multi-Speed Feeder House Drive Hydraulic System (730101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH219250	1	Hydraulic Hose	-
2	T77858	1	O-Ring	-
3	38H1019	1	Tee Fitting	-
4	U12547	1	O-Ring	-
5	14M7303	2	Flange Nut	M6
6	24M7139	2	Washer	6.400 X 18 X 1.600 mm
7	N207263	2	Half Clamp	-
8	AH223766	1	Check Valve	-
9	H228316	1	Angle	-
10	19M8145	2	Screw	M6 X 80
11	AH219253	1	Hydraulic Hose	-
12	38H1041	1	Tee Fitting	-
13	AH219249	2	Hydraulic Hose	-
14	AH219243	1	Hydraulic Hose	-
15	DE19867	1	Hydraulic Hose	-
16	38H1018	2	Tee Fitting	-
17	T77932	1	O-Ring	-
18	R26906	1	O-Ring	-
19	T77613	2	O-Ring	-
20	38H1171	2	Adapter Fitting	-
21	R26375	1	O-Ring	-
22	AH230616	1	Hydraulic Hose	-
23	AH224182	1	Hydraulic Hose	-
24	AH227217	1	Hydraulic Hose	-
25	AH226493	1	Hydraulic Hose	-
26	AH219253	1	Hydraulic Hose	-
27	H216531	1	Strap	-
28	19M8321	2	Screw	M6 X 45
29	14M7303	2	Flange Nut	M6
30	AH218493	1	Pressure Relief Valve	-
31	38H1482	2	Reducer	-
32	38H1161	3	Adapter Fitting	-
33	38H1099	1	Elbow Fitting	-
34	38H1028	1	Tee Fitting	-
35	T78612	1	O-Ring	-
36	U13639	1	O-Ring	-
37	38H1404	1	Elbow Fitting	-
38	T77857	1	O-Ring	-
39	38H1013	1	Elbow Fitting	-
40	38H1031	1	Tee Fitting	-
41	38H1053	1	Elbow Fitting	-
42	R29936	1	O-Ring	-
43	AXE16687	1	Hydraulic Hose	SUB FOR AH213402
44	AH223127	1	Hydraulic Hose	-
45	AH226087	1	Hydraulic Hose	-
46	AH229412	1	Hydraulic Hose	-
47	AH226091	1	Check Valve	-
48	38H1317	1	Fitting	-
49	38H1032	1	Tee Fitting	-
50	38H1161	1	Adapter Fitting	-
51	38H1305	1	Elbow Fitting	-
52	T76938	1	O-Ring	-
53	19M7868	1	Screw	M8 X 30
54	14M7298	1	Flange Nut	M8
55	19M7784	4	Screw	M10 X 20
56	14M7296	2	Flange Nut	M10
57	38H1007	1	Elbow Fitting	-
58	AH219247	1	Hydraulic Hose	LGTH = 700 mm, Bypass to Transmission
59	H226923	1	Bracket	-
60	CE20256	1	Pin Fastener	-
