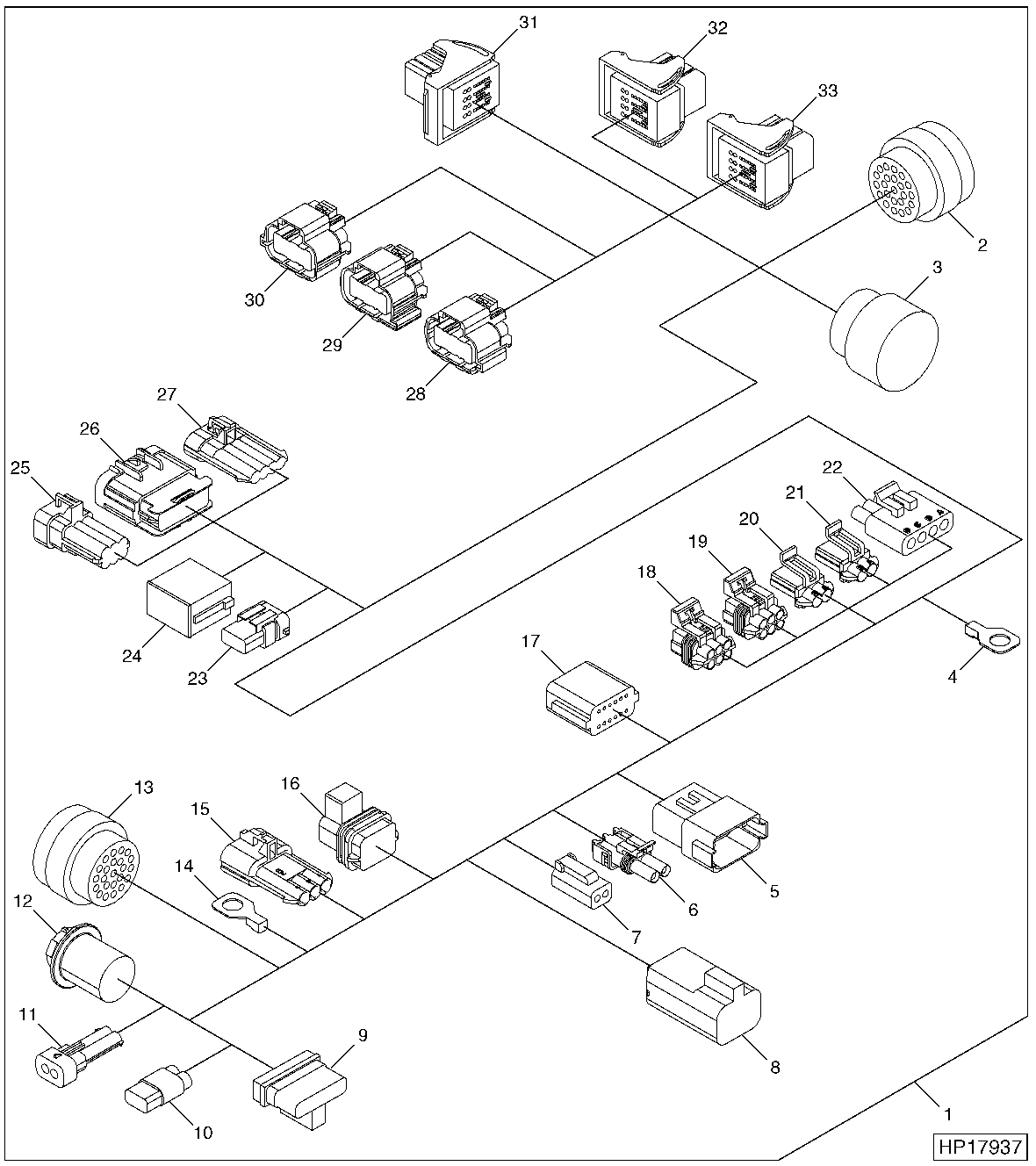

Left Control Unit 2 Main Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE12616	1	Wiring Harness	-
1	AH230517	1	Wiring Harness	SUB FOR AH229230
2	57M8794	1	Elec. Connector Housing	LH Main 2
3	57M9513	1	Elec. Connector Housing	LH Main
4	57M9195	1	Elec. Connector Terminal	Ground
5	57M7633	1	Electrical Connector Assy	Valve
6	57M9516	1	Elec. Connector Housing	Backup Alarm Switch
7	57M8021	1	Electrical Connector Assy	Hydro Charge Pressure
8	57M7697	1	Electrical Connector Assy	Chopper
9	57M7301	1	Elec. Connector Housing	Warning Light Extension
10	57M7344	1	Elec. Connector Housing	Left Rear Discharge Light
11	57M7256	1	Elec. Connector Housing	Backup Alarm
12	57M8864	1	Electrical Lamp Socket	LH Tail/Brake Light
13	57M8794	1	Elec. Connector Housing	VCM
14	57M9195	1	Elec. Connector Terminal	Ground
15	57M7305	1	Elec. Connector Housing	Rekord Chopper
16	57M7696	1	Elec. Connector Housing	Chopper Vane Angle Adjust
17	-	1	Part 18	RSA Harness
18	57M7260	1	Elec. Connector Housing	Sieve Switch
19	57M7260	1	Elec. Connector Housing	Chaffer Switch
20	57M7254	1	Elec. Connector Housing	Gullwing Switch
21	57M7254	1	Elec. Connector Housing	Shoe Switch
22	RE12365	1	Electrical Connector Assy	Chopper Folding Switch
23	57M8128	1	Electrical Connector Assy	LH Shoe Light
24	57M9509	1	Elec. Connector Housing	Hillmaster
25	57M7263	1	Elec. Connector Housing	Trailer Extension
26	-	1	Part 27	SLS Harness
27	57M7839	1	Electrical Connector Assy	Two Speed Four Wheel Drive
28	-	1	Part 29	LPM2 J3
29	-	1	Part 30	LPM2 J2
30	-	1	Part 31	LPM2 J1
31	57M8519	1	Elec. Connector Housing	LCU2 J1
32	-	1	Part 33	LCU2 J2
33	57M8523	1	Elec. Connector Housing	LCU2 J3

Left Control Unit 2 Main Wiring Harness
