Countershaft and Sheave for Multi Speed Feeder House Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH225466	1	U-Joint With Shaft & Shield	ORDER AXE44236
2	H228944	2	Universal Joint Yoke	USE WITH AH225466
3	AH202474	1	Cross And Bearing Assembly	USE WITH AH225466
4	19M7817	4	Screw	M12 X 70
5	14M7401	4	Lock Nut	M12
6	H226813	1	Shaft	ORDER AXE44236
7	14M7291	4	Flange Nut	M16
8	19M7866	1	Screw	M8 X 20
9	AH80916	1	Clip	-
10	19M7837	2	Screw	M12 X 110
11	AH213902	1	Bearing With Housing	-
12	19M7793	4	Screw	M16 X 40
13	AH121005	1	Hose	LGTH = 1200 mm
14	H158333	1	Pulley	-
15	24H1668	1	Washer	1-17/64" X 2-1/4" X 0.134"
16	H165447	1	Lock Nut	-
17	14M7299	2	Flange Nut	M12
18	19M7835	1	Screw	M10 X 35
18	19M7785	2	Screw	M10 X 25
19	11M7021	1	Cotter Pin	4 X 25 mm
20	24M7047	1	Washer	13 X 24 X 2.500 mm
21	AH202631	1	Arm	-
22	H171061	2	Bushing	-
23	AA5607R	2	Seal	-
24	24M7091	1	Washer	26 X 44 X 4 mm
25	P46402	1	Snap Ring	-
26	H118948	1	Hook Bolt	-
27	H129207	1	Pivot	-
28	H219149	1	Gauge	-
29	14M7275	1	Nut	M12
30	24M7180	1	Washer	13 X 37 X 3 mm
31	H26552	1	Compression Spring	-
32	-	1	Part 33	CTL 70 mm, MF TY22326
33	19M7794	1	Screw	M16 X 50
34	AH97031	1	Idler	-
35	AH212002	1	Pin	-
36	H214619	1	Bracket	-
37	H158691	1	Clip	-
38	14M7296	4	Flange Nut	M10
39	26H105	1	Shaft Key	3/8" X 2-1/8", USE WITH H226813
40	14M7298	1	Flange Nut	M8
41	AXE44236	1	Universal Joint With Tube	-
42	AXE45002	1	Cross And Bearing Assembly	USE WITH AXE44236
43	HXE85912	1	Universal Joint Yoke	USE WITH AXE44236

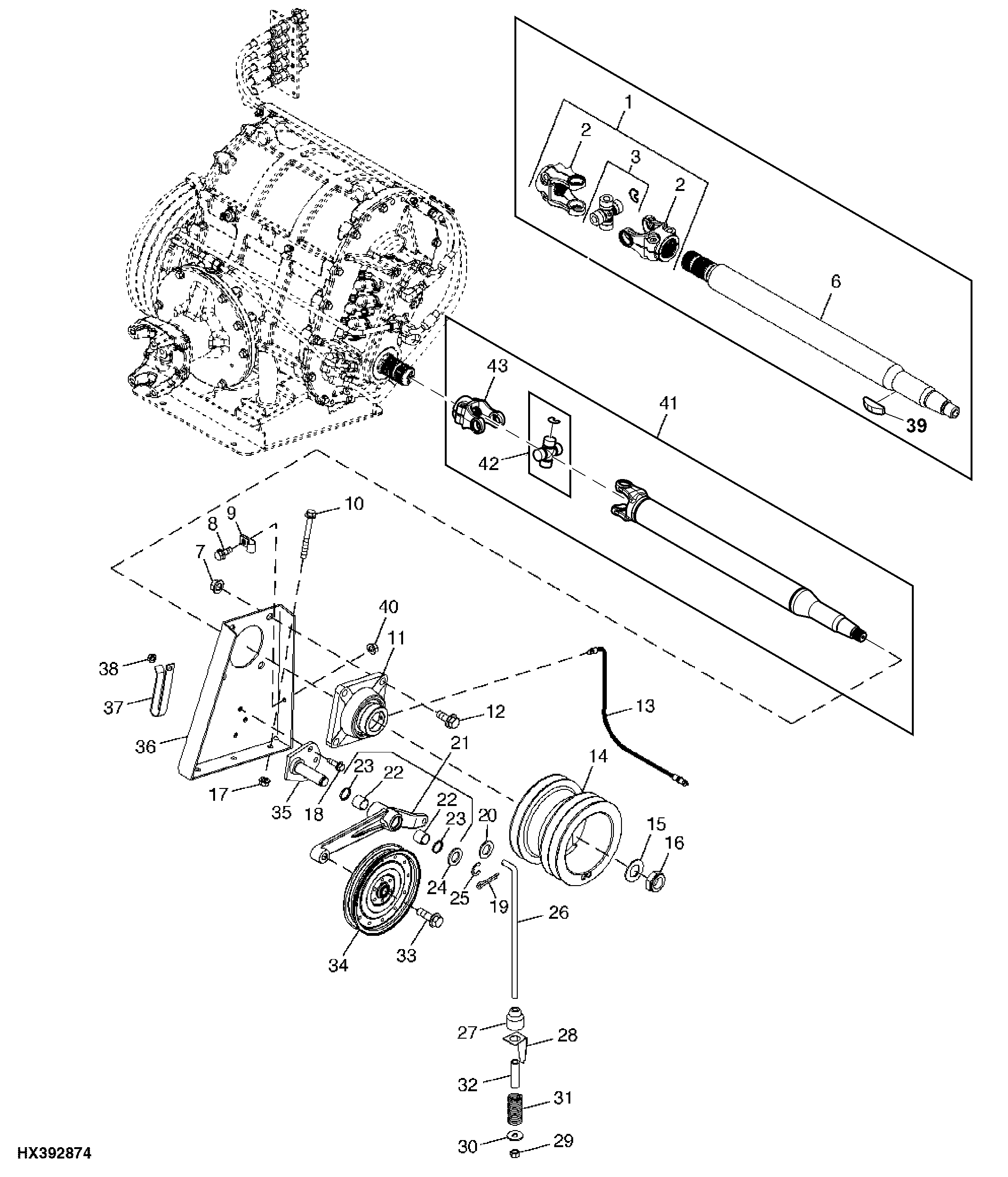

Countershaft and Sheave for Multi Speed Feeder House Drive
