Primary Countershaft And Sheave ( - 710700)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H214618	1	Shaft	-
1	H161599	1	Shaft	(SUB H214618, H214619, AH213902, (4) 19M7793 AND (4) 14M7291)
2	26H105	2	Shaft Key	3/8" X 2-1/8"
3	14M7299	1	Flange Nut	M12
4	14M7296	3	Flange Nut	M10
6	AH212002	1	Pin	(SUB FOR AH156051)
7	AA5607R	2	Seal	-
8	H171061	2	Bushing	-
9	AH202631	1	Arm	(SUB FOR AH148072)
10	24M7091	1	Washer	26 X 44 X 4 mm
11	P46402	1	Snap Ring	-
12	AH97031	1	Idler	-
13	19M7794	1	Screw	M16 X 50
14	19M7785	3	Screw	M10 X 25
15	AH121005	1	Hose	-
16	H171472	1	Adapter Fitting	-
17	H160465	1	Pressed Flanged Housing	-
19	H160466	1	Pressed Flanged Housing	-
20	03M7198	4	Bolt	M12 X 30, (USE WITH H161599)
20	19M7793	4	Screw	M16 X 40, (USE WITH H214618)
21	JD8579	1	Eccentric Locking Collar	-
22	H158333	1	Pulley	-
22	H178006	1	Pulley	(EDIBLE BEAN)
23	24H1668	1	Washer	1-17/64" X 2-1/4" X 0.134"
24	H165447	1	Lock Nut	-
25	AH80916	1	Clip	-
26	14M7298	1	Flange Nut	M8
27	19M7866	1	Screw	M8 X 20
28	E12379	1	Nut	-
29	H118948	1	Hook Bolt	-
30	H129207	1	Pivot	-
31	H127872	1	Gauge	-
32	-	1	Part 37	70 MM, (CUT FROM TY22326)
33	H26552	1	Compression Spring	-
34	24M7180	1	Washer	13 X 37 X 3 mm
35	14M7275	1	Nut	M12
36	24M7047	1	Washer	13 X 24 X 2.500 mm
37	11M7021	1	Cotter Pin	4 X 25 mm
38	19M7837	2	Screw	M12 X 110
39	14M7299	4	Flange Nut	M12, (USE WITH H161599)
39	14M7291	4	Flange Nut	M16, (USE WITH H214618)
..	BH84034	1	Complete Goods/Ship. Bundle	(EDIBLE BEAN ELEVATOR SLOW DOWN DRIVE)
5A	H201607	1	Bracket	(USE WITH H161599)
5B	H214619	1	Bracket	(USE WITH H214618)
18A	JD9339	1	Ball Bearing	(USE WITH H161599)
18B	AH213902	1	Bearing With Housing	(USE WITH H214618)

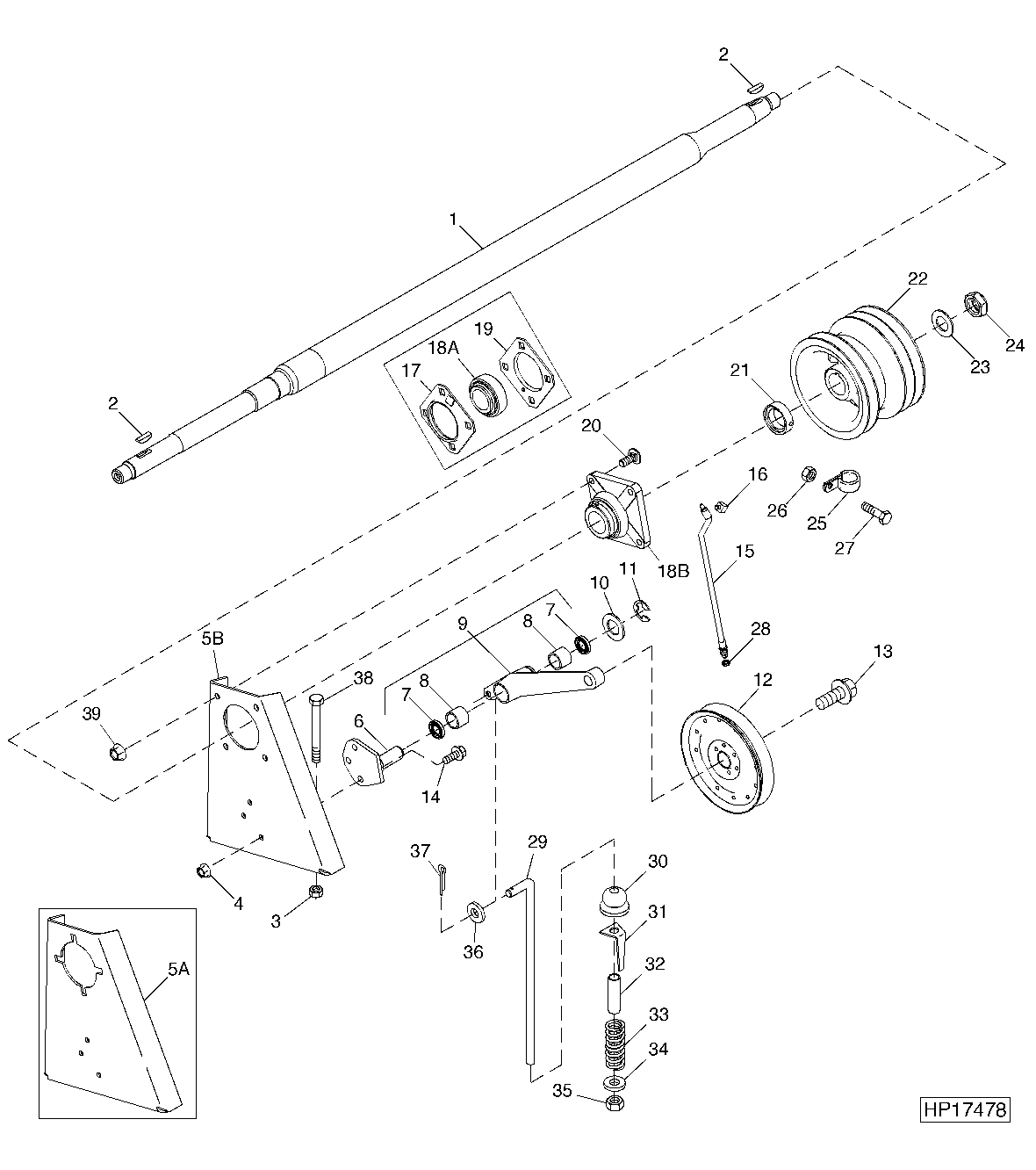

Primary Countershaft And Sheave ( - 710700)
