FRONT DRIVE SHAFT, SHEAVE AND MOUNTINGS (HIGH TORQUE VARIABLE DRIVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7864	2	Screw	M8 X 12
2	H220691	1	Lock Plate	-
3	H220662	1	Nut	-
4	H213749	1	Washer	-
5	03M7198	2	Bolt	M12 X 30
6	19M7826	2	Screw	M16 X 70
7	14M7299	2	Flange Nut	M12
8	H148132	4	Bushing	-
9	H148133	4	Retainer	-
10	H163726	5	Washer	-
11	T55761	1	Support	-
12	19M7845	1	Screw	M16 X 90
13	Z64078	2	Spacer	-
14	R62502	1	Support	-
15	H97410	1	Washer	-
16	H95417	1	Spacer	-
17	JD9202	1	Ball Bearing	-
18	H178565	1	Bracket	-
19	H234410	1	Shaft	(SUB FOR H202940)
20	03M7193	3	Bolt	M10 X 35
21	14M7296	3	Flange Nut	M10
22	24M7241	4	Washer	17 X 34 X 4 mm
23	JD9201	1	Eccentric Locking Collar	-
24	H93927	1	Housing	-
25	AH232850	1	Drive Sprocket	(HI SPEED) (SUB FOR AH206133 OR AH218403)
25	AH232851	1	Drive Sprocket	(SUB FOR AH203076)
26	AH219370	1	Plate	-
27	H223849	1	Ring	(SUB FOR T61327)
28	AH220459	1	Sensor Kit	(Torque Sensing Cams)
29	H219824	6	Screw	-
30	-	1	Part 31	-
31	H214051	1	Snap Ring	-
32	AH213408	1	Seal	-
33	JD7759	2	Lubrication Fitting	-
34	AH219367	1	Half Sheave	-
35	-	1	Part 36	-
36	HXE45928	1	V-Belt	SUB FOR H220911
37	19M7513	8	Cap Screw	M8 X 30
38	AH213156	1	Seal	-
39	T41326	1	O-Ring	-
40	H214052	1	Snap Ring	-
41	H223211	1	Half Sheave	-
42	AH219379	1	Plate	-
43	H219776	1	Compression Spring	-
44	AH219369	1	Pulley	-
..	BH84459	1	Complete Goods/Ship. Bundle	(FEEDER HOUSE HI SPEED DRIVE)

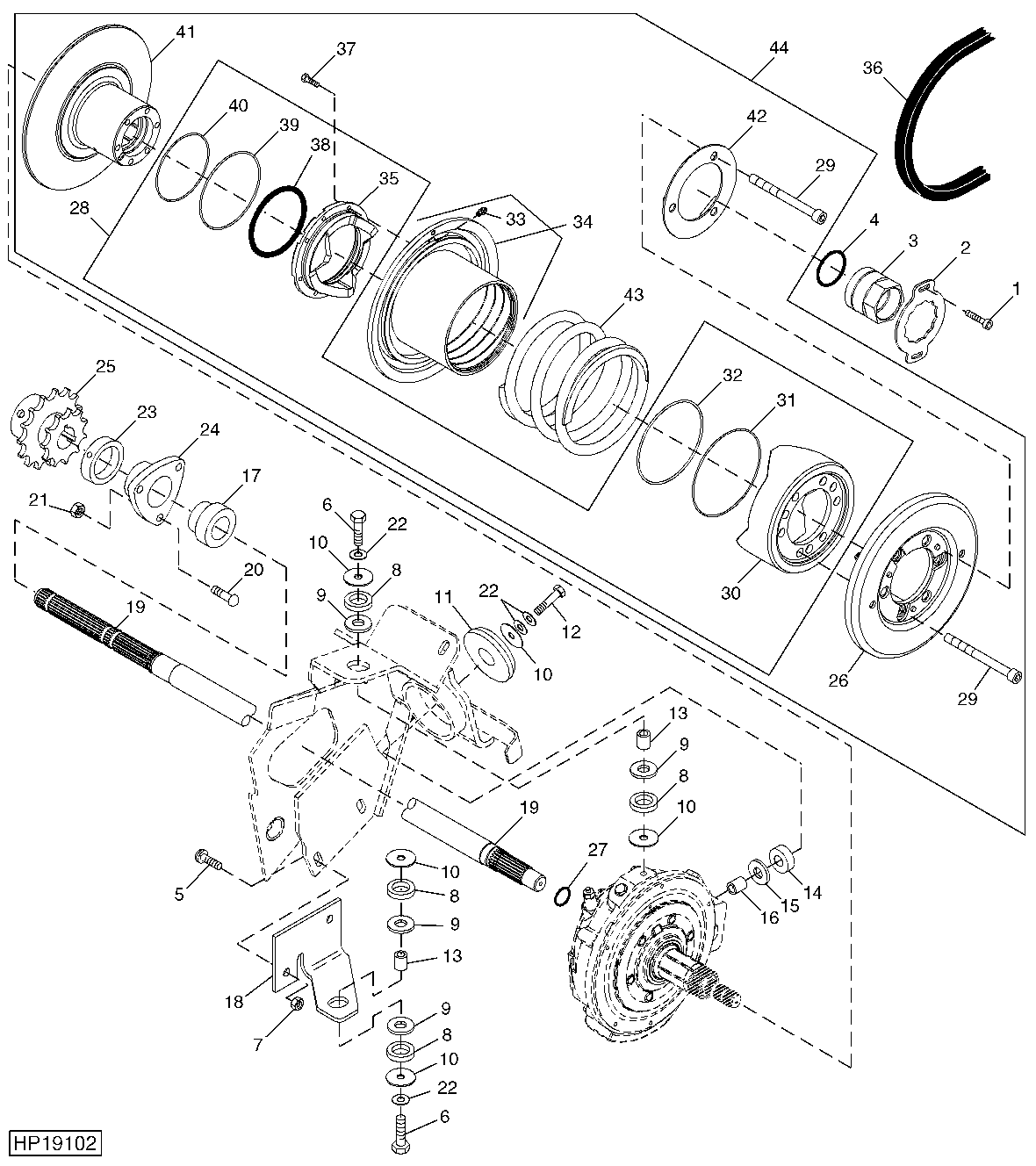

FRONT DRIVE SHAFT, SHEAVE AND MOUNTINGS (HIGH TORQUE VARIABLE DRIVE)
