HYDRAULIC UNLOADING AUGER (LONG),DRIVE [05F19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

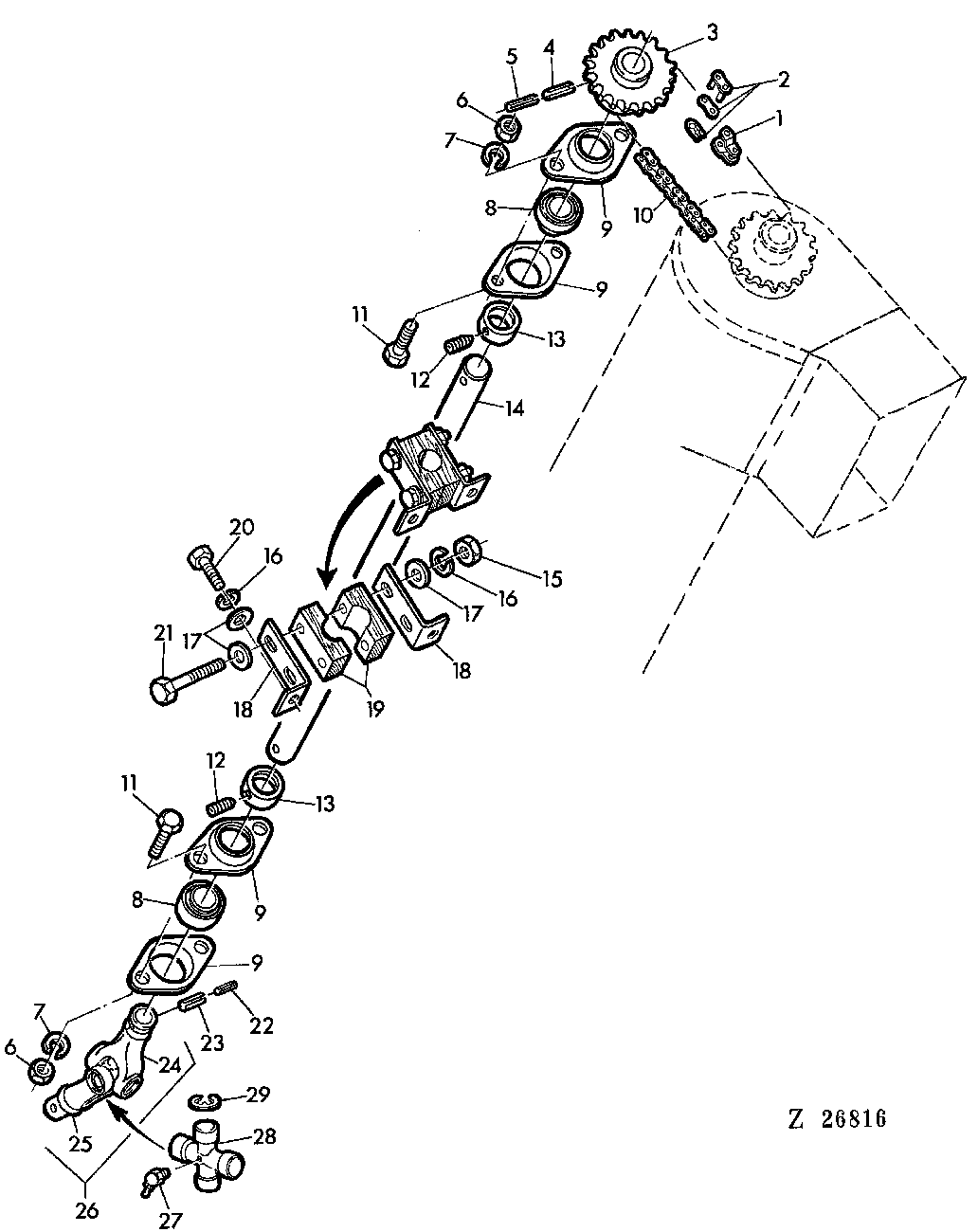

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ36221	1	CHAIN LINK	(FOR AZ36600)
1	AL14908	1	CHAIN LINK	(FOR AZ32303)
2	AZ36220	1	CHAIN LINK	(FOR AZ36600)
2	AL14211	1	CHAIN LINK	(FOR AZ32303)
3	Z11152	1	CHAIN SPROCKET	Z = 18
4	34M7070	1	Spring Pin	10 X 45 MM
5	34M7043	1	Spring Pin	6 X 45 MM
6	14M7140	1	Nut	M10
7	12M7013	1	LOCK WASHER	10 MM
8	JD39103	2	BALL BEARING	-
9	Z30026	4	PRESSED FLANGED HOUSING	-
10	AZ26761	1	LINK CHAIN	L = 37, INCL KEYS 1,2
10	AZ36600	1	ROLLER CHAIN	(A) L = 36, INCL KEYS 1,2 (SUB FOR AZ32303)
11	19M7166	1	Cap Screw	M10 X 20
12	AZ19844	2	SET SCREW	KIT
13	AZ10045	2	Eccentric Locking Collar	INCL KEY 12
14	Z37222	1	SHAFT	(ORD AZ38318, Z11683, Z48033, 34M7048, 34M7050)
15	14M7029	1	Nut	M8
16	12M7008	1	LOCK WASHER	8 MM
17	24M7036	1	Washer	9 MM
18	Z33525	4	HOLDER	-
19	Z33527	4	BEARING	-
20	19M7297	1	Cap Screw	M8 X 12
21	19M7270	1	Cap Screw	M8 X 65
22	34M7043	1	Spring Pin	6 X 45 MM
23	34M7070	1	Spring Pin	10 X 45 MM
24	Z11457	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
24	Z10854	1	UNIVERSAL JOINT YOKE	-
24	Z11268	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
25	Z11456	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
25	Z10948	1	UNIVERSAL JOINT YOKE	-
25	Z11269	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
26	AZ32225	1	UNIVERSAL JOINT	ASSY, INCL KEYS 24,25,27-29 (SUB FOR AZ28867)
26	AZ28867	1	UNIVERSAL JOINT	ASSY, INCL KEYS 24,25,27-29 (ORD AZ32225)
26	AZ22438	1	UNIVERSAL JOINT	ASSY, INCL KEYS 24,25,27-29 (ORD AZ32225)
27	58M5577	1	Lubrication Fitting	8 X 1 MM (FOR AZ28867)
27	58M7010	1	Lubrication Fitting	(FOR AZ32225)
28	AZ32226	1	SPIDER	(FOR AZ32225)
28	AZ21542	1	SPIDER	(FOR AZ22438)
28	AZ28866	1	SPIDER	(FOR AZ28867)
29	Z32725	1	SNAP RING	(FOR AZ28867)
29	Z43195	4	SNAP RING	(FOR AZ32225)
