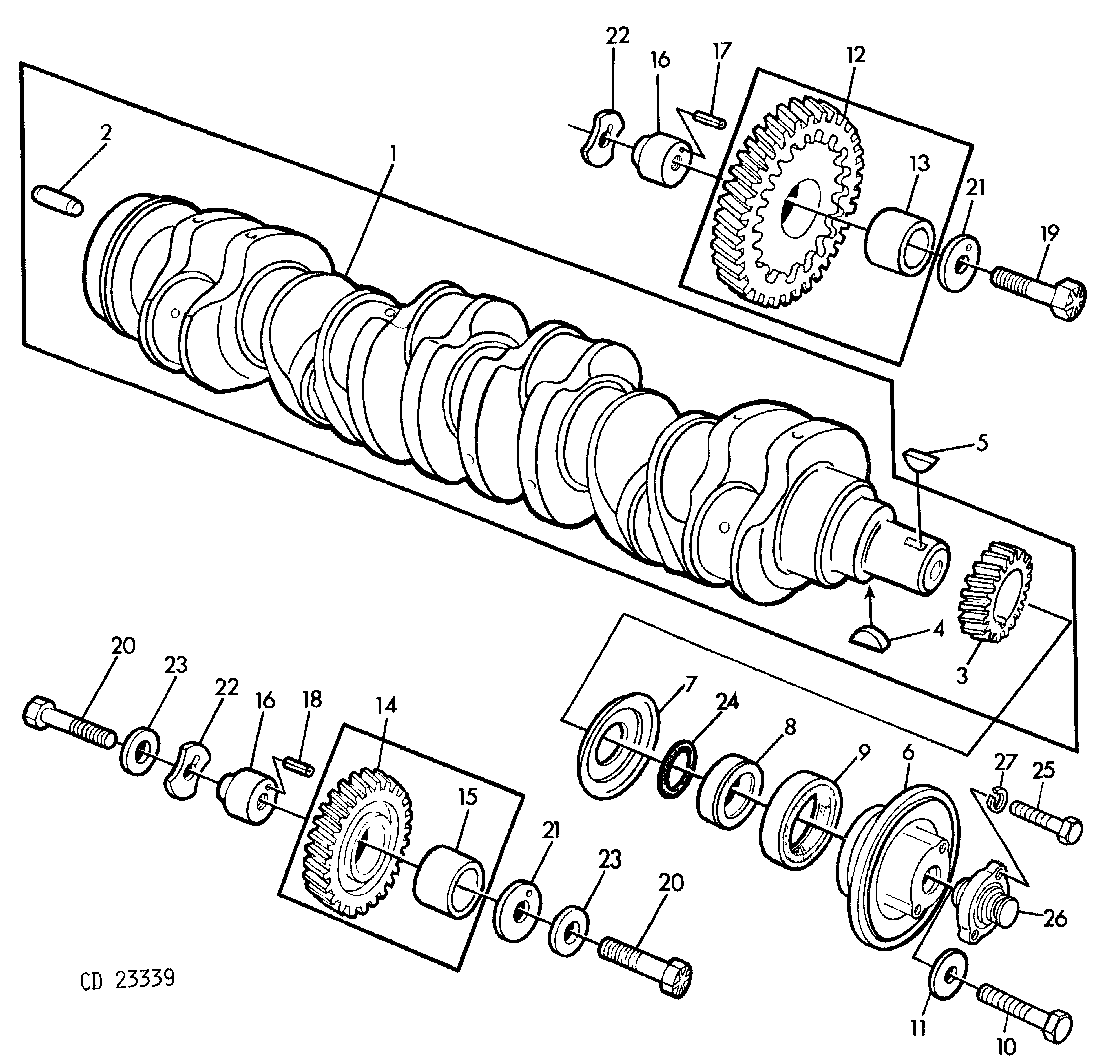

6359 CRANKSHAFT/TIMING GEARS [01A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT22562	1	CRANKSHAFT	ASSY, INCL KEYS 2-4
2	A120R	1	Dowel Pin	(SUB FOR T26565)
3	T20094	1	Helical Gear	Z = 24
4	26H72	1	Shaft Key	1/8" X 5/8"
5	26H27	1	Shaft Key	5/16" X 1-5/8"
6	AR74368	1	PULLEY WITH DAMPENER	-
7	T20046	1	Oil Slinger	-
8	T30413	1	WEAR RING	(ORD R81989 W/ H35244)
8	R81989	1	Sleeve	-
9	AR67942	1	Seal	FRONT
10	19H1721	1	CAP SCREW	1/2" X 1-1/2" (ORD CD16045, 19H2473,
10	19H2473	1	Cap Screw	1/2" X 1-3/4" (FOR CD16045)
11	T20217	1	Washer	(ORD CD16045, 19H2473)
11	CD16045	1	Spacer	(FOR 19H2473)
12	AR91660	1	Gear	UP, Z = 55, ASSY, INCL KEY 13 (SUB FOR AT18009)
13	T20034	1	Bushing	-
14	AT24252	1	GEAR	LOW, ASSY, INCL KEY 15, Z = 45
15	T26321	1	Bushing	-
16	R89825	2	PIN	(SUB FOR T26323)
17	34H283	1	Spring Pin	3/16" X 1-1/8"
18	34H286	1	Spring Pin	3/16" X 1-1/2"
19	T26327	1	Screw	-
20	T26325	2	SCREW	-
21	T26326	2	THRUST WASHER	-
22	T26324	2	THRUST WASHER	-
23	R76126	2	Washer	(SUB FOR R42364)
24	H35244	1	Ring	(FOR R81989)
25	19H2552	2	CAP SCREW	3/8" X 1-1/8"
26	R61351	1	PULLEY	-
27	12H304	2	Lock Washer	3/8"

6359 CRANKSHAFT/TIMING GEARS [01A20]
