Reverser Gear Case, High Torque Feeder House Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66197	6	Thrust Washer	-
2	CE18522	3	Gear	Z = 14 / 29
3	Z61813	3	Pin	-
4	H871R	3	Ball	-
5	R33088	3	Washer	-
6	R39081	1	Snap Ring	-
7	19M7166	6	Cap Screw	M10 X 20
8	Z61817	174	Pin	-
9	AH215108	2	Needle Bearing	-
10	H234410	1	Shaft	SUB FOR H202940
10	H234556	1	Shaft	-
10	HXE10467	1	Shaft	-
11	H213511	1	Gear	Z = 26
12	AH216871	1	Seal	-
13	H213514	1	Shaft	-
13	CE19358	1	Shaft	-
14	H213513	1	Cover	-
15	AH213106	1	Ball Bearing	-
16	H213596	1	Snap Ring	-
17	AH215259	1	Seal	-
18	H213510	1	Housing	-
18	CE19356	1	Housing	-
19	H156095	1	Housing	-
20	R26375	1	O-Ring	-
21	AZ49371	1	Ball Bearing	-
22	Z62549	1	Snap Ring	-
23	H75358	1	Dowel Pin	-
24	Z62147	1	Shifter	-
25	H213512	1	Gear	Z = 41
26	19M7165	3	Cap Screw	M8 X 55
27	12M7065	3	Lock Washer	8 mm
28	H224450	1	Cap	-
29	Z70693	1	Seal	-
30	19M7810	6	Screw	M10 X 80
31	AH167179	1	Dipstick	-
32	H173057	1	Spacer	-
33	R26906	1	O-Ring	-
34	CE18835	1	Housing	-
35	DE32247	1	Yoke With Shaft	SUB FOR AZ55776
36	M800578	1	Ball Bearing	-
37	H165464	1	Spur Gear	Z = 19
38	JD7678	1	Ball Bearing	-
39	H165463	1	Bearing	-
40	M1007T	1	Snap Ring	-
41	U10776	1	O-Ring	-
42	H82233	1	Bushing	-
43	H82232	1	Washer	-
44	H82234	1	Plate	-
45	AH128528	1	Rotor	-
46	16M2556	3	Rivet	8 X 45 mm
47	CE18524	1	Ring Gear	-
48	H223849	1	Ring	-
49	Z70694	1	Seal	-
50	Z70692	1	Piston	-
51	19M7407	1	Cap Screw	M8 X 25
52	Z70695	1	Compression Spring	-
53	R41339	1	Shim	-
54	15M7032	1	Pipe Plug	-
55	19M7786	5	Screw	M10 X 30
56	12M7022	1	Lock Washer	8.200 mm
57	AH208250	1	Piston	-
58	R39112	2	Fitting	-
59	CE18531	1	Seal	-
60	AH229778	1	Drain Plug	-
61	R27218	1	Fitting Plug	-
62	R26448	1	O-Ring	-
63	T22828	1	O-Ring	-
..	AH225334	1	Gear Case	-
..	AH232617	1	Gear Case	-

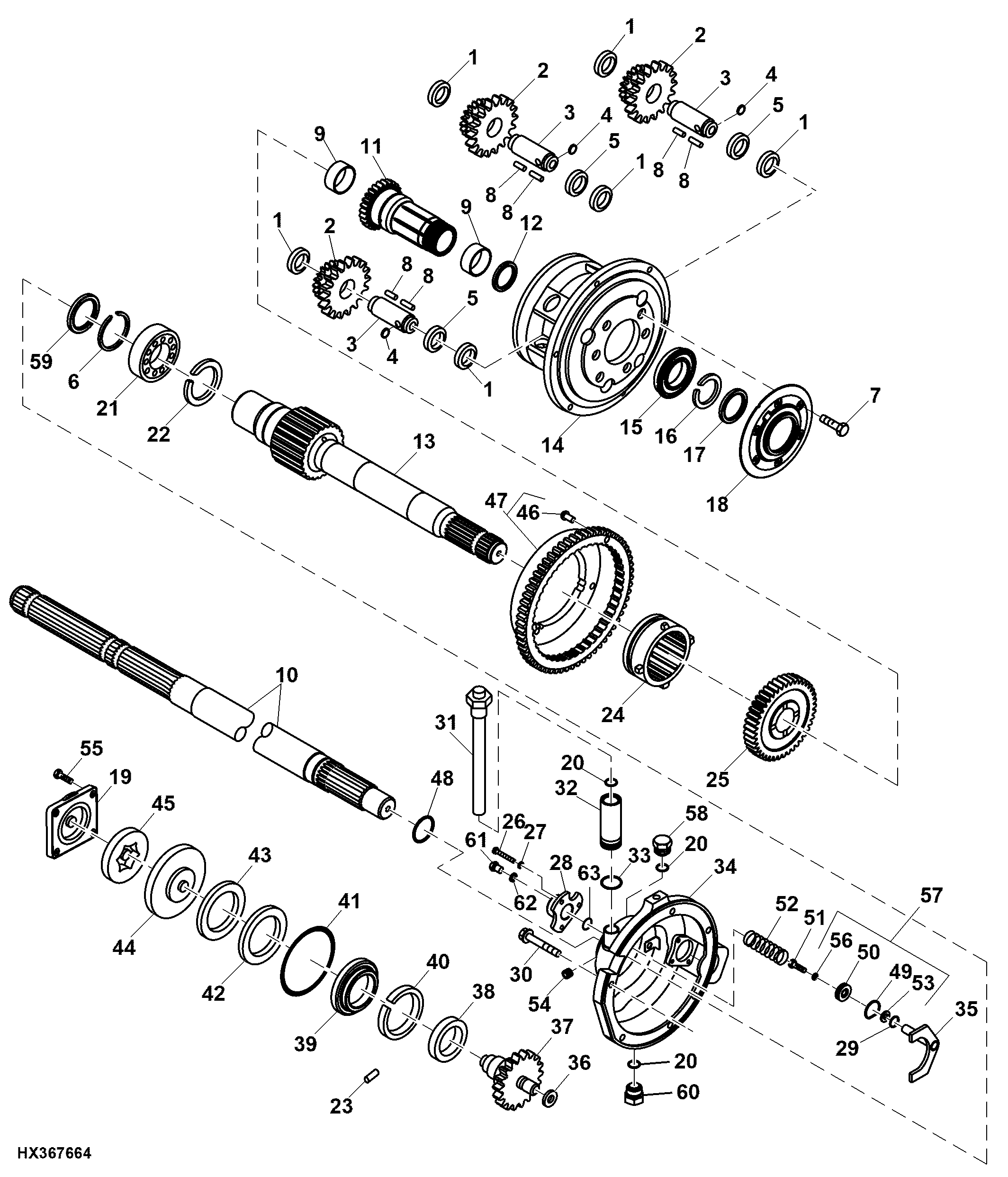

Reverser Gear Case, High Torque Feeder House Drive

Нет текстового описания
