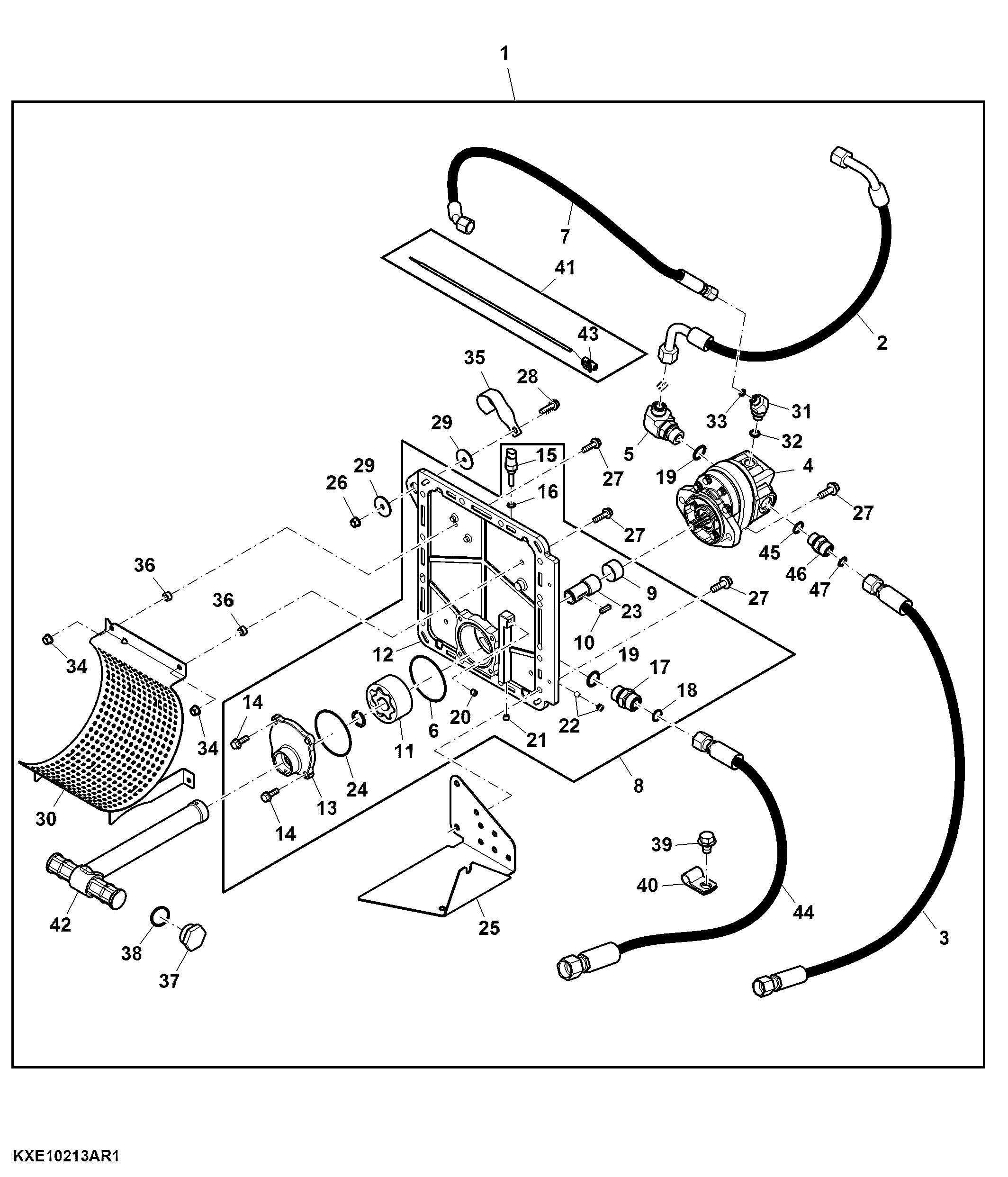

ProDrive™ Transmission Front Pump Cover, Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KXE10213	1	Pump Kit	-
2	AXE51790	1	Hydraulic Hose	LGTH = 1325 mm, SUB FOR AXE13208
3	AXE13209	1	Hydraulic Hose	LGTH = 2265 mm
4	AXE15516	1	Hydraulic Motor	-
4	AXE15959	1	Seal Kit	-
5	38H5166	1	Elbow Fitting	-
6	E65288	1	O-Ring	-
7	AXE24877	1	Hydraulic Hose	-
8	AXE31655	1	Hydraulic Pump	-
9	CE20818	1	Bushing	-
10	CE21545	1	Shaft Key	-
11	DE20913	1	Rotor	-
12	DE30596	1	Cover	SUB FOR CE21614, ORDER DE30656
12	DE30656	1	Cover	INCLUDES CE20818
13	CE21615	1	Housing	-
14	19M7867	4	Screw	M8 X 25
15	AH156144	1	Hydr.Oil Temperature Sensor	-
16	R26286	1	O-Ring	-
17	38H5005	1	Adapter Fitting	-
18	T77858	1	O-Ring	-
19	51M7047	1	O-Ring	23.600 X 2.900 mm
20	CE20019	1	Orifice	-
21	CE20083	1	Fitting	-
22	-	2	Part 24	-
23	CE30590	1	Hub	-
24	CE30468	1	O-Ring	-
25	HXE50854	1	Shield	-
26	14M7298	1	Flange Nut	M8
27	19M7786	14	Screw	M10 X 30
28	19M7868	5	Screw	M8 X 30
29	24H1291	1	Washer	21/64" X 1-15/32" X 7/64"
30	AXE31717	1	Deflector	-
31	38H5154	1	Elbow Fitting	-
32	51M7042	1	O-Ring	13.300 X 2.200 mm
33	T77613	1	O-Ring	-
34	H137328	1	Lock Nut	-
35	H218743	1	Clip	-
36	N381146	4	Bushing	-
37	R39741	1	Drain Plug	-
38	U13639	4	O-Ring	-
39	19M7864	1	Screw	M8 X 12
40	AH76882	1	Clip	-
41	AXE31787	1	Wiring Harness	-
42	CE22002	1	Screen	-
43	57M7850	1	Elec. Connector Housing	-
43	57M7830	1	Elec. Connector Terminal	-
44	AXE10156	1	Hydraulic Hose	LGTH = 2155 mm
45	51M7045	1	O-Ring	19.300 X 2.200 mm
46	38H5004	1	Adapter Fitting	-
47	T77932	1	O-Ring	-
