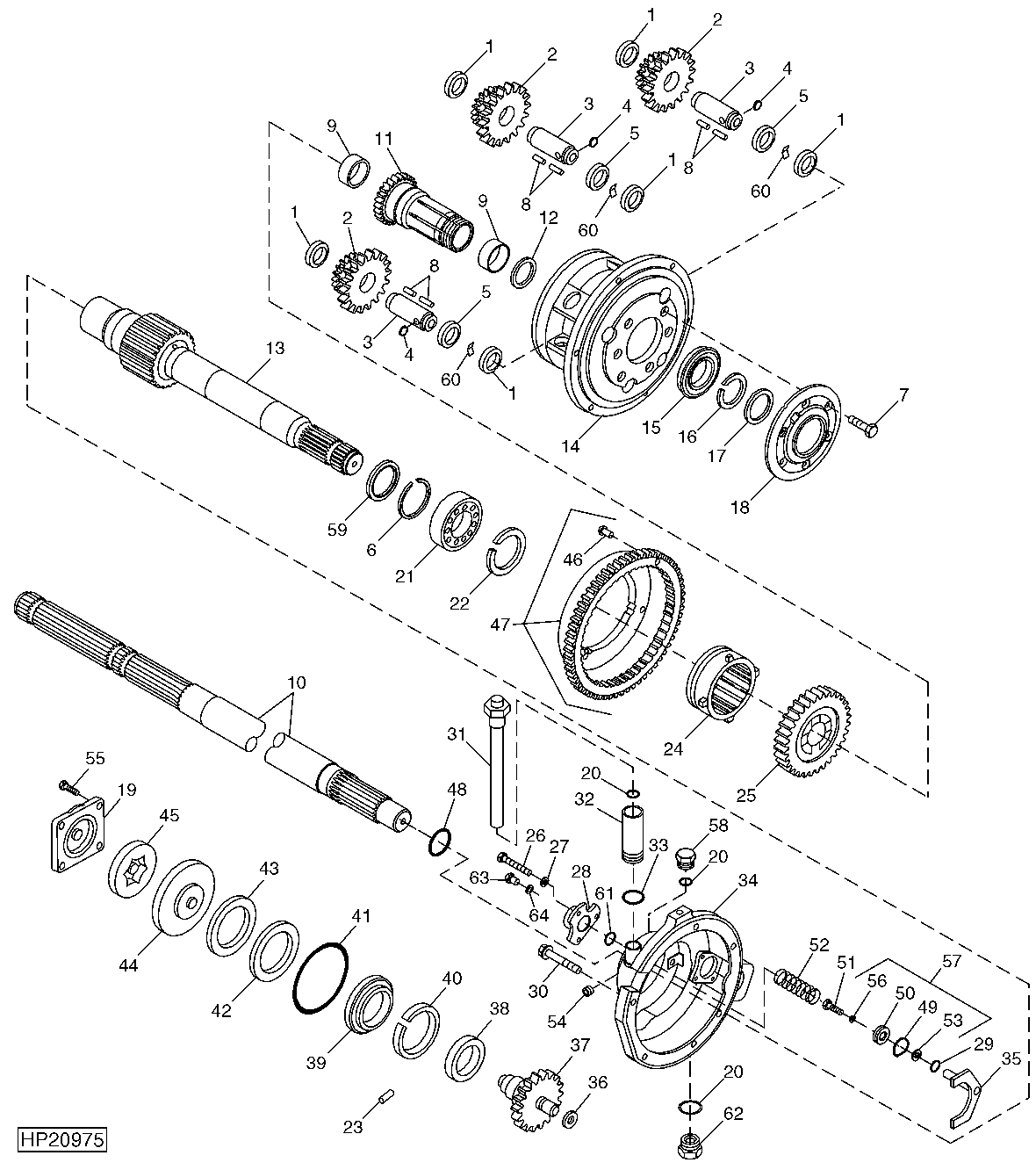

Multi Speed Reverser Gear Box (High Torque ) (730101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66197	6	Thrust Washer	(WITHOUT PUMP)
1	CE20017	6	Lock Washer	(WITH PUMP)
2	CE19360	3	Gear	(WITH PUMP) Z=14
2	CE18522	3	Gear	(WITHOUT PUMP)
3	Z61813	3	Pin	(WITHOUT PUMP)
3	CE19357	3	Shaft	(WITH PUMP) Z=14/26
4	H871R	3	Ball	-
5	CE19401	3	Spacer	(WITH PUMP)
5	R33088	3	Washer	(WITHOUT PUMP)
6	R39081	1	Snap Ring	-
7	19M7166	6	Cap Screw	M10 X 20
8	Z61817	174	Pin	(WITHOUT PUMP)
8	CE19402	174	Needle Roller	((6 SETS OF 29)) (WITH PUMP)
9	AH215108	2	Needle Bearing	-
10	H234556	1	Shaft	-
10	HXE10467	1	Shaft	-
11	CE19355	1	Gear	(WITH PUMP) Z=26
11	H213511	1	Gear	(WITHOUT PUMP) Z=26
12	AH216871	1	Seal	-
13	CE19358	1	Shaft	-
14	H213513	1	Cover	(WITHOUT PUMP)
14	CE20016	1	Support	(WITH PUMP)
15	AH213106	1	Ball Bearing	-
16	H213596	1	Snap Ring	-
17	AH215259	1	Seal	-
18	CE19356	1	Housing	-
19	H174445	1	Cover	-
20	R26375	1	O-Ring	-
21	AZ49371	1	Ball Bearing	-
22	Z62549	1	Snap Ring	-
23	H75358	1	Dowel Pin	-
24	CE19528	1	Shifter	(WITH PUMP)
24	Z62147	1	Shifter	(WITHOUT PUMP)
25	CE19529	1	Gear	(WITH PUMP) Z=41
25	H213512	1	Gear	(WITHOUT PUMP) Z=41
26	19M7165	3	Cap Screw	M8 X 55
27	12M7065	3	Lock Washer	8 mm
28	H224450	1	Cap	-
29	Z70693	1	Seal	-
30	19M7810	6	Screw	M10 X 80
31	AH167179	1	Dipstick	-
32	H173057	1	Spacer	-
33	R26906	1	O-Ring	-
34	CE18835	1	Housing	-
35	DE32247	1	Yoke With Shaft	SUB FOR AZ55776
36	M800578	1	Ball Bearing	-
37	H165464	1	Spur Gear	-
38	JD7678	1	Ball Bearing	-
39	H165463	1	Bearing	-
40	M1007T	1	Snap Ring	-
41	U10776	1	O-Ring	-
42	H82233	1	Bushing	-
43	H82232	1	Washer	-
44	H82234	1	Plate	-
45	AH128528	1	Rotor	-
46	16M2556	3	Rivet	8 X 45 mm
47	DE19862	1	Ring Gear	(WITH PUMP)
47	CE18524	1	Ring Gear	(WITHOUT PUMP)
48	T22828	1	O-Ring	(USE WITH HXE10467)
48	H223849	1	Ring	(USE WITH H234556)
49	Z70694	1	Seal	-
50	Z70692	1	Piston	-
51	19M7407	1	Cap Screw	M8 X 25
52	Z70695	1	Compression Spring	-
53	R41339	1	Shim	-
54	15M7032	1	Pipe Plug	-
55	19M7786	5	Screw	M10 X 30
56	12M7022	1	Lock Washer	8.200 mm
57	AH208250	1	Piston	-
58	R39112	2	Fitting	-
59	CE18531	1	Seal	-
60	H89617	3	Spacer	-
61	T22828	1	O-Ring	-
62	AH229778	1	Drain Plug	-
63	R27218	1	Fitting Plug	-
64	R26448	1	O-Ring	-
..	AH232618	1	Gear Case	(WITHOUT PUMP)
..	DE20076	1	Gear Case	(WITH PUMP)
