Feed Accelerator Drive and Secondary Jackshaft Idler Assemblies

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7276	1	Nut	M16
2	24M7103	2	Washer	17.500 X 56 X 5 mm
3	W25475	1	Compression Spring	-
4	T79938	1	Compression Spring	-
5	H171061	2	Bushing	-
6	H171039	1	Gauge	-
7	H129208	1	Pivot	-
8	H171040	1	Bolt	-
9	AH210916	1	Pin	-
10	U10457	1	Snap Ring	-
11	AH160595	1	Arm	-
12	H96996	1	Bushing	-
13	11M7028	2	Cotter Pin	5 X 32 mm
14	24M7053	1	Washer	17 X 30 X 3 mm
15	AH164925	1	Arm	-
16	24M7091	2	Washer	26 X 44 X 4 mm
17	P46402	2	Snap Ring	-
18	AH150900	2	Idler	-
19	H96690	1	Spacer	-
20	19M7846	1	Screw	M16 X 120
21	AA5607R	2	Seal	-
22	AH204389	1	Idler	-
23	H160992	1	Pulley	-
24	H165237	1	Spacer	-
25	19M7786	1	Screw	M10 X 30
26	HXE95511	1	V-Belt	(STANDARD SPEED) LGTH = 2110 mm, WIDTH = 52.43 mm, 3 Rib, SUB FOR H236472 OR H211581
26	H221732	1	V-Belt	(SLOW SPEED) LGTH = 2060 mm, WIDTH = 48.7 mm
26	H221733	1	V-Belt	(HIGH SPEED) LGTH = 2255 mm, WIDTH = 48.7 mm
26	HXE54503	1	V-Belt	(HIGH SPEED) LGTH = 2234 mm, WIDTH = 52 mm, SUB FOR H230230
26	H221731	1	V-Belt	(STANDARD SPEED) LGTH = 2110 mm, WIDTH = 48.7 mm, 2 Rib
27	AH150678	1	Belt Set	LGTH = 2860 mm, WIDTH = 22.4 mm
28	AA5607R	2	Seal	-
29	H171061	2	Bushing	-
30	AH202772	1	Arm	-
31	24M7047	1	Washer	13 X 24 X 2.500 mm
32	H227945	1	Hook Bolt	-
33	H170141	1	Pivot	-
34	H219149	1	Gauge	-
35	-	1	Part 39	CTL 70 mm, MF TY22326
36	H26552	1	Compression Spring	-
37	24M7180	1	Washer	13 X 37 X 3 mm
38	14M7275	2	Nut	M12
39	19M7794	1	Screw	M16 X 50
40	14M7296	1	Flange Nut	M10
41	19M7785	3	Screw	M10 X 25
42	W25634	1	Grip	-
43	AH212002	1	Pin	-

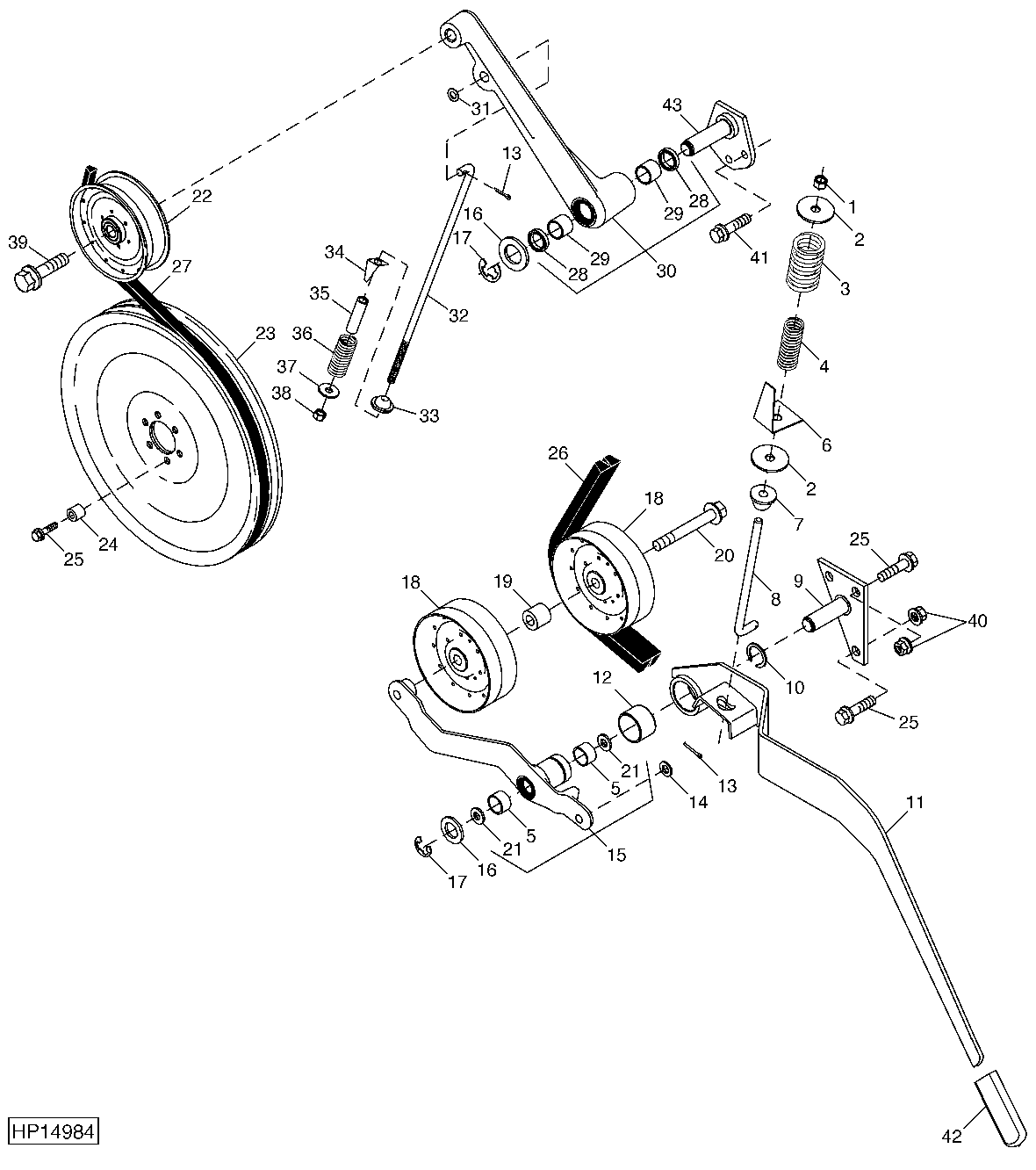

Feed Accelerator Drive and Secondary Jackshaft Idler Assemblies
