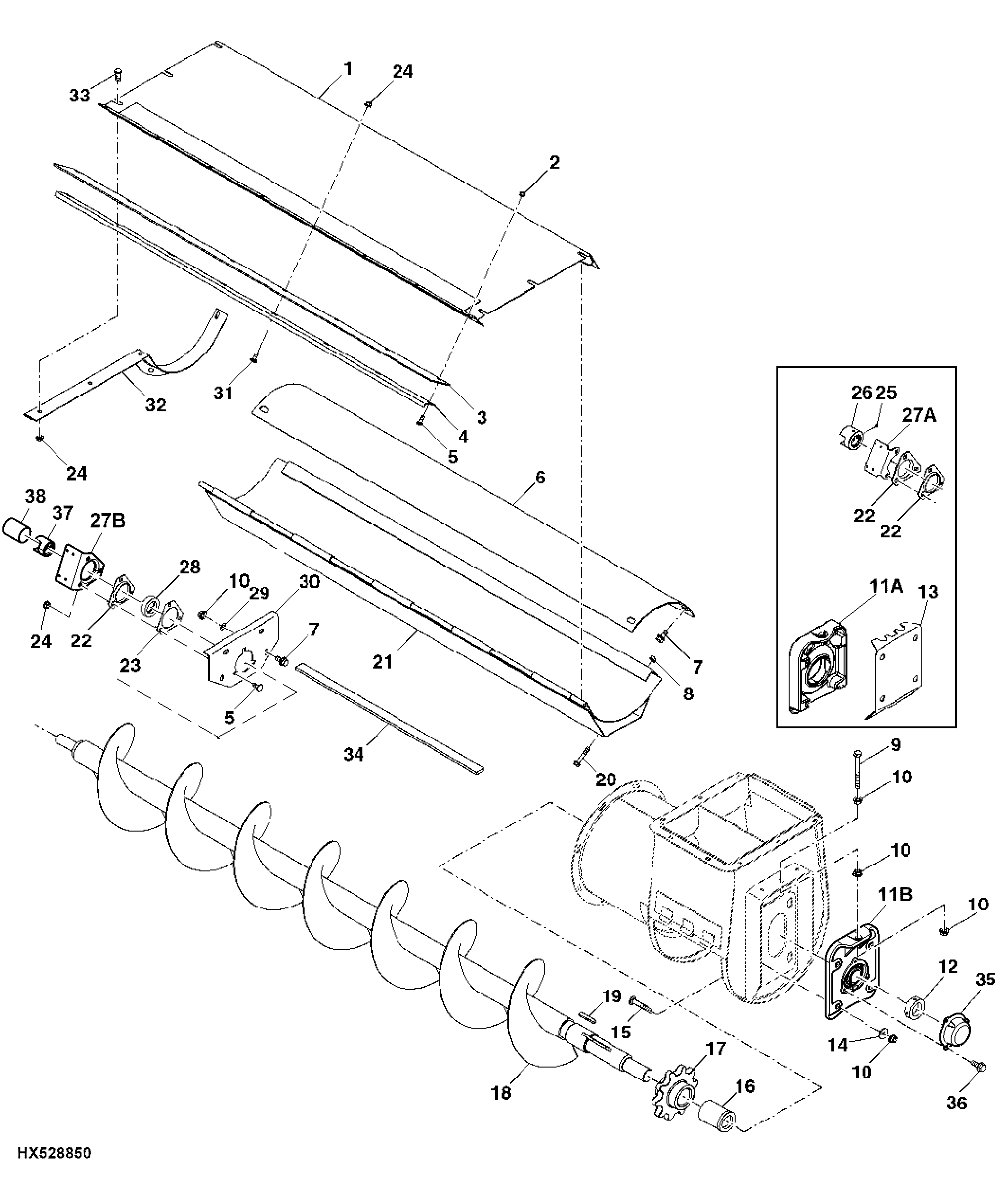

Clean Grain Lower Auger and Hinged Door, High Unloading Rate

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH213347	1	Hinge	-
2	14M7396	1	Lock Nut	M8
3	H235101	1	Isolator	SUB FOR H173384
4	H173311	1	Reinforcement	-
5	03M7184	1	Bolt	M8 X 20
6	H226042	1	Cover	-
7	19M7784	1	Screw	M10 X 20
8	H137328	1	Lock Nut	-
9	19M8241	1	Cap Screw	M10 X 100
10	14M7296	1	Flange Nut	M10
12	AH133191	1	Eccentric Locking Collar	-
13	H223828	1	Plate	USE WITH AH223716
14	24M7178	8	Washer	10.500 X 30 X 2.500 mm
15	03M7194	4	Bolt	M10 X 40, USE WITH AXE23392
15	03M7214	4	Bolt	M10 X 65, USE WITH AH223716
16	AH227464	1	Spacer	-
17	H228383	1	Chain Sprocket	Z = 10
18	AXE59539	1	Auger	SUB FOR AH219339
19	49M6480	1	Shaft Key	8 X 7 X 50 mm
20	19M7800	1	Screw	M8 X 50
20	19M7799	1	Screw	M8 X 45
21	AH139391	1	Door	-
22	H103264	1	Pressed Flanged Housing	-
23	H152940	1	Gasket	-
24	14M7298	1	Flange Nut	M8
25	22M7079	1	Set Screw	M6 X 6
26	AH223753	1	Wheel	-
28	JD39102	1	Ball Bearing	-
29	H141123	3	Push Nut	-
30	H223764	1	Plate	Standard Capacity
30	H223765	1	Plate	High Capacity
31	19M7865	1	Screw	M8 X 16
32	AH149157	1	Reinforcement	-
33	03M7183	1	Bolt	M8 X 16
34	H88773	7	Isolator	-
35	HXE36712	1	Cover	USE WITH AXE23392
36	19M7774	3	Screw	M6 X 12, USE WITH AXE23392
37	AXE25884	1	Wheel	-
38	HXE68265	1	Cap	-
11A	AH223716	1	Bearing With Housing	ORDER AXE23392
11B	AXE23392	1	Bearing With Housing	ALSO ORDER HXE36712, (3) 19M7774 AND (4) 03M7194
27A	H222100	1	Bracket	-
27B	HXE35167	1	Pressed Flanged Housing	SUB FOR H222100
