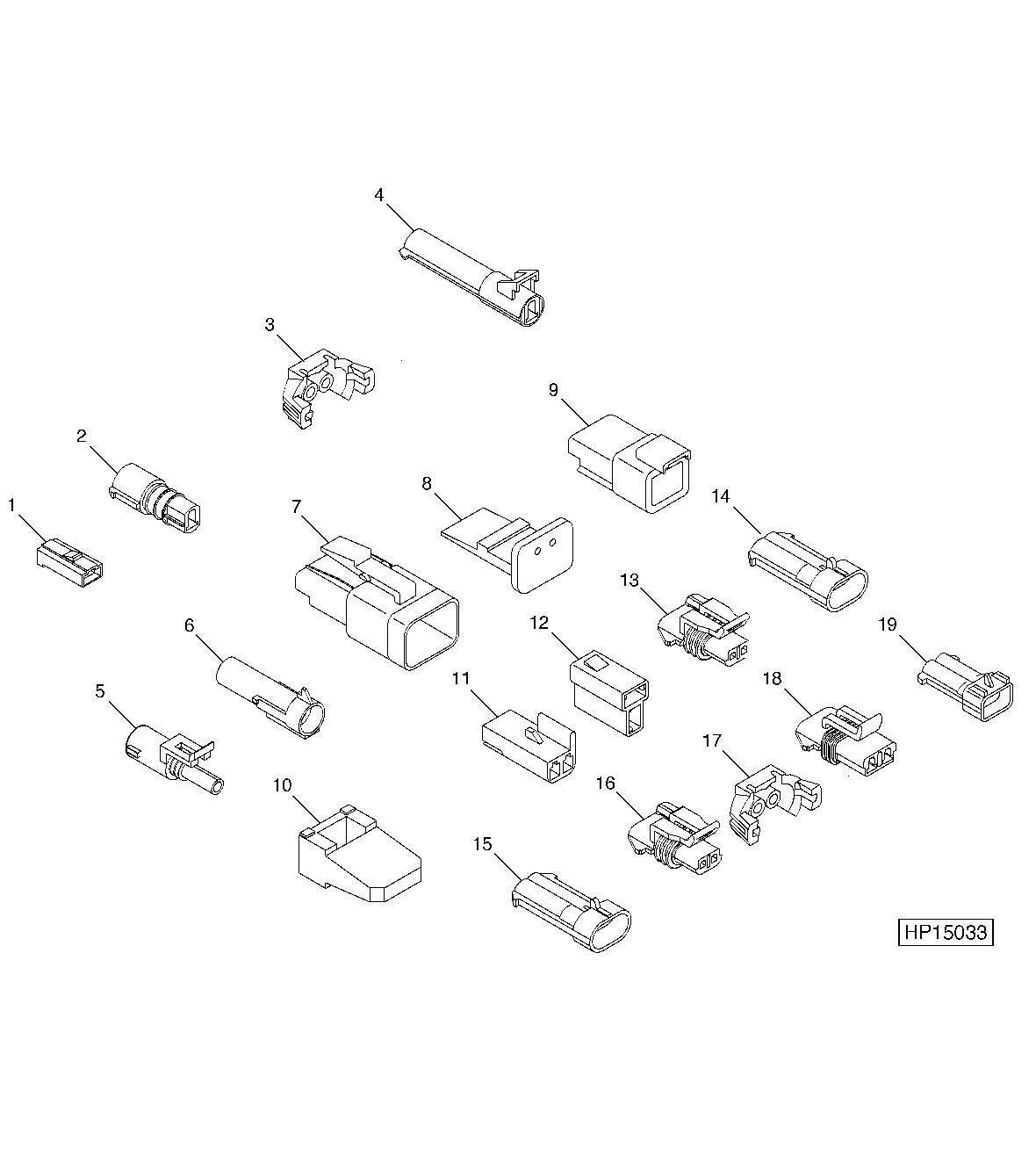

ELECTRICAL CONNECTOR SERVICE KIT 1-WAY AND 2-WAY CONNECTORS (BOX 1)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T28583	3	Elec. Connector Housing	-
2	57M7294	4	Elec. Connector Housing	(USE WITH 57M7295)
3	57M7295	8	Elec.Connect Locking Device	(USE WITH 57M7294, 57M7293)
4	57M7293	4	Elec. Connector Housing	(USE WITH 57M7295)
5	RE12362	2	Electrical Connector Assy	-
6	R78052	2	Electrical Connector Assy	-
7	57M7534	1	Elec. Connector Housing	(USE WITH 57M7620)
8	57M7620	5	Electrical Connector Assy	(USE WITH 57M7534)
9	57M7533	1	Elec. Connector Housing	(USE WITH 57M7621)
10	57M7621	5	Elec.Connect Locking Device	(USE WITH 57M7533)
11	R77480	3	Electrical Connector Assy	-
12	R77476	3	Electrical Connector Assy	-
13	57M7254	4	Elec. Connector Housing	(USE WITH 57M7289)
14	57M7256	4	Elec. Connector Housing	(USE WITH 57M7289)
15	57M7365	4	Elec. Connector Housing	(USE WITH 57M7289)
16	57M7328	2	Elec. Connector Housing	(USE WITH 57M7289)
17	57M7289	8	Elec.Connect Locking Device	(USE WITH 57M7254, 57M7256, 57M7365 AND 57M7328)
18	57M7309	4	Elec. Connector Housing	(USE WITH 57M7306)
19	57M7304	4	Elec. Connector Housing	(USE WITH 57M7306)
..	PM797NA	1	Kit	-

ELECTRICAL CONNECTOR SERVICE KIT 1-WAY AND 2-WAY CONNECTORS (BOX 1)

Нет текстового описания
