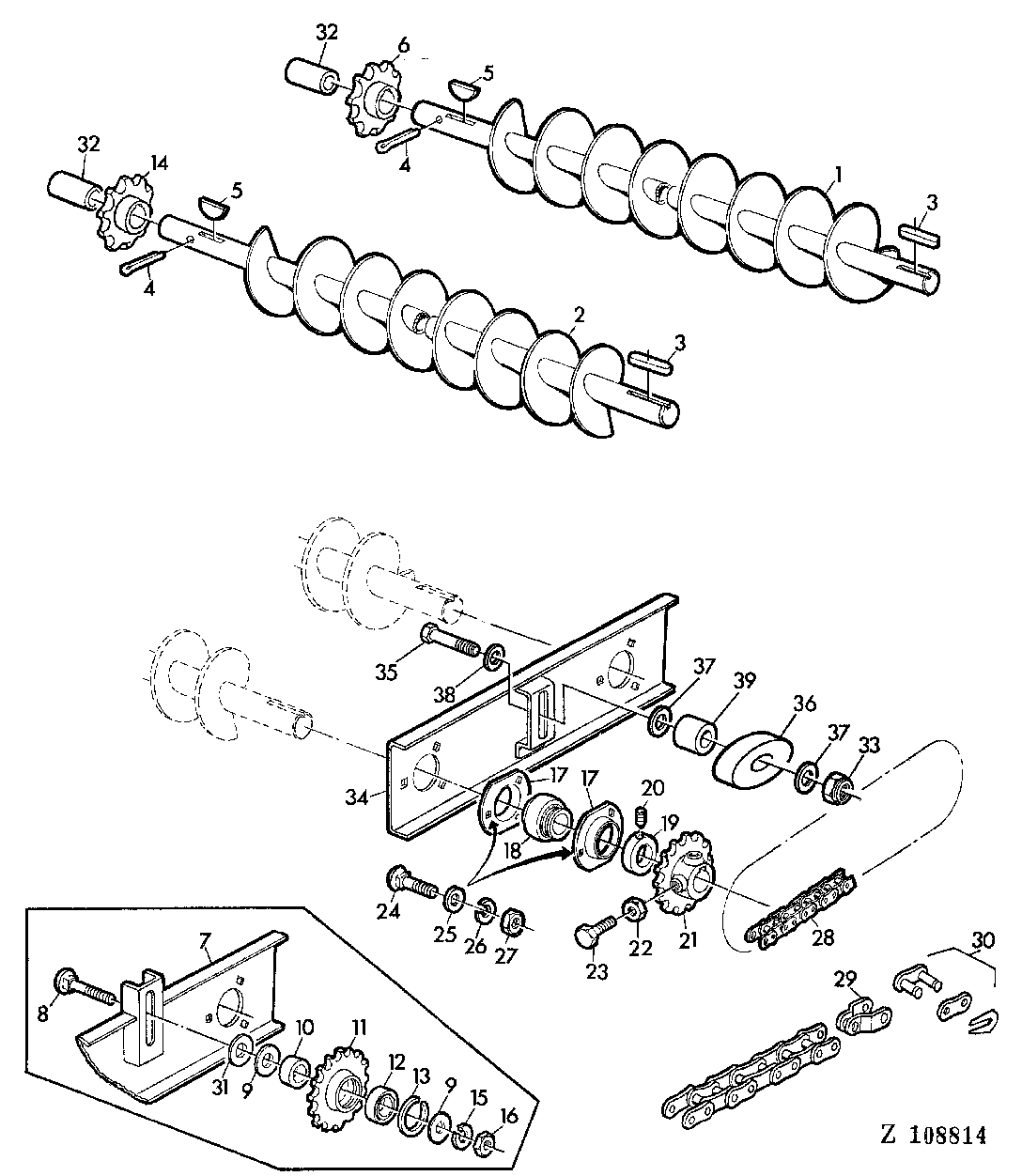

TAILINGS AND CLEAN GRAIN AUGER [04E05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ25380	1	AUGER	LGTH = 1949 MM, OD = 30 MM
1	AZ25381	1	AUGER	LGTH = 1949 MM, OD = 30 MM (SUB FOR AZ23177)
1	AZ26939	1	AUGER	OD = 30 MM, LGTH = 1759 MM
2	AZ23176	1	AUGER	OD = 25 MM, LGTH = 1750 MM
2	AZ26938	1	AUGER	OD = 30 MM, LGTH = 1759 MM
3	49M4111	2	Shaft Key	8 X 7 X 40 MM
4	11M7034	1	Cotter Pin	5 X 65 MM
5	26M4228	2	Shaft Key	8 X 11 MM
6	Z11209	1	CHAIN SPROCKET	Z = 8, (SUB FOR Z10997) ID = 25 MM
6	Z11210	1	CHAIN SPROCKET	Z = 8, (SUB FOR Z10886) ID = 30 MM
6	Z11211	1	CHAIN SPROCKET	Z = 8, ID = 30 MM
7	AZ23174	1	HOLDER	(ORD AZ30658 W/ Z41248)
8	03M7129	1	BOLT	M16 X 55
9	24M7049	1	Washer	18 MM
10	Z25755	2	WASHER	-
11	Z10940	1	CHAIN SPROCKET	Z = 26 (FOR AZ23174)
12	JD30324	1	BALL BEARING	-
13	L49514	1	SNAP RING	-
14	Z10997	1	CHAIN SPROCKET	Z = 8, ID = 25 MM
14	Z10886	2	CHAIN SPROCKET	ID = 30 MM
15	12M5846	1	LOCK WASHER	16 MM
16	14M7146	1	Nut	M16
17	P47232	4	PRESSED FLANGED HOUSING	-
18	JD39105	2	BALL BEARING	-
19	AZ10044	2	Eccentric Locking Collar	ASSY, INCL KEY 20
20	AZ19843	2	SET SCREW	KIT
21	Z10955	2	Chain Sprocket	-
22	14M7152	1	Nut	M10
23	Z26249	4	SET SCREW	10 X 22 MM
24	03M7054	1	Bolt	M8 X 20
25	24M7036	1	Washer	9 MM
26	12M7008	1	LOCK WASHER	8 MM
27	14M7029	1	Nut	M8
28	AZ23212	1	LINK CHAIN	L = 88, INCL KEY 30
29	AZ12882	1	LINK	-
30	AL14209	1	LINK	-
31	24M5783	1	Washer	-
32	Z37953	2	Spacer	-
33	14M7167	1	Lock Nut	M10
34	AZ30658	1	HOLDER	(SUB FOR AZ23174)
35	19M7327	1	Cap Screw	M10 X 65
36	Z41248	1	TIGHTENER	(FOR AZ30658) (ORD Z44031, Z44212)
36	Z44031	1	Tightener	-
37	24M7178	1	Washer	10,5 MM
38	24M7028	2	Washer	10,5 MM
39	Z44212	1	BUSHING	-
