Two-Speed Inner Cover, Manifold and Packing

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H175443	1	Washer	-
2	R91842	1	Screw	-
3	AH169196	2	Dowel Pin	-
4	AH169193	1	Seal	-
5	H175440	1	Hydraulic Pressure Valve	-
6	H175442	9	Compression Spring	-
7	AXE47208	1	Cylinder Block	SUB FOR AH169192
8	H175438	2	O-Ring	-
9	AH169191	1	Cam	USE WITH AH218390 OR AH218391; 1886CC
9	AH229601	1	Cam	USE WITH AH229596 OR AH229598; 2096CC
9	AH232287	1	Cam	USE WITH AH229957 OR AH229958 OR AXE13833 OR AXE13834; 2096CC
9	AH169191	1	Cam	USE WITH AXE13854
10	AH219804	1	Seal Kit	USE WITH AXE13854
10	AH230661	1	Seal	USE WITH AH229957 OR AH229958 OR AXE13833 OR AXE13834; 2096CC
10	AH219804	2	Seal Kit	USE WITH AH229596 OR AH229598; 2096CC
11	AH169190	1	Cylindrical Roller Bearing	USE WITH AH218390,AH218391 ,AH229596 OR AH229598
11	AH230663	1	Tapered Roller Bearing	USE WITH AH229957 OR AH229958
11	AH169190	1	Cylindrical Roller Bearing	USE WITH AXE13854
12	AH211004	1	Cylindrical Roller Bearing	USE WITH AH218390,AH218391 ,AH229596 OR AH229598
12	AH230664	1	Tapered Roller Bearing	USE WITH AH229957 OR AH229958
12	AH211004	1	Cylindrical Roller Bearing	USE WITH AXE13854
13	AH219805	1	Seal Kit	USE WITH AH218390,AH218391 ,AH229596 OR AH229598
13	AH230662	1	Seal	USE WITH AH229957 OR AH229958
13	AH219805	1	Seal Kit	USE WITH AXE13854
14	AH218392	1	Bearing Housing W/O Bearing	USE WITH AH218390,AH218391 ,AH229596 OR AH229598
14	AH230665	1	Spindle	USE WITH AH229957 OR AH229958
15	AH212365	1	Ring	USE WITH AH218390,AH218391 ,AH229596 OR AH229598
15	AH230666	1	Repair Kit	USE WITH AH229957 OR AH229958
15	AH212365	1	Ring	USE WITH AXE13854

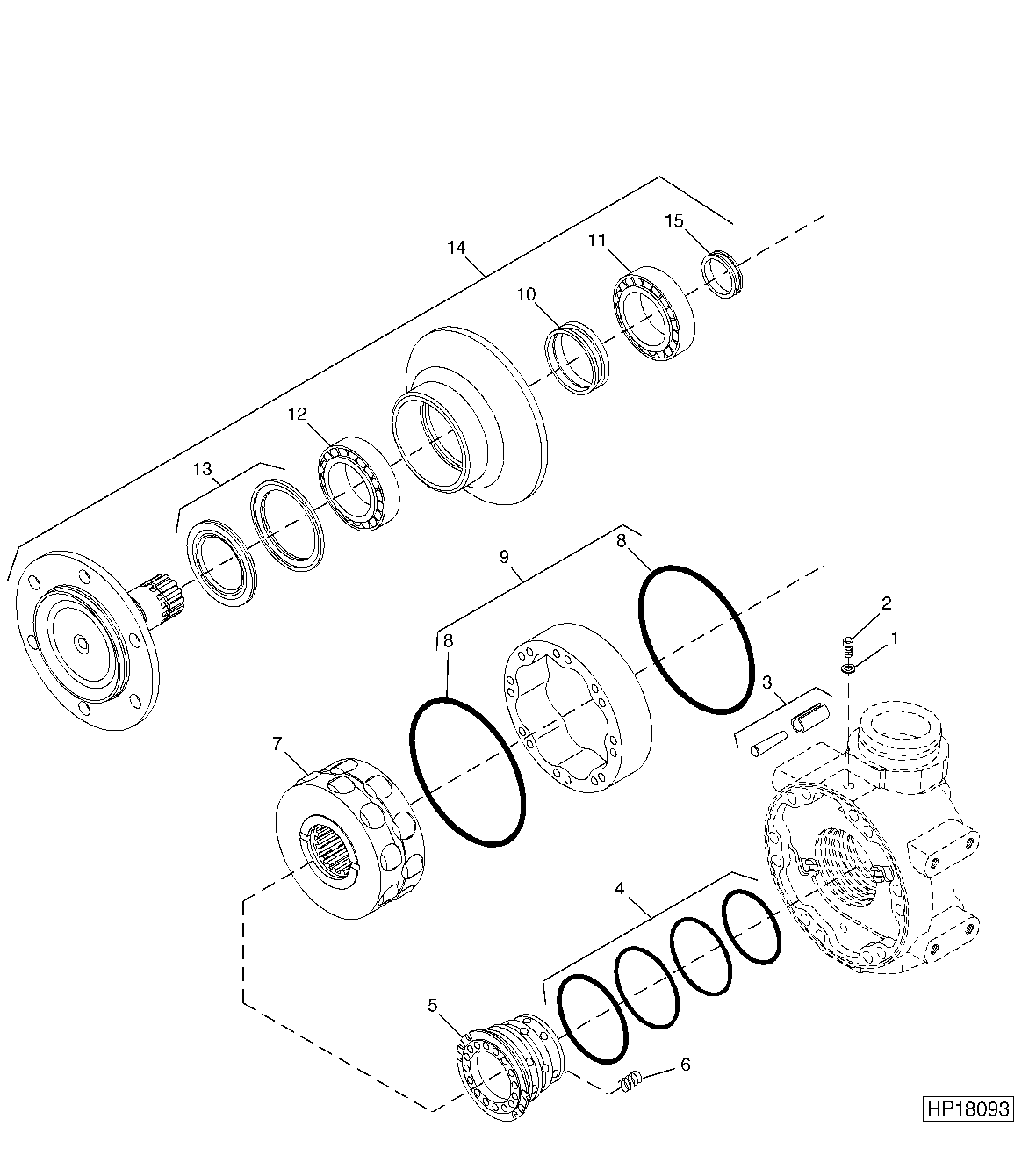

Two-Speed Inner Cover, Manifold and Packing
