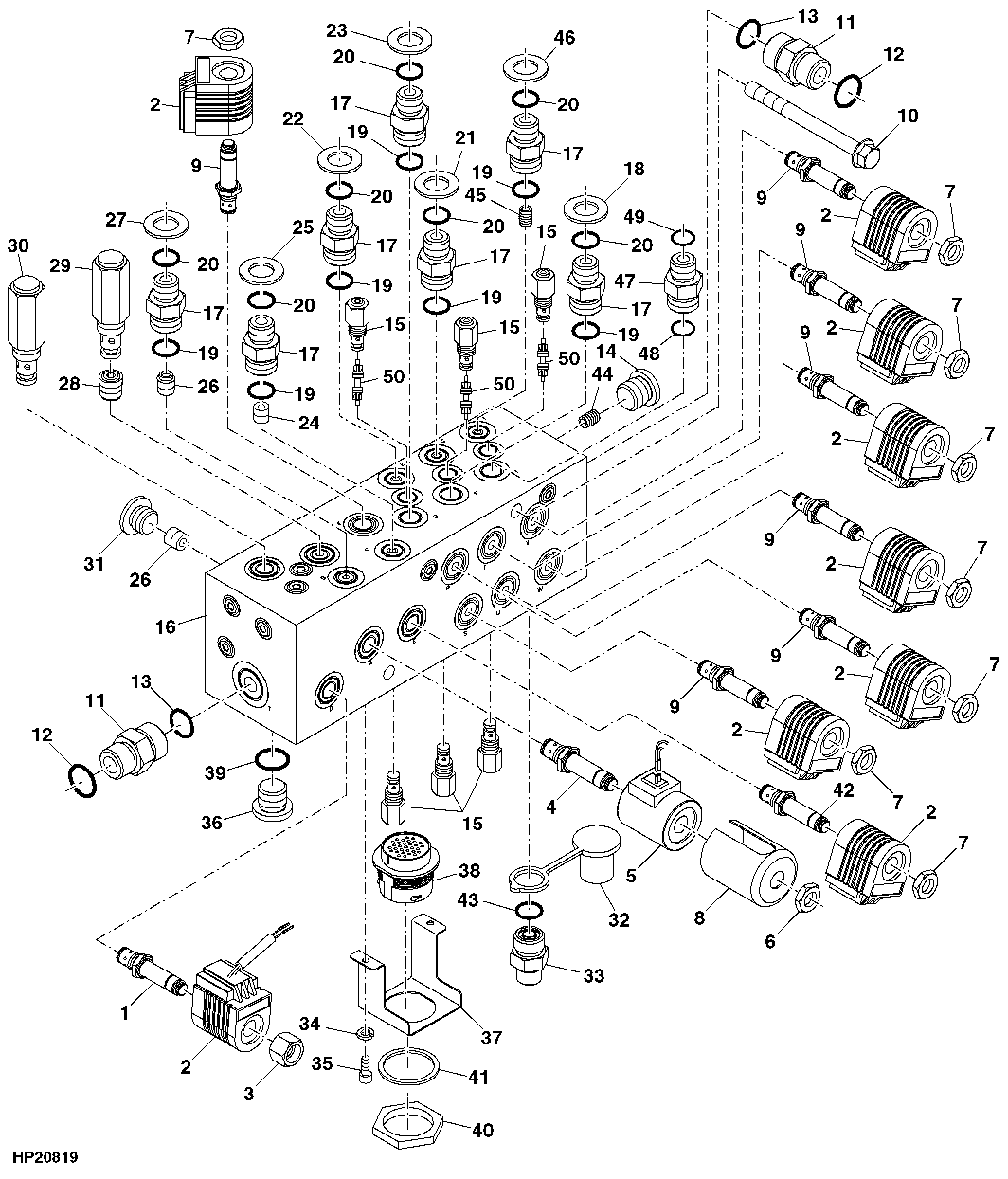

SIX-FUNCTION HYDRAULIC VALVE BLOCK (CONTOUR MASTER WITH STANDARD CYLINDER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE38513	1	Solenoid Valve	SUB FOR AH213967
2	AH219066	9	Solenoid Valve Coil	-
3	H219516	1	Nut	-
4	AH218991	1	Solenoid Valve	-
5	AH220427	1	Solenoid Valve Coil	-
6	A4655R	1	Nut	-
7	R109691	8	Nut	-
8	E62942	1	Cover	-
9	AH213964	7	Solenoid Valve	-
10	19M7836	2	Screw	M10 X 110
11	38H1162	2	Adapter Fitting	-
12	T77932	2	O-Ring	-
13	R26906	2	O-Ring	-
14	R96705	29	Fitting Plug	(A)
15	AH218992	3	Piston Kit	(A) (GUIDE)
16	AH219057	1	Valve Stack	(SHORT BLOCK) (INCL A)
17	38H1160	7	Adapter Fitting	-
18	H170527	1	Washer	(TOP PORT ONLY)
19	R26448	7	O-Ring	-
20	T77613	7	O-Ring	-
21	H170526	1	Washer	(DARK BLUE)
22	H170524	1	Washer	(LIGHT BLUE)
23	H170525	1	Washer	(Red)
24	H214690	1	Orifice	(A)
25	H170523	1	Washer	(Orange)
26	H214693	2	Orifice	(A)
27	H170522	1	Washer	(1)
28	H219492	1	Orifice	(A)
28	H229761	1	Orifice	(FASTER CYLINDER DROP RATE)
29	AH213969	1	Pressure Relief Valve	-
30	AH220428	1	Pressure Relief Valve	(SUB FOR AH219234)
31	A73182	1	Pipe Plug	(A)
32	R77175	1	Cover	(A)
33	XPD341	1	Diagnostic Coupling	(A)
34	12H302	2	Lock Washer	1/4"
35	19H3753	2	Screw	1/4" X 1/2"
36	L41709	1	Pipe Plug	(A)
37	H219659	1	Bracket	-
38	57M7666	1	Elec. Connector Housing	-
38	N282069	20	Elec. Connector Terminal	-
39	51M7041	1	O-Ring	11.300 X 2.200 mm
40	57M8035	1	Nut	-
41	57M9061	1	Elec.Connect Locking Device	-
42	AH213966	1	Solenoid Valve	-
43	R28782	29	O-Ring	-
44	H214689	1	Orifice	(TOP PORT ONLY)
45	H219491	1	Orifice	-
46	H170528	1	Washer	(White)
47	38H1159	1	Adapter Fitting	-
48	R28782	1	O-Ring	-
49	T77814	1	O-Ring	-
50	-	3	Part 52	-
..	AH218994	7	Seal Kit	(USE WITH AH213964)
..	AH218993	2	Seal Kit	(USE WITH AH218991 OR AH213966)
