8423 Engine Wiring Harness

8423 Engine Wiring Harness

8423 Engine Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

8423 Engine Wiring Harness

Нет текстового описания

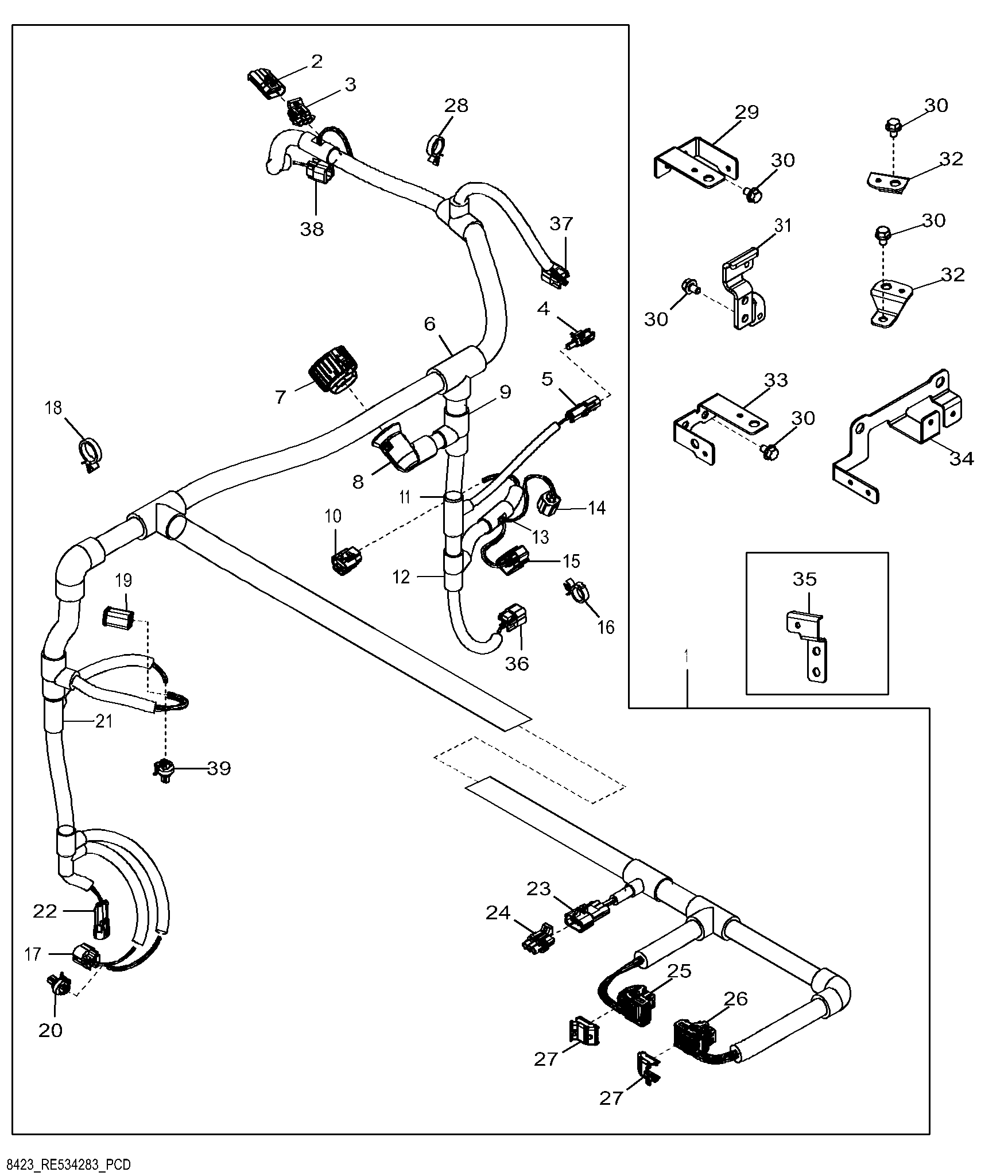

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ101033	1	Wiring Harness	12 V/24 V, SUB FOR RE532656
2	57M7257	1	Elec. Connector Housing	-
3	R104846	3	Elec. Connector Terminal	-
3	57M9215	3	Elec. Connector Seal	-
3	57M7255	1	Elec. Connector Housing	Air Heater Jumper Connection
4	RE12362	1	Electrical Connector Assy	-
5	R78052	1	Electrical Connector Assy	Alternator Excitation
5	R78061	1	Elec. Connector Terminal	-
5	57M9218	1	Elec. Connector Seal	-
6	57M9285	1	Tee Fitting	-
7	57M8515	8	Elec. Connector Seal	-
7	57M8991	8	Elec. Connector Terminal	-
7	R532533	1	Electrical Connector Assy	Fuel Injector Connector
8	R520452	1	Elec. Connector Accessory	-
9	57M9277	1	Tee Fitting	-
10	57M13604	1	Elec. Connector Housing	Rail Pressure Sensor
10	57M8135	3	Elec. Connector Terminal	-
10	57M8568	1	Elec. Connector Seal	-
10	57M7833	2	Elec. Connector Seal	-
11	57M9263	1	Tee Fitting	-
12	57M9265	1	Tee Fitting	-
13	57M9325	1	Sleeve	-
14	57M8402	2	Elec. Connector Terminal	-
14	57M8568	2	Elec. Connector Seal	-
14	57M8400	1	Electrical Connector Assy	Fuel Temperature
15	57M8403	1	Elec. Connector Housing	Pump Control Valve
15	57M8404	2	Elec. Connector Terminal	-
15	57M8406	2	Elec. Connector Terminal	-
16	57M9244	1	Clip	-
17	57M8601	1	Elec. Connector Housing	Engine Crank Sensor
17	57M8602	2	Elec. Connector Terminal	-
17	57M8603	2	Elec. Connector Seal	-
18	57M9247	7	Clip	-
19	57M8634	1	Elec. Connector Housing	Fuel Transfer Pump
19	57M7546	4	Elec. Connector Terminal	-
19	N282070	2	Elec. Connector Terminal	-
20	57M8625	1	Elec. Connector Housing	Oil Pressure Sensor
20	57M8602	3	Elec. Connector Terminal	-
20	57M8603	3	Elec. Connector Seal	-
21	57M9264	1	Tee Fitting	-
22	57M7256	1	Elec. Connector Housing	Water In Fuel
22	57M9215	2	Elec. Connector Seal	-
22	R104919	2	Elec. Connector Terminal	-
23	57M7305	1	Elec. Connector Housing	Auxiliary Power Connection
23	57M9216	1	Elec. Connector Seal	-
23	57M9218	2	Elec. Connector Seal	-
23	57M7285	1	Elec. Connector Terminal	-
23	57M7527	2	Elec. Connector Terminal	-
24	57M7280	1	Elec. Connector Housing	-
25	57M10606	1	Elec. Connector Housing	ECU Connector
25	57M10330	10	Elec. Connector Terminal	-
25	57M10331	6	Elec. Connector Terminal	-
25	57M10333	14	Elec. Connector Cavity Plug	-
25	57M10334	2	Elec. Connector Cavity Plug	-
26	57M10605	1	Elec. Connector Housing	ECU Connector
26	57M10330	13	Elec. Connector Terminal	-
26	57M10331	4	Elec. Connector Terminal	-
26	57M10333	11	Elec. Connector Cavity Plug	-
26	57M10334	4	Elec. Connector Cavity Plug	-
27	57M10604	2	Elec. Connector Housing	-
28	57M9245	3	Clip	-
29	R522797	1	Bracket	-
30	RE524730	8	Cap Screw	-
31	DZ105939	1	Bracket	-
32	R522798	2	Bracket	-
33	R522799	1	Bracket	-
34	R522014	1	Bracket	-
35	R521288	1	Bracket	ORDER DZ105939
36	57M8601	1	Elec. Connector Housing	Engine Cam Sensor
36	57M8602	2	Elec. Connector Terminal	-
36	57M8603	2	Elec. Connector Seal	-
37	57M8601	1	Elec. Connector Housing	Coolant Temperature
37	57M8603	2	Elec. Connector Seal	-
37	57M8602	2	Elec. Connector Terminal	-
38	57M8601	1	Elec. Connector Housing	Manifold Air Temperature
38	57M8613	2	Elec. Connector Terminal	-
38	57M8603	2	Elec. Connector Seal	-
39	57M8625	1	Elec. Connector Housing	Fuel Pressure Sensor
39	57M8613	3	Elec. Connector Terminal	-
39	57M8603	3	Elec. Connector Seal	-
