Открытый узел

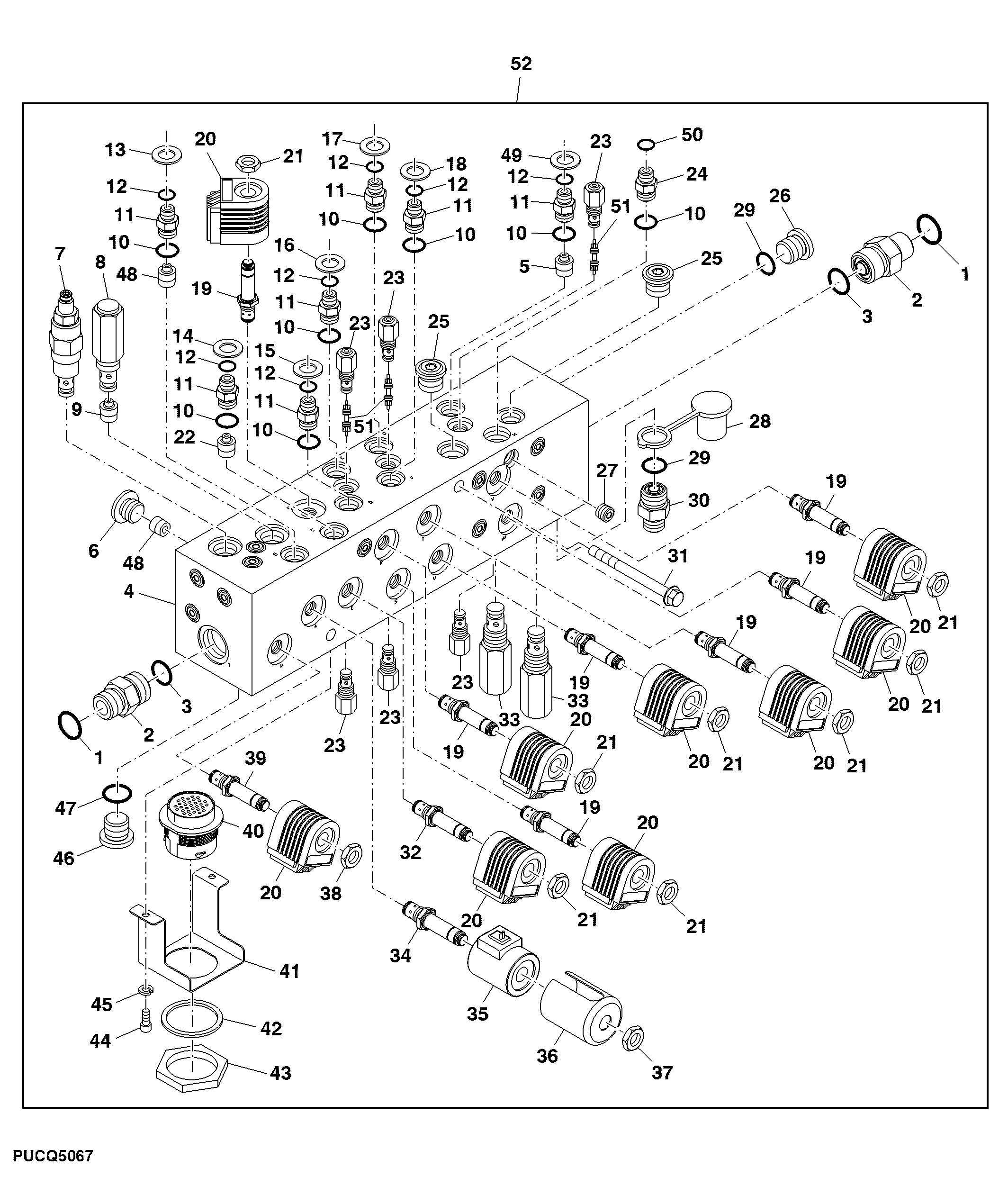

Six-Function Hydraulic Valve Block, Contour Master With Large Cylinder

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77932	2	O-Ring	-
2	38H1162	2	Adapter Fitting	-
3	R26906	2	O-Ring	-
4	AH228828	1	Valve Stack	(SHORT BLOCK) INCLUDES A
5	H229758	1	Orifice	(A)
5	HXE26115	1	Orifice	40 FEET, Platform
6	A73182	1	Pipe Plug	(A)
7	AH220428	1	Pressure Relief Valve	-
8	AH213969	1	Pressure Relief Valve	-
9	H219492	1	Orifice	(A)
9	H229761	1	Orifice	(FASTER CYLINDER DROP RATE)
10	R26448	8	O-Ring	-
11	38H1160	7	Adapter Fitting	-
12	T77613	7	O-Ring	-
13	-	1	Part 15	(Yellow)
14	-	1	Part 16	(Green)
15	-	1	Part 17	(Orange)
16	-	1	Part 18	(Red)
17	-	1	Part 19	(LIGHT BLUE)
18	-	2	Part 20	(DARK BLUE)
19	AH213964	7	Solenoid Valve	-
20	AH219066	9	Solenoid Valve Coil	-
21	R109691	8	Nut	-
22	H214690	1	Orifice	(A)
22	HXE27822	1	Orifice	(For Reel Lift / Lower Orifice Kit) 0.059�?
23	AH218992	6	Piston Kit	(A) (GUIDE)
24	38H1159	1	Adapter Fitting	-
25	AH213971	2	Check Valve	-
26	R96705	34	Fitting Plug	(A)
27	H229760	1	Orifice	(A)
27	HXE26117	1	Orifice	40 FEET, Platform
28	R77175	1	Cover	(A)
29	R28782	35	O-Ring	(A)
30	XPD341	1	Diagnostic Coupling	(A)
31	19M7836	2	Screw	M10 X 110
32	AH213966	1	Solenoid Valve	-
33	AH213970	2	Pressure Relief Valve	-
34	AH218991	1	Solenoid Valve	-
35	AH220427	1	Solenoid Valve Coil	-
36	E62942	1	Cover	-
37	A4655R	1	Nut	-
38	H219516	1	Nut	-
39	AXE38513	1	Solenoid Valve	SUB FOR AH213967
40	N282069	20	Elec. Connector Terminal	-
40	57M7666	1	Elec. Connector Housing	-
41	H219659	1	Bracket	-
42	57M9061	1	Elec.Connect Locking Device	-
43	57M8035	1	Nut	-
44	19H3753	2	Screw	1/4" X 1/2"
45	12H302	2	Lock Washer	1/4"
46	L41709	1	Pipe Plug	(A)
47	51M7041	1	O-Ring	(A) 11.300 X 2.200 mm
48	H214693	2	Orifice	(A)
49	-	1	Part 54	(White)
50	T77814	1	O-Ring	-
51	-	3	Part 56	-
52	AXE24405	1	Valve Stack	-
..	AH218994	7	Seal Kit	USE WITH AH213964
..	AH218993	2	Seal Kit	USE WITH AH218991 OR AH213966

Six-Function Hydraulic Valve Block, Contour Master With Large Cylinder
