Main Hydraulic Filter Assembly / Hoses, Bundle Supports

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH128449	1	Hydraulic Filter	-
2	AH125733	1	Filter Head	-
3	19M7784	2	Screw	M10 X 20
4	AH233071	3	Bracket	-
5	H114897	4	Clamp	-
6	19M7801	1	Screw	M8 X 60
7	H112567	3	Plate	-
8	14M7298	1	Flange Nut	M8
9	H163410	3	Hose Clamp	-
10	AH208259	1	Hydraulic Hose	(W/O Powered Rear Wheels)
10	AH230615	1	Hydraulic Hose	(W/ Powered Rear Wheels) LGTH = 400 mm
11	T77858	1	O-Ring	-
12	R29936	1	O-Ring	-
13	AH132031	2	Fitting	(W/ Powered Rear Wheels)
14	38H1438	1	Tee Fitting	(W/O Powered Rear Wheels)
15	AH161787	1	Hydraulic Hose	LGTH = 3600 mm
16	AH223321	1	Hydraulic Hose	LGTH = 3345 mm
17	AH234283	1	Hydraulic Hose	LGTH = 1850 mm,
18	19M7863	7	Screw	M6 X 25
19	AH77724	3	Clip	-
20	H159793	2	Clamp	-
21	38H1007	1	Elbow Fitting	(W/O Chaff Spreader)
22	R50454	1	Clamp	-
23	38H1033	1	Tee Fitting	(W/ Powered Rear Wheels)
24	U12547	1	O-Ring	-
25	38H1026	1	Tee Fitting	(W/ Chaff Spreader)
26	R56171	1	Clip	-

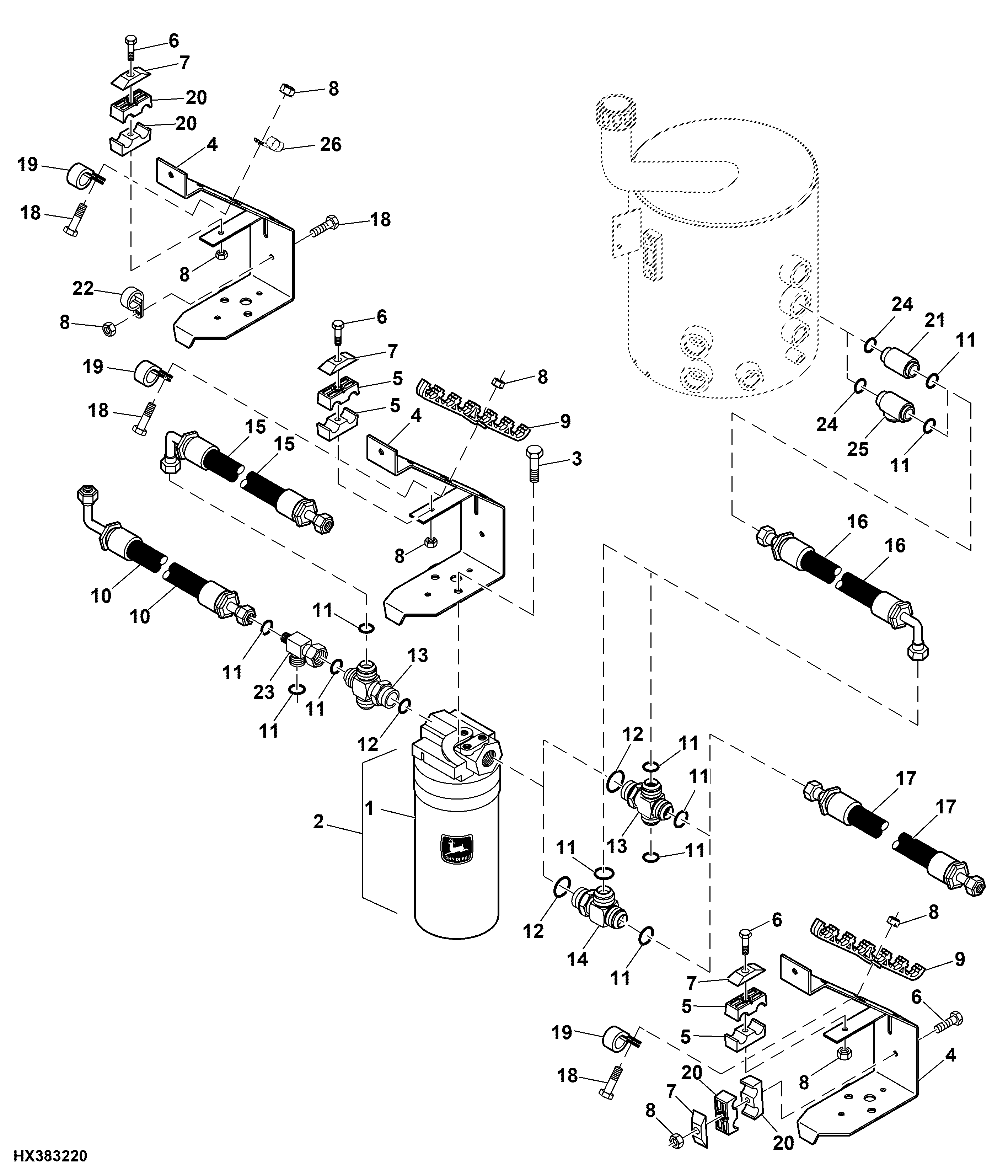

Main Hydraulic Filter Assembly / Hoses, Bundle Supports
