Открытый узел

Horizontal Unloading Auger Swivel, High Unloading Rate

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH233216	1	Housing	High Unloading Rate INCLUDES H235296, (12) H211910 AND (12) 14M7291
1	AH215721	1	Housing	Regular Unloading Rate INCLUDES H214492, (3) 03M7200, (12) 14M7299 AND (9) 03M7198
1	AH215722	1	Housing	High Unloading Rate INCLUDES H236333, (12) H211910 AND (12) 14M7291
2	H217909	3	Retainer	USE WITH AH215722 OR AH233216
2	H214495	3	Retainer	USE WITH AH215721
3	H212217	1	Pin Fastener	USE WITH H236333
3	HXE18846	1	Stud	USE WITH H235296
3	H177210	1	Pin Fastener	USE WITH H214492
4	JD7839	1	Lubrication Fitting	-
5	A15147	1	Spring Locking Pin	-
6	R56930	1	Pin Fastener	-
7	AH232736	1	Base	-
9	H204377	1	Strap	USE WITH AH215722 OR AH233216
9	H176042	1	Strap	USE WITH AH215721
11	VG12071	1	Screw	-
12	19M7788	4	Screw	M12 X 25
13	H212503	1	Retainer	-
14	H235296	1	Ring	High Unloading Rate
14	H214492	1	Ring	Regular Unloading Rate
14	H236333	1	Ring	High Unloading Rate
15	H202433	2	Bushing	-
16	H203809	1	Screw	-
17	14M7299	1	Flange Nut	M12, USE WITH AH168204
17	14M7291	1	Flange Nut	M16, USE WITH AH206304
18	19M7843	1	Screw	M16 X 35, USE WITH AH206304
18	19M7789	1	Screw	M12 X 30, USE WITH AH168204
19	19M7785	8	Screw	M10 X 25, M10 X 1.5 X 25
20	AH123912	1	Support	SUB FOR AH203043
21	H147752	1	Plate	-
22	H210645	1	Base	-
23	A15147	1	Spring Locking Pin	-
24	T82084	2	Label	-
25	03M7200	3	Bolt	M12 X 40, USE WITH AH215721
25	H211910	1	Bolt	-
26	14M7291	1	Flange Nut	M16
27	H177212	1	Pin	-
28	19M8737	3	Screw	M12 X 140
29	H204492	3	Spacer	LGTH = 105 mm
29	H236373	3	Spacer	LGTH = 110 mm
30	-	4	Part 44	-
31	AH136553	1	Hose	-
32	E12379	1	Nut	-
33	HXE52669	8	Rivet	SUB FOR H150109
34	H226444	1	Sheet	-
35	14H875	1	Nut	7/8"
36	H209314	8	Spacer	-
37	24H1353	1	Washer	9/16" X 2-1/4" X 0.134"
38	24M7291	1	Washer	37 X 66 X 5 mm
39	19M7814	1	Screw	M12 X 50
8A	AH230593	2	Cradle	SUB FOR AH216301
8B	AH165687	1	Bracket	-
10A	AH206304	1	Plate	-
10B	AH168204	1	Plate	-

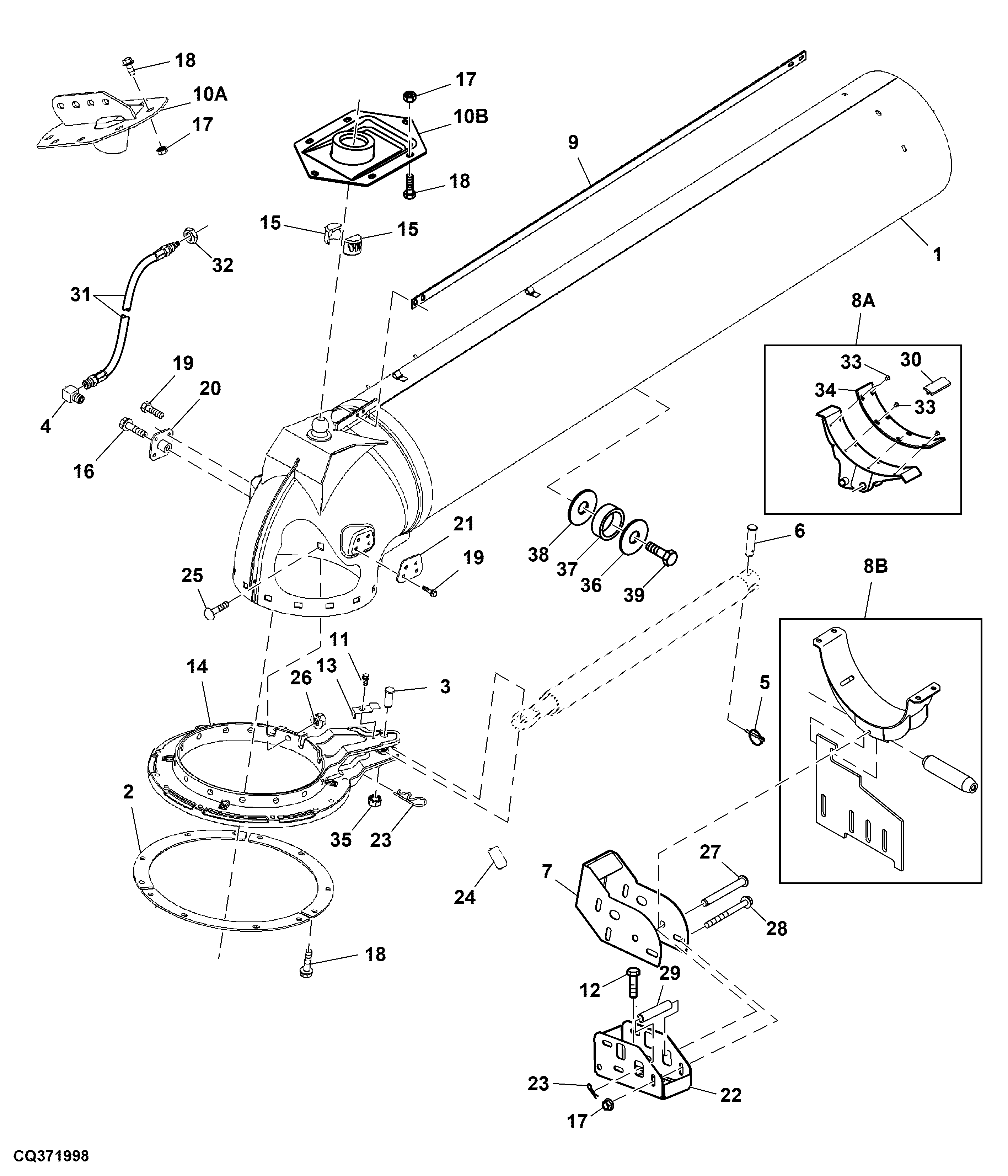

Horizontal Unloading Auger Swivel, High Unloading Rate
