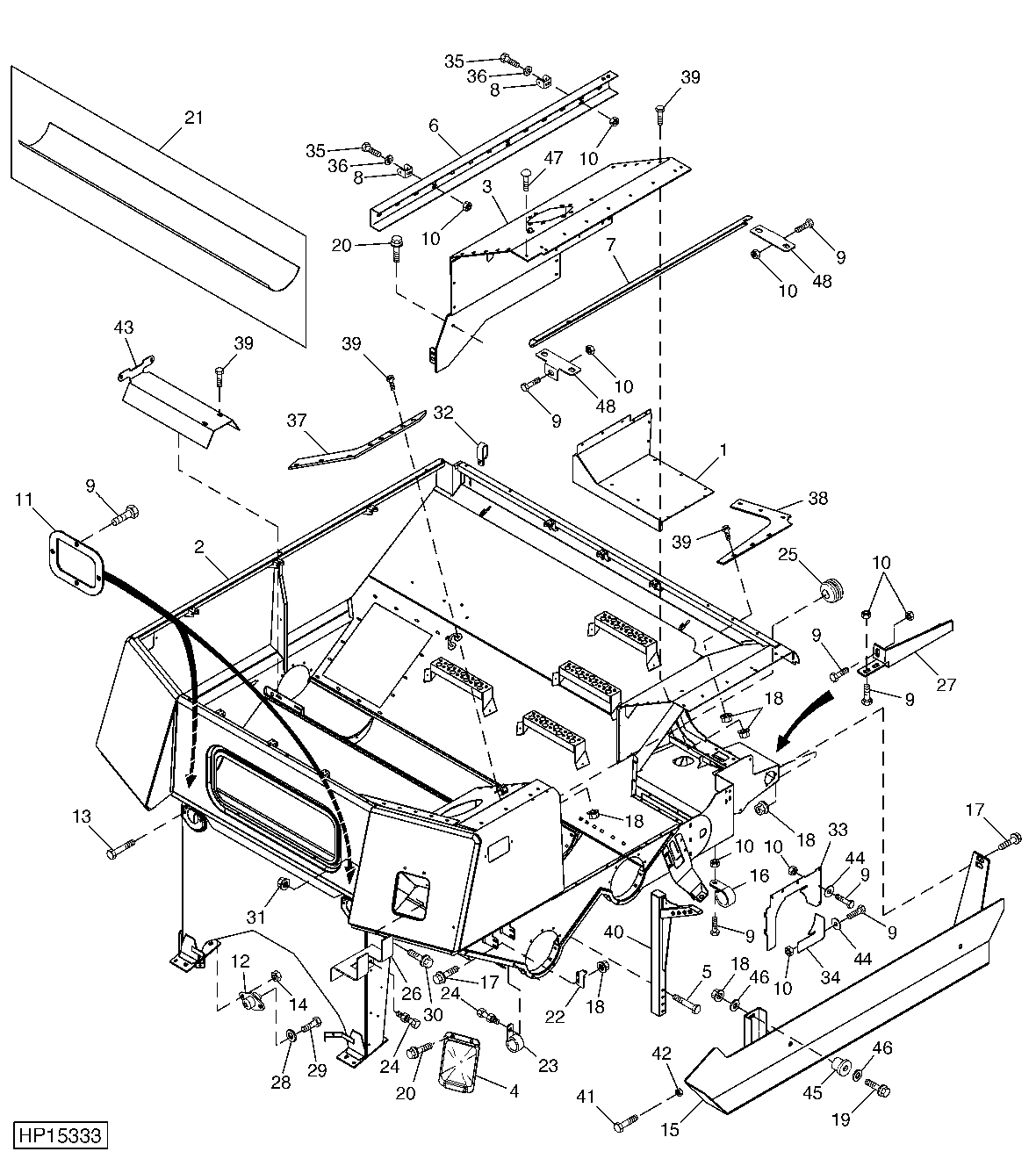

Grain Tank (High Unloading Rate) ( - 715400)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH202953	1	Cover	-
2	AH215345	1	Tank	(SUB FOR AH201798) (ALSO ORDER H215940)
3	AH212644	1	Cover	(SUB FOR AH202955 OR AH211455)
4	AH154704	1	Door	-
5	19M7830	4	Screw	M16 X 150
6	H203689	1	Channel	-
7	H203687	1	Panel	-
8	H202069	1	Clevis	-
9	19M7866	1	Screw	M8 X 20
10	14M7298	1	Flange Nut	M8
11	H89569	2	Door	-
12	AH108299	2	Isolator	-
13	19M7788	4	Screw	M12 X 25
14	14M7299	4	Flange Nut	M12
15	AH214045	1	Shield	(SUB FOR AH148062 OR AH213959)
16	N198631	2	Clamp	-
17	19M7784	4	Screw	M10 X 20
18	14M7296	1	Flange Nut	M10
19	19M7805	1	Screw	M10 X 45
20	19M7867	1	Screw	M8 X 25
21	AH207237	1	Bed Liner	(GRAIN TANK TROUGH LINER (FRONT))
21	AH207238	1	Bed Liner	(GRAIN TANK TROUGH LINER (REAR))
22	H164691	1	Bracket	-
23	AH117301	1	Clamp	-
24	14M7298	1	Flange Nut	M8
24	19M7868	1	Screw	M8 X 30
25	H202762	1	Grommet	-
26	H178830	1	Bracket	-
27	H168118	1	Bracket	-
28	24M7103	2	Washer	17.500 X 56 X 5 mm
29	19M7501	2	Cap Screw	M16 X 110
30	19M7833	1	Screw	M6 X 35
31	14M7303	1	Flange Nut	M6
32	R50454	1	Clamp	-
33	AH211796	1	Cover	(SUB FOR H203685)
34	H213623	1	Cover	(SUB FOR H203686 OR H212072)
35	19M7866	2	Screw	M8 X 20, (SUB FOR (2) 19M7868)
36	24H1311	2	Washer	13/32" X 1-1/4" X 0.220"
37	H203693	1	Plate	-
38	H203694	1	Plate	-
39	19M7785	1	Screw	M10 X 25
40	AH206070	1	Support	-
41	19M7845	4	Screw	M16 X 90
42	14M7291	4	Flange Nut	M16
43	H204435	1	Cover	-
44	24H1291	4	Washer	21/64" X 1-15/32" X 7/64"
45	AL154960	1	Isolator	-
46	24H1307	2	Washer	13/32" X 1" X 1/16"
47	03M7191	1	Bolt	M10 X 25
48	H203688	2	Bracket	-
