LH Main Wiring Harness - Continued ( - 710400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
31	AH211686	1	Wiring Harness	LH MAIN, (SUB FOR AH207925)
32	57M7253	1	Elec. Connector Housing	GRAIN TANK HARNESS
32	R104701	1	Elec. Connector Terminal	-
33	H118422	1	Elec. Connector Terminal	RH MIRROR
34	R78053	1	Electrical Connector Assy	GULLWING SERVICE LIGHTS
35	-	1	Part 6	SLAVE TAILINGS SENSOR
36	-	1	Part 7	MASTER TAILINGS SENSOR
37	RE12363	1	Electrical Connector Assy	ELECTRIC CLUTCH
37	R78060	1	Elec. Connector Terminal	-
37	R78063	1	Elec. Connector Seal	-
38	M47488	1	Elec. Connector Terminal	WINDSHIELD WASHER PUMP
39	RE12363	1	Electrical Connector Assy	TAILINGS ELEVATOR
39	R78060	1	Elec. Connector Terminal	-
39	R78063	1	Elec. Connector Seal	-
40	R78060	1	Elec. Connector Terminal	-
40	R78063	1	Elec. Connector Seal	-
40	RE12364	1	Electrical Connector Assy	FEEDER HOUSE POSITION SENSOR
41	RE12364	1	Electrical Connector Assy	LH TURNING SIGNAL/WARNING LAMP
41	R78060	1	Elec. Connector Terminal	-
41	R78063	1	Elec. Connector Seal	-
42	57M7543	1	Elec. Connector Housing	STEERING COLUMN
43	RE12363	1	Electrical Connector Assy	LEFT STUBBLE LIGHT
43	R78060	1	Elec. Connector Terminal	-
43	R78063	1	Elec. Connector Seal	-
44	57M8036	1	Electrical Connector Assy	HEADER HARNESS
44	R78058	1	Elec. Connector Terminal	-
44	57M7546	1	Elec. Connector Terminal	-
44	R78059	1	Elec. Connector Seal	-
45	R78063	1	Elec. Connector Seal	-
45	RE12363	1	Electrical Connector Assy	RIGHT STUBBLE LIGHT
45	R78060	1	Elec. Connector Terminal	-
46	R78056	1	Electrical Connector Assy	RH FEEDER HOUSE HARNESS
46	R78058	1	Elec. Connector Terminal	-
46	R78059	1	Elec. Connector Seal	-
47	57M7571	2	Elec. Connector Terminal	GROUNDS
48	-	1	Part 36	RH TURNING SIGNAL/WARNING LAMP
49	57M8156	1	Elec. Connector Housing	RIGHT MAIN HARNESS
49	57M7496	1	Elec. Connector Terminal	-
50	57M7693	1	Elec. Connector Housing	CAB MAIN
50	R78063	1	Elec. Connector Seal	-
51	57M7538	1	Elec. Connector Housing	CAN BUSS
51	57M7291	1	Electrical Connector Assy	-
52	H142169	6	Boot	-
53	57M7253	1	Elec. Connector Housing	HEADER CONTROL J1
53	R104701	1	Elec. Connector Terminal	-
54	57M7279	1	Elec. Connector Housing	HEADER CONTROL J2
54	R104701	1	Elec. Connector Terminal	-
55	-	1	Part 48	POWERBOARD J1
56	-	1	Part 49	POWERBOARD J2
57	-	1	Part 50	POWERBOARD J3
58	-	1	Part 51	POWERBOARD J4
59	57M7275	1	Elec. Connector Housing	LEFT CONTROL UNIT
59	R104701	1	Elec. Connector Terminal	-
60	57M7276	1	Elec. Connector Housing	LEFT CONTROL UNIT
60	57M7830	1	Elec. Connector Terminal	-
61	RE165032	1	Electronic Terminator	TERMINATOR (2.5 VOLTS), ORDER RE230324 AND RE207311
62	H118422	1	Elec. Connector Terminal	LH MIRROR
..	RE230324	1	Wiring Harness	INCLUDES 57M7285 AND R104846
..	57M7285	6	Elec. Connector Terminal	-
..	R104846	6	Elec. Connector Terminal	-
..	RE207311	1	Electronic Control Unit	-

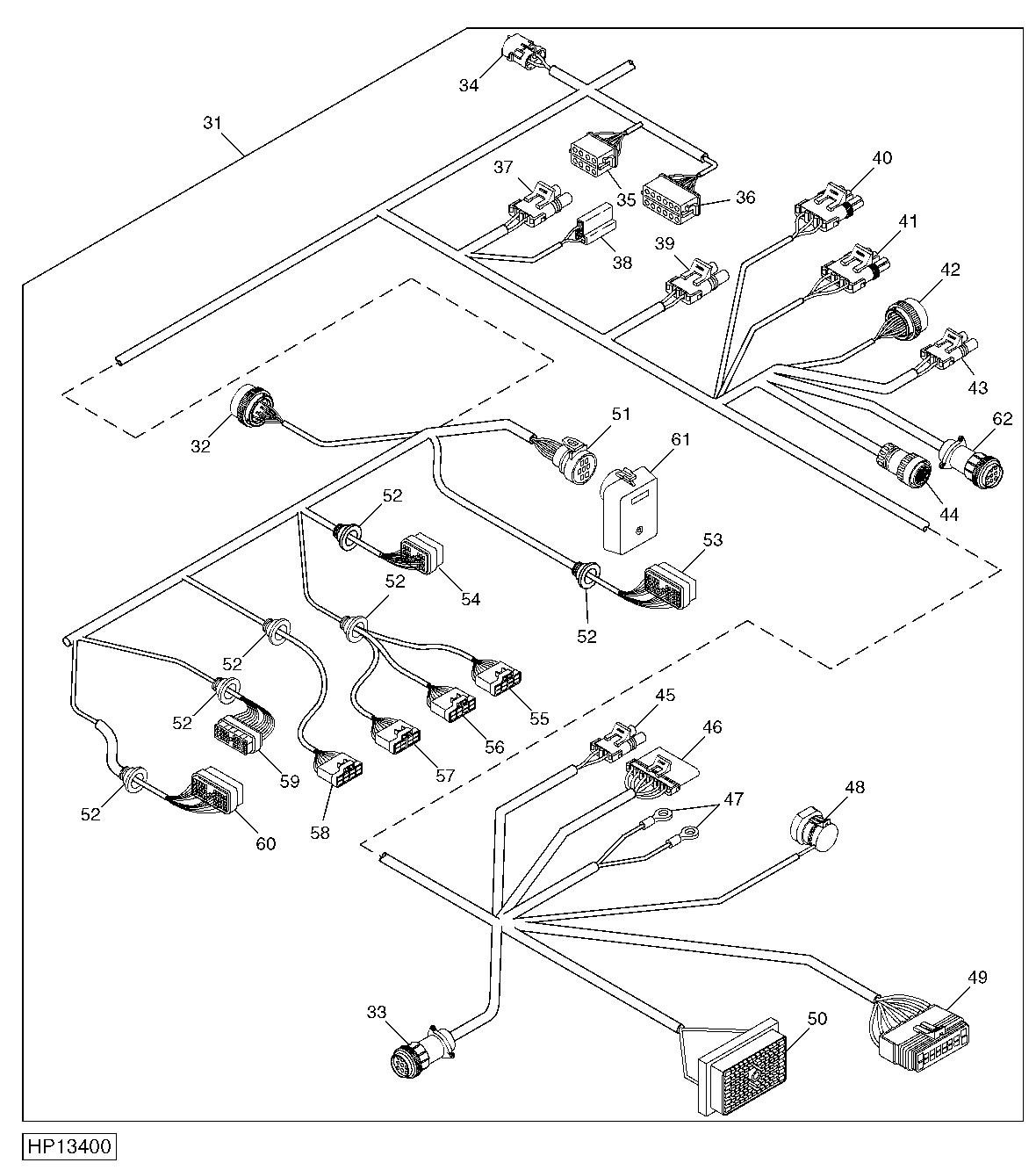

LH Main Wiring Harness - Continued ( - 710400)
