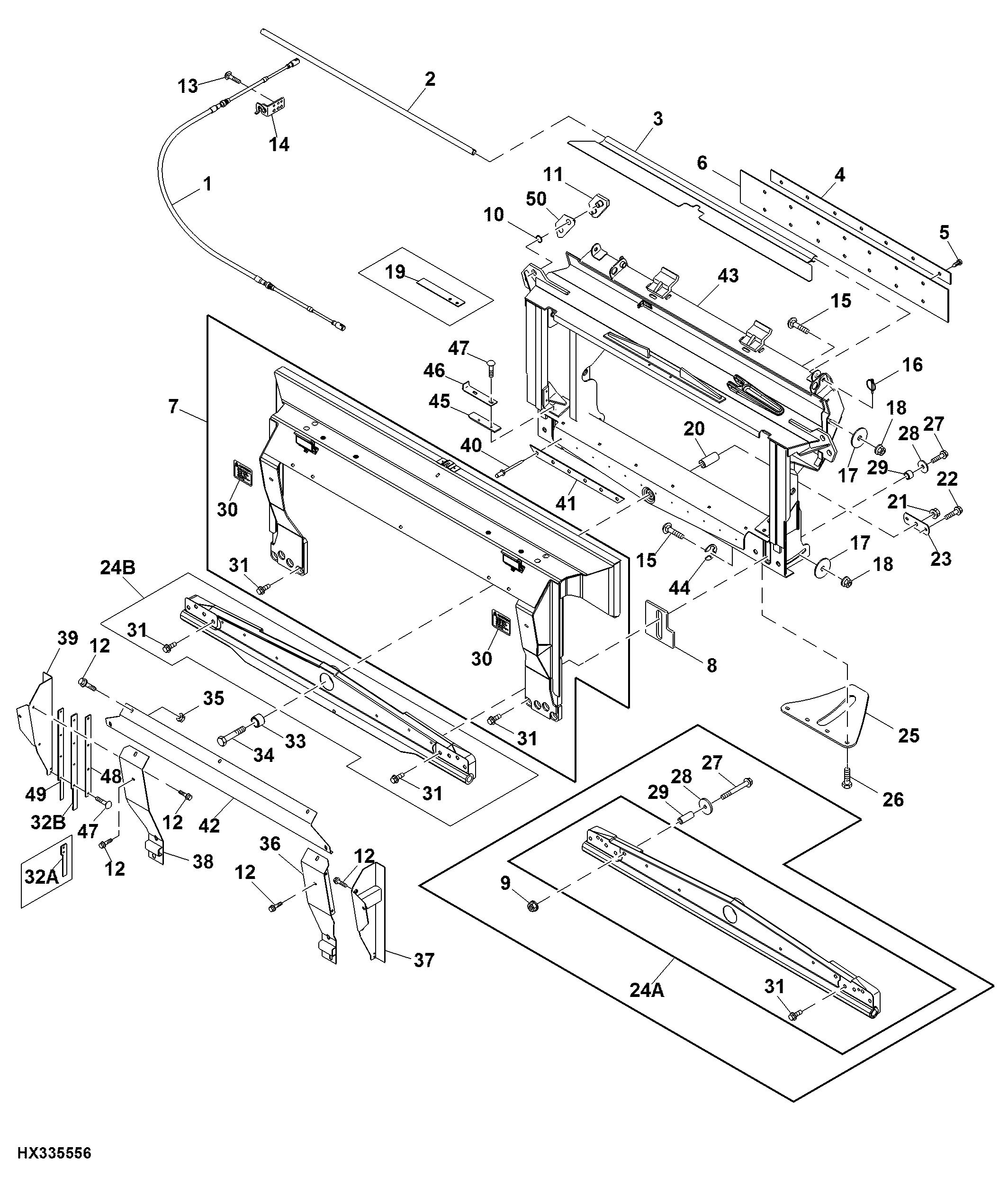

Feeder House Fore / Aft Pivot Frame (Contour Master)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH162587	1	Cable	-
2	H144825	1	Pipe	-
3	H172200	1	Seal	-
4	H219490	2	Reinforcement	(SUB FOR H171364)
5	37M7092	14	Screw	M8 X 16
6	H219544	1	Isolator	(SUB FOR H172198)
7	AH214678	1	Frame	(SUB FOR AH168659)
8	H149459	1	Wear Plate	LH
8	H149460	1	Wear Plate	RH
9	14M7299	2	Flange Nut	M12, (USE WITH AH207294)
10	R495R	2	O-Ring	-
11	H149461	2	Wear Plate	-
12	19M7784	1	Screw	M10 X 20
13	37M7089	1	Screw	M6 X 12
14	AH162585	1	Bracket	-
15	03M7388	6	Bolt	M16 X 70
16	M72598	2	Quick Lock Pin	-
17	24M7103	6	Washer	17.500 X 56 X 5 mm
18	14M7291	6	Flange Nut	M16
19	H206609	2	Strap	-
20	H149517	1	Bushing	-
21	14M7300	1	Flange Nut	M20
22	19M7788	2	Screw	M12 X 25
23	H149518	1	Strap	-
25	H177615	2	Plate	-
26	19M7789	8	Screw	M12 X 30
27	19M7815	2	Screw	M12 X 60, (USE WITH AH220095 OR AH234106)
27	19M7820	2	Screw	M12 X 100, (USE WITH AH207294)
28	E81185	2	Washer	-
29	28H3395	2	Bushing	0.546" X 0.840" X 1-1/4"
30	H151607	4	Sign	CAUTION
31	19M7844	8	Screw	M16 X 45
33	H142870	1	Bushing	-
34	19M7921	1	Cap Screw	M20 X 150
35	H135891	1	Lock Nut	-
36	AH222556	1	Shield	LH, (SUB FOR AH204008 AND AH219304)
37	AH204022	1	Support	LH
38	AH222557	1	Shield	RH, (SUB FOR AH204009 AND AH219305)
39	AH204023	1	Support	RH
40	M64720	12	Rivet	-
41	H162410	2	Strip	-
42	H178139	1	Panel	-
43	AH205161	1	Frame	-
44	H217347	1	Snap Ring	-
45	H206609	2	Strap	-
46	H218446	1	Angle	RH
46	H218447	1	Angle	LH
47	37M7090	1	Screw	M6 X 16
48	H218448	2	Plate	-
49	H218449	2	Plate	-
50	HXE104720	1	Plate	-
24A	AH207294	1	Frame	(SUB AH220095)
24B	AH234106	1	Frame	(SUB FOR AH220095 OR AH231550)ALSO ORDER AH220955
32A	H205353	2	Isolator	-
32B	H213074	2	Isolator	-
