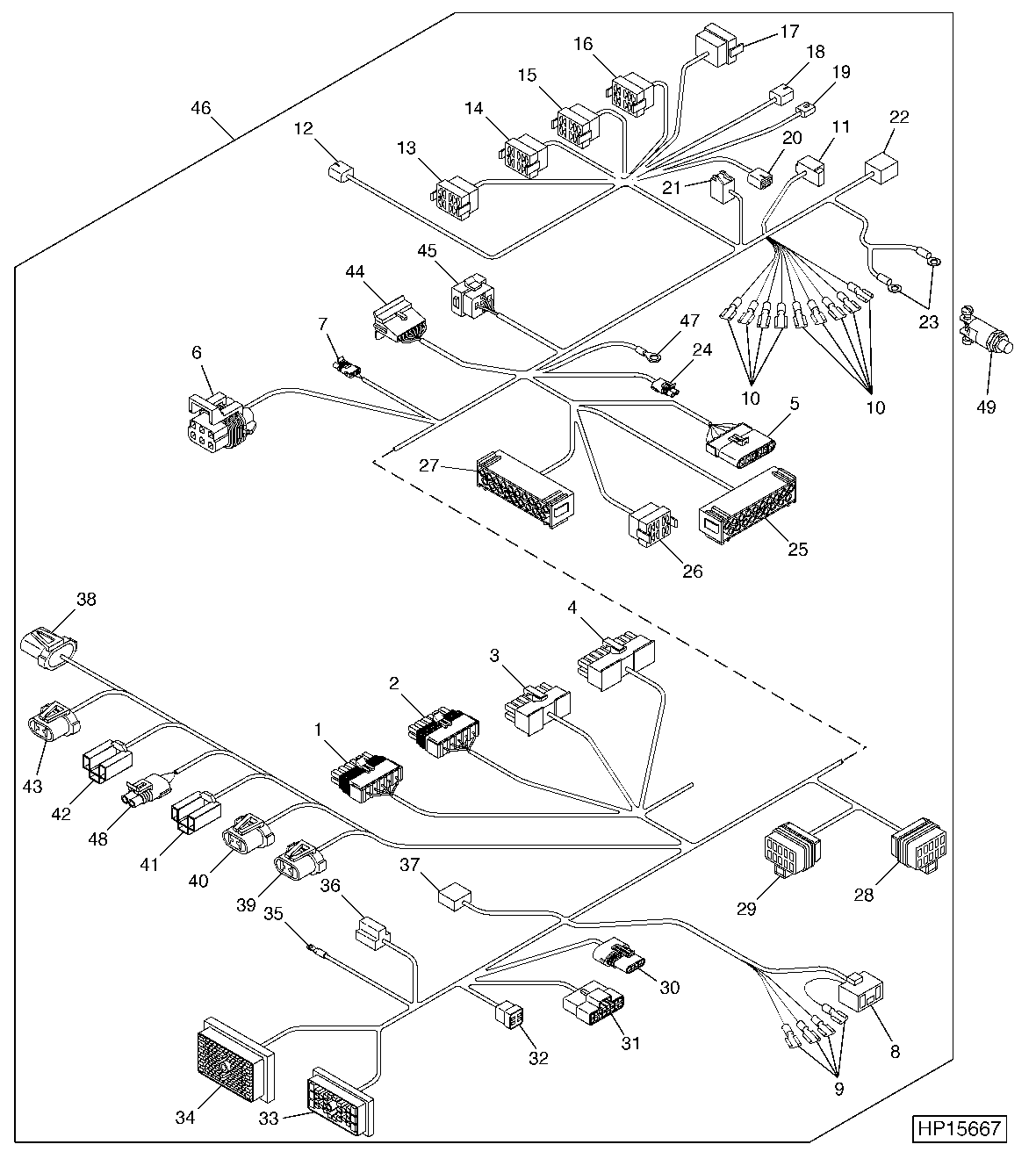

Main Cab Wiring Harness (CIS) ( - 715100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	CORNERPOST
2	-	1	Part 2	CORNERPOST
3	-	1	Part 3	CORNERPOST
4	57M8208	1	Connector	CORNERPOST
4	57M7285	1	Elec. Connector Terminal	-
4	57M7292	1	Elec. Connector Seal	-
5	57M8193	1	Electrical Connector Assy	PRINTER OUTLET
5	57M8326	1	Electrical Connector Assy	-
5	57M8611	1	Electrical Connector Assy	-
6	57M7260	1	Elec. Connector Housing	CAN BUSS TERMINATOR
6	57M7291	1	Electrical Connector Assy	-
7	RE12363	1	Electrical Connector Assy	PCRV
7	R78060	1	Elec. Connector Terminal	-
7	R78063	1	Elec. Connector Seal	-
8	R48887	1	Electrical Connector Assy	DOME LAMP SWITCH
9	-	1	Part 16	DOME/PANEL LIGHT
10	-	9	Part 17	REMOTE MIRRORS
11	-	1	Part 18	HEATER SWITCH
12	57M8270	1	Elec. Connector Housing	LAMP DIMMER
12	57M7500	1	Elec. Connector Terminal	-
13	57M7973	1	Electrical Connector Assy	HAZARD SWITCH
13	57M7429	1	Elec. Connector Terminal	-
14	57M7973	1	Electrical Connector Assy	ROAD SWITCH
14	57M7429	1	Elec. Connector Terminal	-
15	57M7973	1	Electrical Connector Assy	FIELD SWITCH
15	57M7429	1	Elec. Connector Terminal	-
16	57M7973	1	Electrical Connector Assy	STUBBLE/CHOPPER SWITCH
16	57M7429	1	Elec. Connector Terminal	-
17	57M7973	1	Electrical Connector Assy	MODE ATC ROCKER
17	57M7429	1	Elec. Connector Terminal	-
18	57M8270	1	Elec. Connector Housing	FAN SPEED
18	57M7500	1	Elec. Connector Terminal	-
19	57M7785	1	Elec. Connector Housing	AUTO FAN SWITCH
19	57M7500	1	Elec. Connector Terminal	-
19	57M7501	1	Elec. Connector Terminal	-
20	57M8270	1	Elec. Connector Housing	TEMP SET
20	57M7500	1	Elec. Connector Terminal	-
21	-	1	Part 38	RADIO
22	R104927	1	Electrical Connector Assy	LEFT SPEAKER
23	57M8283	2	Elec. Connector Terminal	DOOR SWITCH
24	R78063	1	Elec. Connector Seal	-
24	R78060	1	Elec. Connector Terminal	-
24	RE12363	1	Electrical Connector Assy	WIPER MOTOR
25	-	1	Part 44	WARNING DISPLAY PANEL J2
26	57M7973	1	Electrical Connector Assy	WIPER SWITCH
26	57M7429	1	Elec. Connector Terminal	-
27	-	1	Part 47	WARNING DISPLAY PANEL J1
28	57M7262	1	Elec. Connector Housing	GREENSTAR DISPLAY
28	R104846	1	Elec. Connector Terminal	-
28	R104701	1	Elec. Connector Terminal	-
28	57M7258	1	Elec. Connector Seal	-
29	57M8203	1	Electrical Connector Assy	MAPPING COMPUTER
29	R104846	1	Elec. Connector Terminal	-
29	57M7258	1	Elec. Connector Seal	-
29	57M7259	1	Elec. Connector Seal	-
30	57M7808	1	Elec. Connector Housing	A/C HARNESS

Main Cab Wiring Harness (CIS) ( - 715100)

Нет текстового описания
