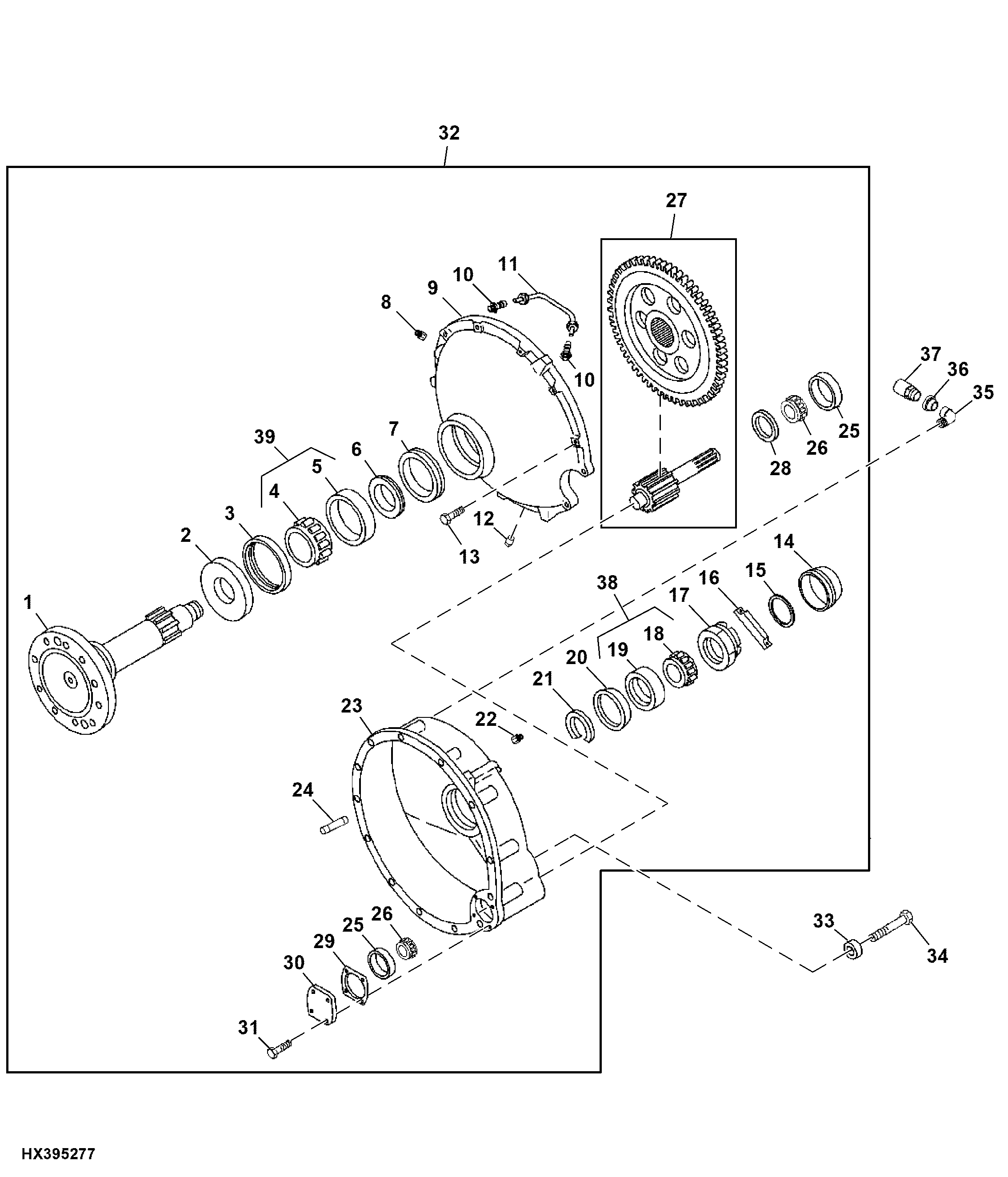

Final Drive, Single Reduction (Heavy Duty)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H201791	1	Spindle	-
2	AH112401	1	Seal	-
3	R90080	1	Oil Cup	-
4	AN372757	1	Tapered Roller Bearing	SUB FOR JD10134
5	N380472	1	Bearing Cup	SUB FOR JD10135
6	H161871	1	V-Ring Seal	-
7	AH155232	1	V-Ring Seal	-
8	JD7760	1	Lubrication Fitting	-
9	H163694	1	Housing	(OUTER)
10	R35352	2	Fitting	-
11	AH156971	1	Line	-
12	15H638	1	Pipe Plug	1/8"
13	19M7824	12	Screw	M16 X 60
14	H154720	1	Cap	-
15	H22784	1	Snap Ring	-
16	H125330	1	Shaft Key	-
17	H129854	1	Nut	-
18	JD10266	1	Bearing Cone	ORDER AXE63131
19	JD7298	1	Bearing Cup	ORDER AXE63131
20	H129557	1	Spacer	-
21	H118882	1	Snap Ring	-
22	15H584	1	Pipe Plug	1/2"
23	H225885	1	Housing	RH, (USE WITH AH224518)
23	H163692	1	Housing	(USE WITH AH205894) RH
23	H163693	1	Housing	(USE WITH AH205893) LH
23	H225886	1	Housing	LH, (USE WITH AH224517)
24	R54380	2	Dowel Pin	-
25	JD7278	2	Bearing Cup	-
26	JD7228	2	Bearing Cone	-
27	DE31426	1	Gear Kit	SUB FOR H167722 AND H167723
28	AH128391	1	Seal	-
29	H161543	1	Shim	THK = 0.13 MM (0.005") (PLASTIC), (BLUE)
29	H163745	1	Shim	THK = 0.07 MM (0.003") (PLASTIC) , (GREEN)
29	H161542	1	Shim	THK = 0.25 MM (0.010") (STEEL)
29	H161541	1	Shim	THK = 0.50 MM (0.020") (STEEL)
29	H133098	1	Shim	THK = 0.13 MM (PLASTIC), (BLUE)
29	H133097	1	Shim	THK = 0.25 MM (STEEL)
29	H133096	1	Shim	THK = 0.50 MM (STEEL)
30	H161540	1	Cap	-
31	19M7835	4	Screw	M10 X 35
32	DE31746	1	Drive	LH, (SUB FOR AH205893OR AH224517)
32	DE31747	1	Drive	RH, (SUB FOR AH205894 OR AH224518)
33	H163561	6	Spacer	-
34	19M7889	6	Cap Screw	M24 X 80
35	15H602	1	Elbow Fitting	1/2"
36	15H514	1	Pipe Bushing	1/8"
37	JD5801	1	Pressure Relief Fitting	-
38	AXE63131	1	Bearing Kit	-
39	AN400251	1	Bearing Kit	-

Final Drive, Single Reduction (Heavy Duty)
