FEEDER HOUSE FORE/AFT PIVOT FRAME (CONTOUR MASTER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH162588	1	Cable	-
2	H144824	1	Pipe	-
3	H172201	1	Seal	-
4	H220559	2	Reinforcement	(SUB FOR H171365)
5	37M7092	14	Screw	M8 X 16
6	H220554	1	Isolator	(SUB FOR H172199)
7	AH214678	1	Frame	(SUB FOR AH168659)
8	H149459	1	Wear Plate	LH
8	H149460	1	Wear Plate	RH
9	H169857	2	Isolator	-
10	R495R	2	O-Ring	-
11	H149461	2	Wear Plate	-
12	19M7784	1	Screw	M10 X 20
13	37M7089	1	Screw	M6 X 12
14	AH162585	1	Bracket	-
15	03M7388	6	Bolt	M16 X 70
16	M72598	2	Quick Lock Pin	-
17	24M7103	6	Washer	17.500 X 56 X 5 mm
18	14M7291	6	Flange Nut	M16
19	H207400	2	Seal	-
20	H149517	1	Bushing	-
21	14M7300	1	Flange Nut	M20
22	19M7788	2	Screw	M12 X 25
23	H149518	1	Strap	-
24	H178141	1	Bracket	-
25	H177615	2	Plate	-
26	19M7789	8	Screw	M12 X 30
27	19M7820	2	Screw	M12 X 100, (USE WITH AH207294)
27	19M7815	2	Screw	M12 X 60, (USE WITH AH220095 OR AH234106)
28	E81185	2	Washer	-
29	28H2618	1	Bushing	0.546" X 0.840" X 2-1/8"
30	H162411	1	Strip	-
31	19M7844	2	Screw	M16 X 45
32	M64720	12	Rivet	4.775 mm (3/16")
33	H142870	1	Bushing	-
34	19M7921	1	Cap Screw	M20 X 150
35	H135891	1	Lock Nut	-
36	AH205621	1	Frame	-
38	H213565	2	Seal	-
39	37M7131	6	Screw	M6 X 20
40	H217347	1	Snap Ring	-
41	AH235037	1	Pipe	(INCLUDES H238030 AND H144824)
42	H238030	2	Plug	-
43	14M7299	2	Flange Nut	M12, (USE WITH AH207294)
44	H151607	4	Sign	CAUTION
45	HXE104720	1	Plate	-
37A	AH207294	1	Frame	(SUB AH220095)
37B	AH234106	1	Frame	(SUB FOR AH220095 OR AH231550)ALSO ORDER AH220955

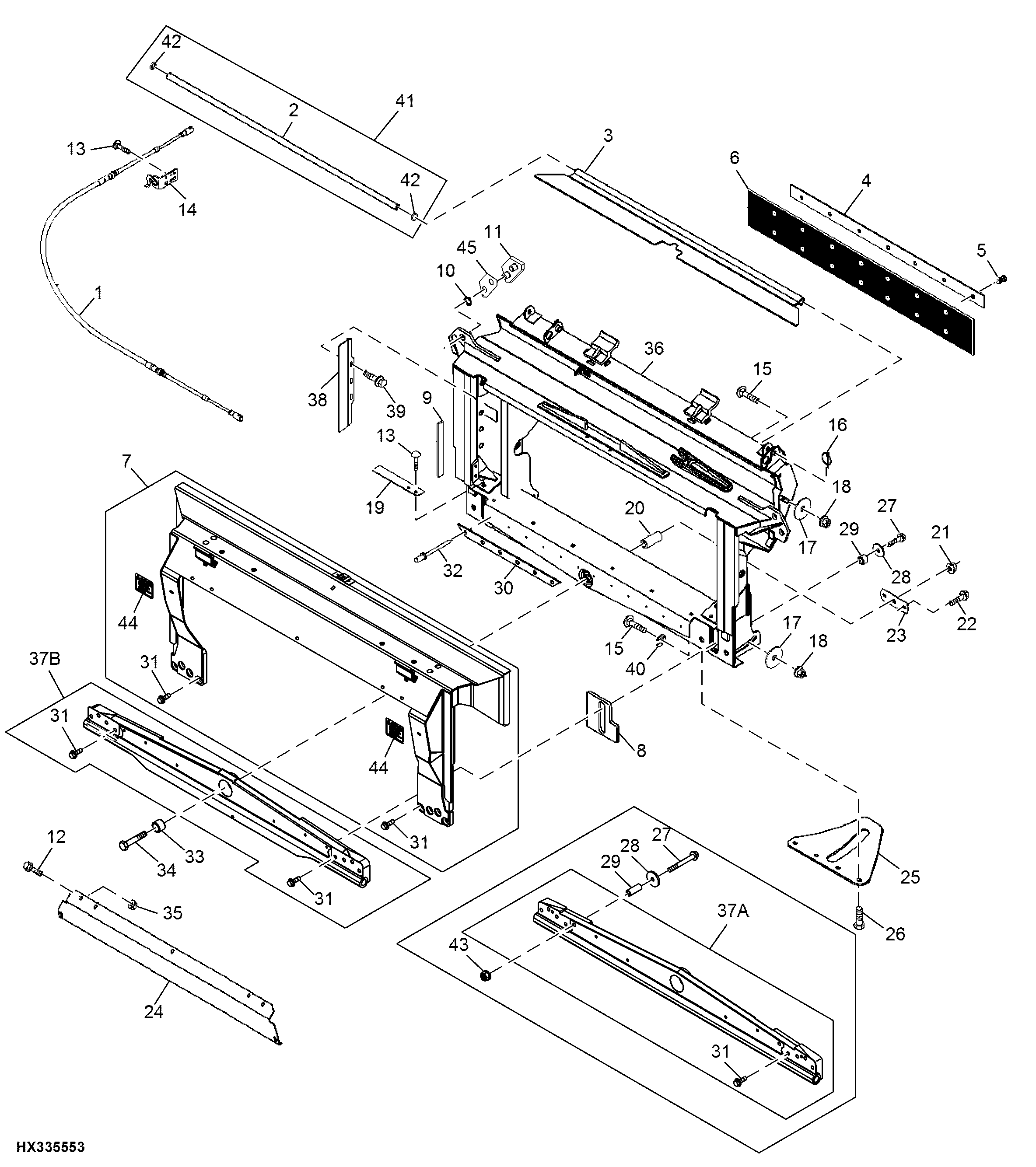

FEEDER HOUSE FORE/AFT PIVOT FRAME (CONTOUR MASTER)
