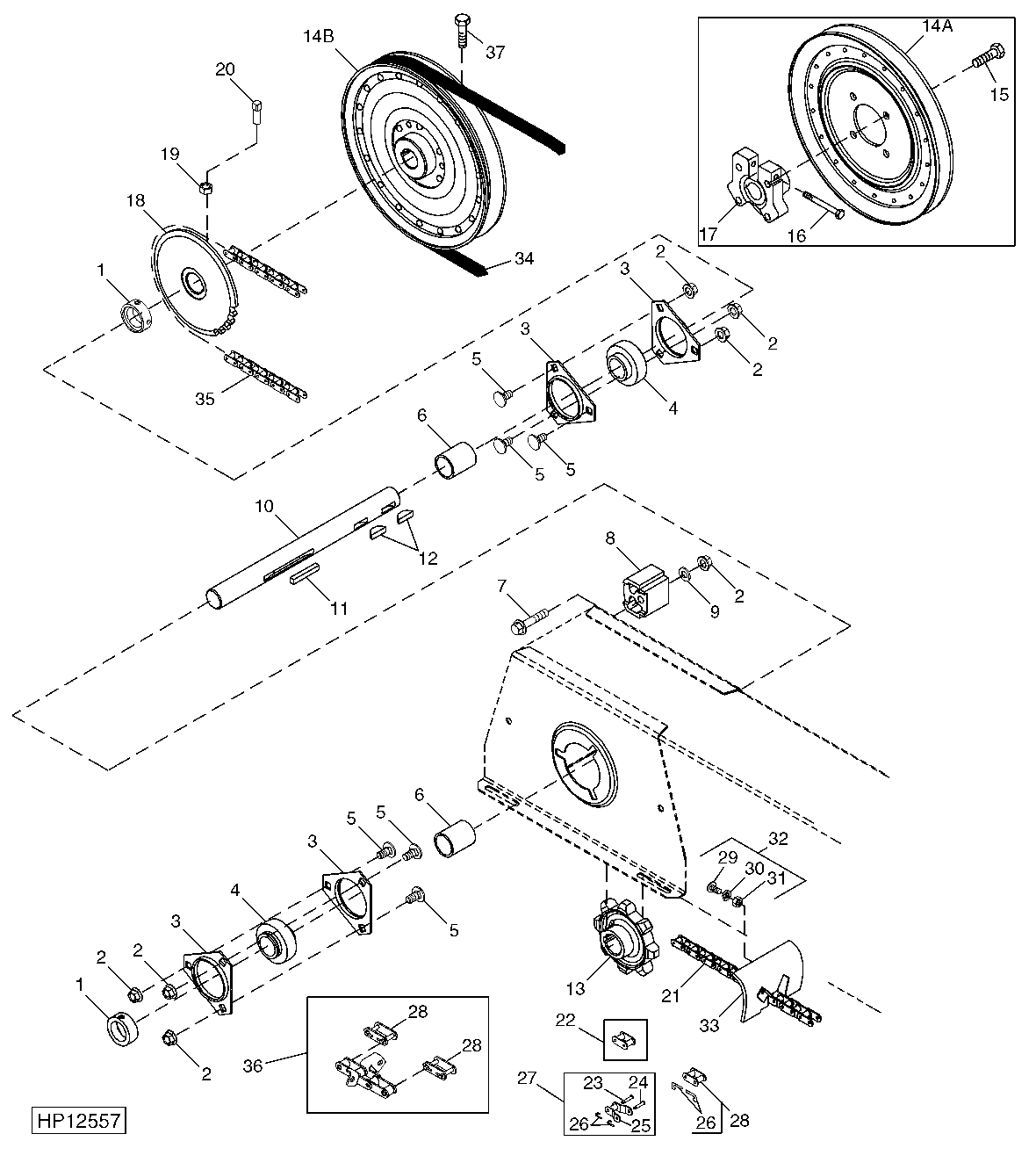

UPPER TAILINGS ELEVATOR SHAFT AND SHEAVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ10045	2	Eccentric Locking Collar	-
2	14M7296	1	Flange Nut	M10
3	E10018	4	Pressed Flanged Housing	-
4	JD10384	2	Bearing	SUB FOR JD39106
5	03M7190	6	Bolt	M10 X 20
6	H155427	2	Spacer	-
7	19M7807	1	Screw	M10 X 60
8	H109736	1	Tightener	-
9	24M7101	3	Washer	11 X 34 X 3 mm
10	H156938	1	Shaft	-
11	49M6480	1	Shaft Key	8 X 7 X 50 mm
12	26M4228	2	Shaft Key	8 X 28 mm
13	H177988	1	Sprocket Segments	(SUB FOR H128576)
15	19M7784	4	Screw	M10 X 20
16	19M7663	1	Cap Screw	M8 X 70
17	H134760	1	Hub	-
18	AH126008	1	Chain Sprocket	-
19	14M7274	1	Nut	M10
20	H138435	1	Set Screw	-
21	AH148021	1	Roller Chain	CA550 ROLLER CHAIN (19 PADDLES)
22	AH158635	1	Chain Link	ROLLER
23	-	1	Part 27	(ORDER AH137631)
24	-	1	Part 28	(ORDER AH137631)
25	-	1	Part 29	(ORDER AH137631)
26	H84026	1	Hook	-
27	AH137631	1	Chain Link	OFFSET
28	AH137630	1	Chain Link	COUPLER
29	H144971	1	Bolt	-
30	12H304	1	Lock Washer	3/8"
31	14H1076	1	Nut	3/8"
32	AH138947	1	Hardware Kit	(REPLACES RIVET)
33	H135235	19	Paddle	-
34	CP72	1	V-Belt	EDIBLE BEAN (SUB A-C72)
34	H154731	1	V-Belt	LGTH = 2100 mm, WIDTH = 22.4 mm
34	A-C72	1	V-Belt	EDIBLE BEAN
35	-	1	Part 41	(55 LINKS, 1 COUPLER) NO. 50 ROLLER (MAKE FROM SW50X50US OR AP22459 AND SW50COUS)
36	AH201047	1	Linkage Kit	CHAIN PADDLE ATTACH (550)
37	19M7513	1	Cap Screw	M8 X 30
..	BH84034	1	Complete Goods/Ship. Bundle	EDIBLE BEAN ELEVATOR SLOW DOWN DRIVE
14A	AH147396	1	Pulley	-
14A	AH147396	1	Pulley	-
14B	AH202007	1	Pulley	-
14B	AH202007	1	Pulley	-
14B	AH202006	1	Pulley	EDIBLE BEAN

UPPER TAILINGS ELEVATOR SHAFT AND SHEAVE
