Открытый узел

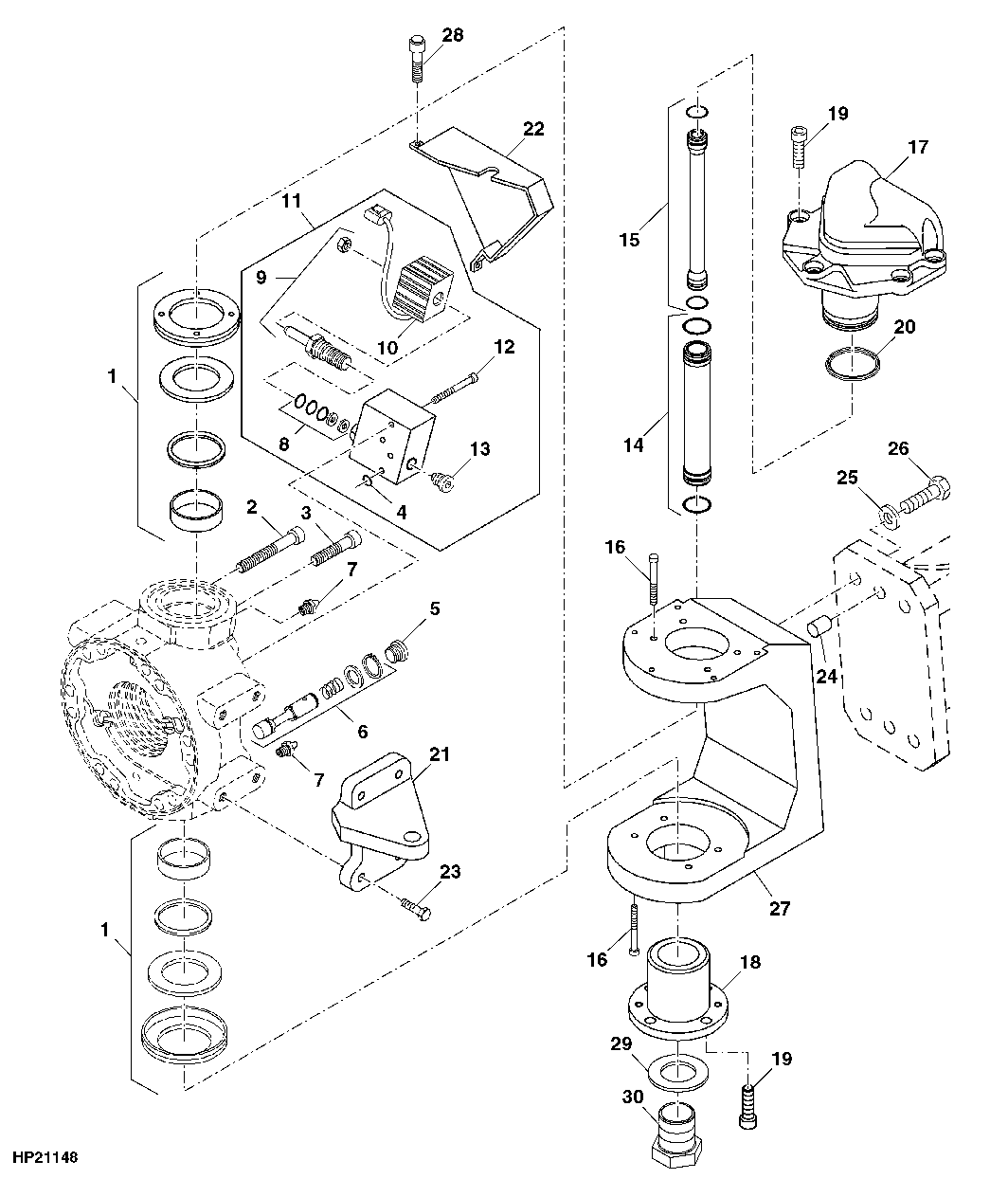

Two-Speed C Frame, Pivots And Caps-Motor (2096 CC)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE12312	2	Bushing Kit	(For 9650 (695501- ) & 9750 (695601- )) (SUB FOR AH169199)
2	H175439	6	Screw	(For 9650 (695501- ) & 9750 (695601- ))
3	H175441	4	Screw	(For 9650 (695501- ) & 9750 (695601- ))
4	T77613	4	O-Ring	(For 9650 (695501- ) & 9750 (695601- ))
5	AH169194	1	Plug	(For 9650 (695501- ) & 9750 (695601- ))
6	AH169195	1	Valve Spool	(For 9650 (695501- ) & 9750 (695601- ))
7	JD7806	2	Lubrication Fitting	(For 9650 (695501- ) & 9750 (695601- ))
8	AH209121	1	Seal Kit	(For 9650 (695501- ) & 9750 (695601- ))
9	AH209120	1	Valve	(For 9650 (695501- ) & 9750 (695601- )) (SUB FOR AH169204)
10	AH219822	1	Electrical Coil	(For 9650 (695501- ) & 9750 (695601- )) (USE WITH AXE13854 OR AH218391)
10	AH169203	1	Electrical Coil	(For 9650 (695501- ) & 9750 (695601- )) (USE WITH AH210373 OR AH210374)
11	AH219807	1	Valve	(For 9650 (695501- ) & 9750 (695601- )) (SUB FOR AH173807)
12	19M8513	4	Screw	(For 9650 (695501- ) & 9750 (695601- )) M6 X 40
13	64M1018	1	Drain Plug	(For 9650 (695501- ) & 9750 (695601- )) SUB FOR AH169205
14	AH169200	1	Oil Tube	(For 9650 (695501- ) & 9750 (695601- ))
15	AH169201	1	Oil Tube	(For 9650 (695501- ) & 9750 (695601- ))
16	19M8532	8	Screw	(For 9650 (695501- ) & 9750 (695601- )) M6 X 35
17	HXE18590	1	Pivot	(For 9650 (695501- ) & 9750 (695601- )) UPPER RH AND LH MOTOR
18	HXE18195	1	Pivot	(For 9650 (695501- ) & 9750 (695601- )) LOWER LH MOTOR
18	HXE18196	1	Pivot	(For 9650 (695501- ) & 9750 (695601- )) LOWER RH MOTOR
19	19M8440	9	Screw	(For 9650 (695501- ) & 9750 (695601- )) M10 X 25
20	H175444	1	Seal	(For 9650 (695501- ) & 9750 (695601- )) 1886 CC
20	AXE12311	1	Seal	(For 9650 (695501- ) & 9750 (695601- )) 2096 CC
21	H227051	1	Steering Arm	(For 9650 (695501- ) & 9750 (695601- )) L.H. MOTOR (SUB FOR H169431)
21	H227050	1	Steering Arm	(For 9650 (695501- ) & 9750 (695601- )) R.H. MOTOR (SUB FOR H169430)
22	H175446	1	Valve Cover	(For 9650 (695501- ) & 9750 (695601- ))
23	19M7946	4	Cap Screw	(For 9650 (695501- ) & 9750 (695601- )) M20 X 40
24	H75423	2	Pin Fastener	(For 9650 (695501- ) & 9750 (695601- ))
25	H174025	5	Spacer	(For 9650 (695501- ) & 9750 (695601- ))
25	H210869	5	Spacer	(For 9650 (695501- ) & 9750 (695601- ))
26	19M9293	5	Cap Screw	(For 9650 (695501- ) & 9750 (695601- )) M20 X 55
26	19M9338	5	Cap Screw	(For 9650 (695501- ) & 9750 (695601- )) M20 X 70
27	HXE14302	2	Yoke	(For 9650 (695501- ) & 9750 (695601- )) (SUB FOR H211268) C-FRAME
28	19M9492	2	Screw	(For 9650 (695501- ) & 9750 (695601- )) M8 X 12
29	24H1452	1	Washer	(For 9650 (695501- ) & 9750 (695601- )) 1-1/32" X 1-3/4" X 0.105", LH MOTOR ONLY
30	N375572	1	Bolt	(For 9650 (695501- ) & 9750 (695601- )) LH MOTOR ONLY
