Circuit Breaker, Relay, and ECU Panel

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH160291	1	Panel	(For 9650 ( -695500) & 9750 ( -695600))
2	AH112189	5	Circuit Breaker	(For 9650 ( -695500) & 9750 ( -695600)) 50 AMP
3	AH159105	1	Circuit Breaker	(For 9650 ( -695500) & 9750 ( -695600)) Dual 50 AMP
4	H125347	2	Strap	(For 9650 ( -695500) & 9750 ( -695600))
5	H164872	4	Nut	(For 9650 ( -695500) & 9750 ( -695600)) 7.925 mm (5/16")
6	H162132	1	Flap	(For 9650 ( -695500) & 9750 ( -695600)) Rubber
7	H116740	2	Plug	(For 9650 ( -695500) & 9750 ( -695600))
8	R32176	10	Nut	(For 9650 ( -695500) & 9750 ( -695600)) SUB 12M7060 AND 14H631
9	H166499	1	Strap	(For 9650 ( -695500) & 9750 ( -695600))
10	H165411	1	Strap	(For 9650 ( -695500) & 9750 ( -695600))
11	AH160278	3	Relay	(For 9650 ( -695500) & 9750 ( -695600))
12	AH160628	2	Circuit Breaker	(For 9650 ( -695500) & 9750 ( -695600)) 30 AMP
13	AH90990	2	Clip	(For 9650 ( -695500) & 9750 ( -695600))
14	AH159110	1	Circuit Breaker	(For 9650 ( -695500) & 9750 ( -695600)) 10 AMP
15	37H147	1	Screw	(For 9650 ( -695500) & 9750 ( -695600))
16	19M7865	3	Screw	(For 9650 ( -695500) & 9750 ( -695600)) M8 X 16
17	14M7298	3	Flange Nut	(For 9650 ( -695500) & 9750 ( -695600)) M8
18	H158845	2	Washer	(For 9650 ( -695500) & 9750 ( -695600))
19	19M8145	4	Screw	(For 9650 ( -695500) & 9750 ( -695600)) M6 X 80
20	28H1882	4	Spacer	(For 9650 ( -695500) & 9750 ( -695600)) 0.269" X 0.405" X 1/2"

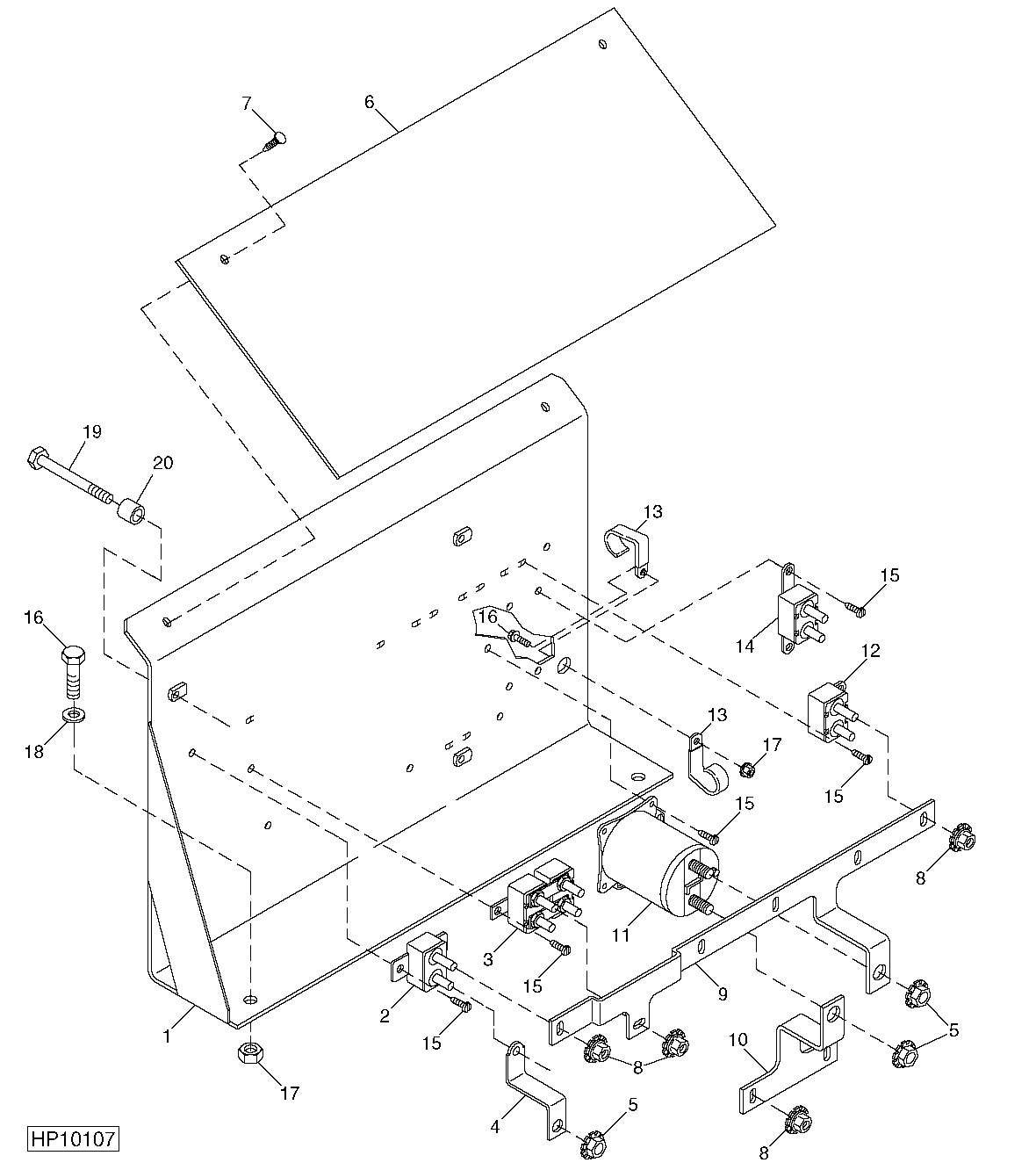

Circuit Breaker, Relay, and ECU Panel
