Открытый узел

Chopper Housing and Counter Knife

Chopper Housing and Counter Knife

Chopper Housing and Counter Knife

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

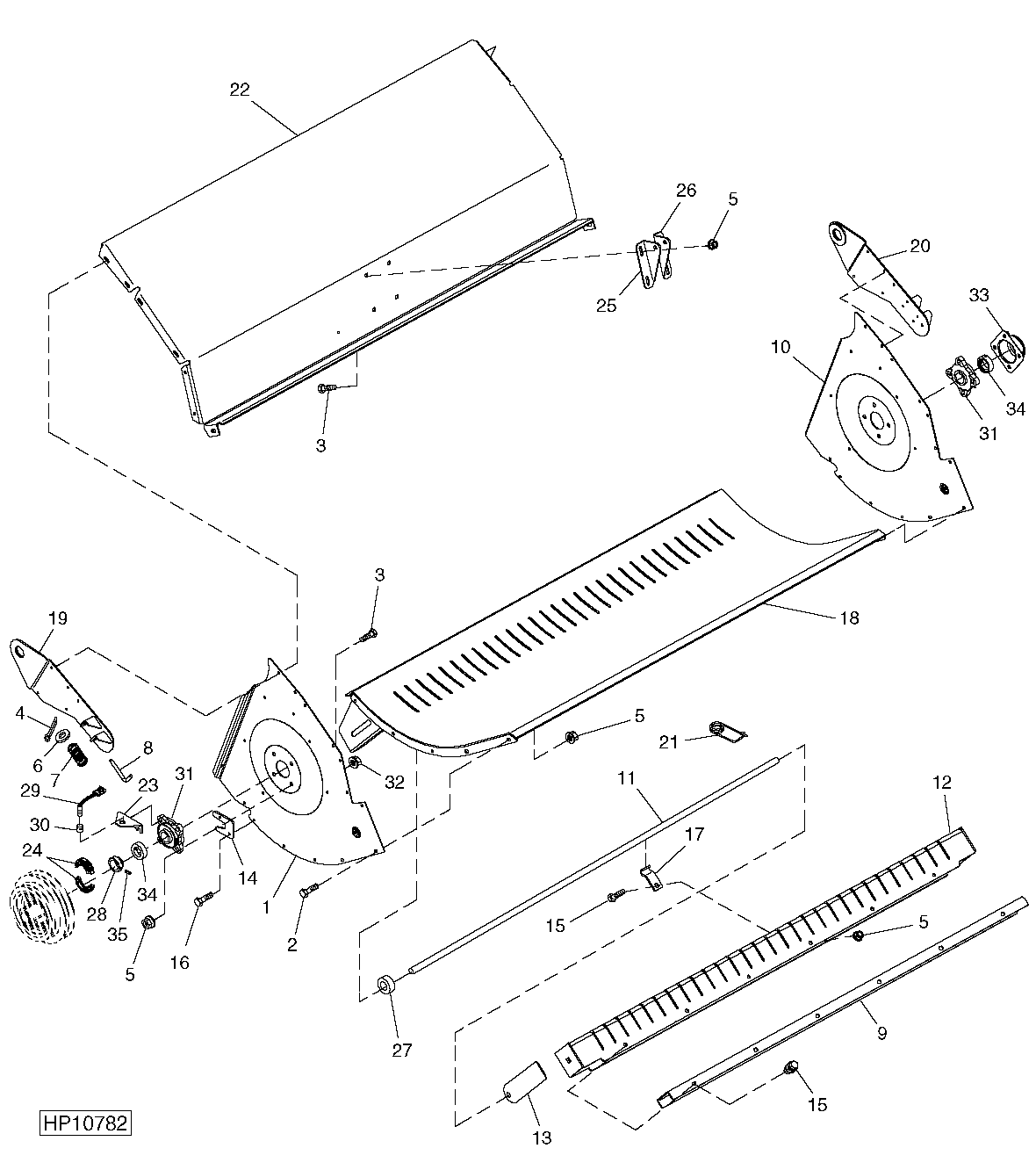

Chopper Housing and Counter Knife

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H157480	1	Sheet	(For 9650 ( -700500) & 9750 ( -700600)) LH
2	19M7866	1	Screw	(For 9650 ( -700500) & 9750 ( -700600)) M8 X 20
3	03M7184	1	Bolt	(For 9650 ( -700500) & 9750 ( -700600)) M8 X 20
4	11M7023	2	Cotter Pin	(For 9650 ( -700500) & 9750 ( -700600)) 4 X 32 mm
5	14M7298	1	Flange Nut	(For 9650 ( -700500) & 9750 ( -700600)) M8
6	24H1139	2	Washer	(For 9650 ( -700500) & 9750 ( -700600)) 11/16" X 1-1/4" X 0.105"
7	M113254	2	Compression Spring	(For 9650 ( -700500) & 9750 ( -700600))
8	H165584	2	Pin	(For 9650 ( -700500) & 9750 ( -700600))
9	H157042	1	Support	(For 9650 ( -700500) & 9750 ( -700600)) FINE CUT CHOPPER
10	H157481	1	Sheet	(For 9650 ( -700500) & 9750 ( -700600)) RH
11	H206215	1	Crossbar	(For 9650 ( -700500) & 9750 ( -700600))
11	H172439	1	Pin Fastener	(For 9650 ( -700500) & 9750 ( -700600)) (SUB H206215)
12	AH158821	1	Channel	(For 9650 ( -700500) & 9750 ( -700600))
13	H215004	29	Blade	(For 9650 ( -700500) & 9750 ( -700600)) (SUB FOR H142141)
14	H167457	2	Plate	(For 9650 ( -700500) & 9750 ( -700600))
15	19M7867	14	Screw	(For 9650 ( -700500) & 9750 ( -700600)) M8 X 25
16	03M7201	2	Bolt	(For 9650 ( -700500) & 9750 ( -700600)) M12 X 45
17	H157103	7	Clip	(For 9650 ( -700500) & 9750 ( -700600)) FINE CUT ONLY
18	AH149878	1	Floor	(For 9650 ( -700500) & 9750 ( -700600))
19	AH165094	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600)) LH
20	AH165095	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600)) RH
21	H114001	1	Quick Lock Pin	(For 9650 ( -700500) & 9750 ( -700600))
22	H157482	1	Sheet	(For 9650 ( -700500) & 9750 ( -700600))
23	H169910	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600))
24	AH161839	1	Magnet	(For 9650 ( -700500) & 9750 ( -700600))
25	H157488	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600)) (USE WITH AH149880)
25	H208584	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600)) (USE WITH AH209992)
26	H157487	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600)) (USE WITH AH149880)
26	H208584	1	Bracket	(For 9650 ( -700500) & 9750 ( -700600)) (USE WITH AH209992)
27	N110219	1	Bushing	(For 9650 ( -700500) & 9750 ( -700600))
28	H169947	1	Sleeve	(For 9650 ( -700500) & 9750 ( -700600))
29	AH116104	1	Sensor	(For 9650 ( -700500) & 9750 ( -700600))
30	H160880	1	Clip	(For 9650 ( -700500) & 9750 ( -700600))
31	AH163595	2	Bearing With Housing	(For 9650 ( -700500) & 9750 ( -700600))
32	14M7299	2	Flange Nut	(For 9650 ( -700500) & 9750 ( -700600)) M12
33	H169879	1	Cover	(For 9650 ( -700500) & 9750 ( -700600))
34	JD9201	2	Eccentric Locking Collar	(For 9650 ( -700500) & 9750 ( -700600))
35	22M7079	1	Set Screw	(For 9650 ( -700500) & 9750 ( -700600)) M6 X 6
