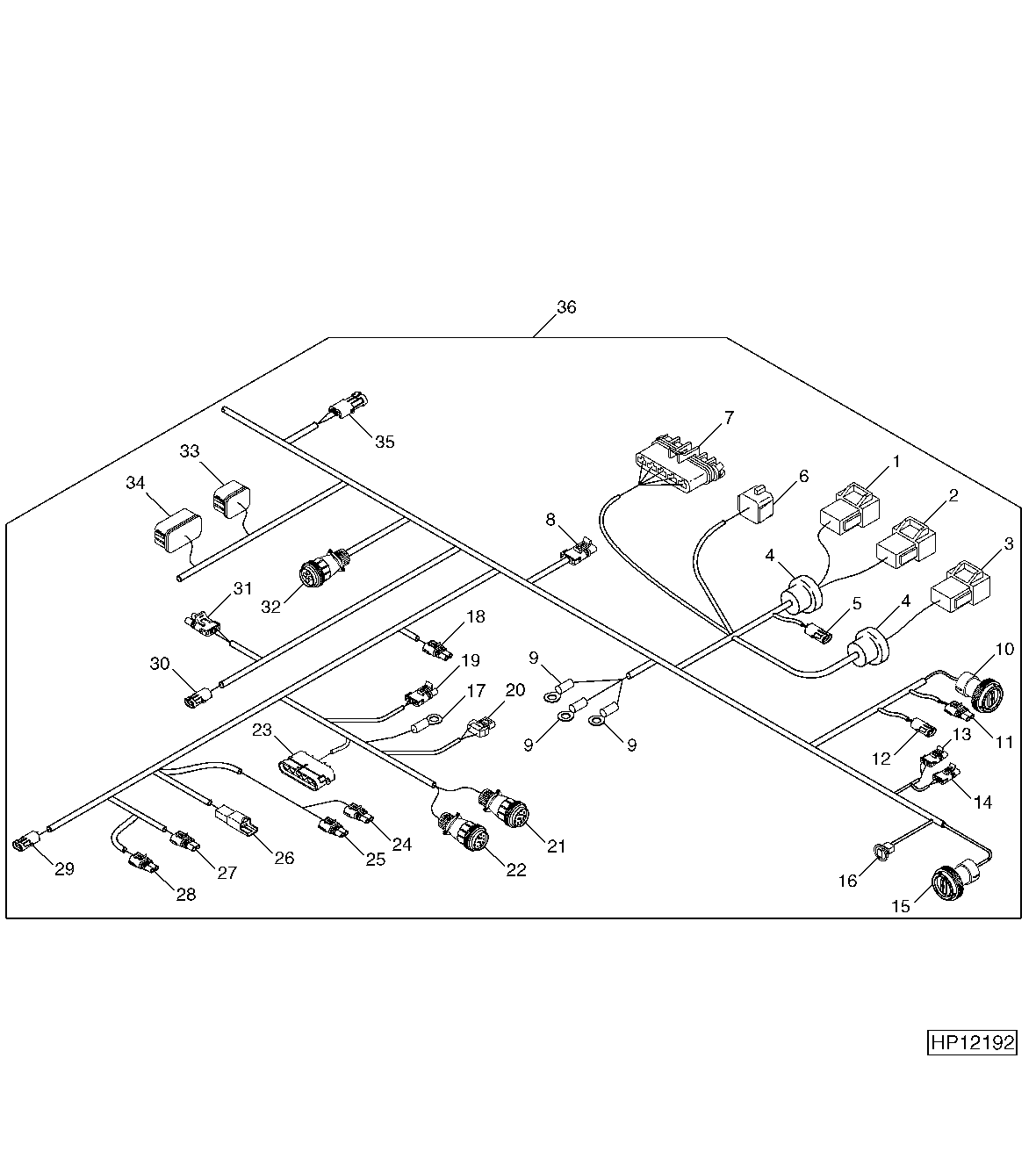

L.H. Main Wiring Harness (700301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	RELAY PANEL
2	-	1	Part 2	RELAY PANEL
3	-	1	Part 3	RELAY PANEL
4	H142169	1	Boot	-
5	-	1	Part 5	WALKER PLUG SWITCH
6	-	1	Part 6	ENGINE HARNESS
7	-	1	Part 7	ENGINE HARNESS
8	-	2	Part 8	HYDRO CHARGE PRESSURE
9	-	1	Part 9	GROUND ON LEFT REAR SIDE
10	-	1	Part 10	L.H. REAR AMBER TURN/ MARKER LAMP
11	-	1	Part 11	L.H. ASAE WARNING LAMP
12	-	1	Part 12	LEFT REAR DISCHARGE LIGHT
13	-	1	Part 13	STRAW CHOPPER LSSM
14	-	1	Part 14	CHOPPER LSSM SHORTING PLUG
15	-	1	Part 15	L.H. TAIL/BRAKE RED SIGNAL
16	-	1	Part 16	L.H. REAR SIDE MARKER RED LAMP
17	-	3	Part 17	VALVE STACK GROUND
18	-	1	Part 18	WALKER SPEED LSSM
19	-	1	Part 19	DROP RATE VALVE COIL
20	-	1	Part 20	LEFT SHOE LAMP
21	-	1	Part 21	VALVE STACK
22	-	2	Part 22	VALVE STACK
23	-	1	Part 23	SIDEHILL HARNESS
24	-	1	Part 24	GULLWING SWITCH
25	-	1	Part 25	SHOE LIGHT SWITCH
26	-	1	Part 26	FAN SPEED ACTUATOR
27	-	1	Part 27	POWERED REAR WHEELS
28	-	1	Part 28	TWO SPEED FOUR WHEEL DRIVE
29	-	1	Part 29	CLEAN GRAIN ELEVATOR LSSM
30	-	3	Part 30	GROUND SPEED SENSOR
31	-	1	Part 31	CONVEYOR AUGER LSSM
32	-	1	Part 32	REEL SPEED ACTUATOR
33	-	1	Part 33	SLAVE TAILINGS SENSOR
34	-	1	Part 34	MASTER TAILINGS SENSOR
35	-	1	Part 35	GULLWING SERVICE LIGHT
36	AH211723	1	Wiring Harness	(SUB FOR AH201305)

L.H. Main Wiring Harness (700301 - )
