Fuel Injection Pump, Lube Line and Engine Controller ( - 199999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE502404	1	Engine Controller	(ORDER BY APPLICATION AND ESN) (MARKED RE502404 OR RE66614) (SUB FOR RE503234 OR RE507728)
2	R51936	3	Sealing Washer	-
2	R51936	2	Sealing Washer	-
4	RE502650	1	Fitting	(SUB FOR R63604)
5	R121195	1	Cap Screw	-
6	R121164	1	Gear	-
7	R76358	1	O-Ring	-
8	R515224	4	Stud	(SUB FOR R114130)
9	RE67934	1	Adapter Fitting	-
10	24M7239	4	Washer	10.700 X 21 X 2.500 mm, (SUB FOR M72490)
11	14H1090	4	Nut	3/8"
12	AR88903	1	Elbow Fitting	-
13	R67264	2	Packing	-
14	R79060	1	O-Ring	-
15	R67264	1	Packing	-
16	RE509065	1	Oil Line	(SUB FOR RE60577)
17	T18012	1	Elbow Fitting	-
18	RE46252	1	Fuel Pump	-
19	51M4238	1	Sealing Ring	(SUB FOR R53899)
20	RE506424	1	Fuel Temperature Sensor	(SUB FOR RE28217) (ALSO ORDER 57M7278, (2) 57M7289 AND 51M4238) (TEMPERATURE)
21	R98500	1	O-Ring	-
22	R99047	1	O-Ring	-
23	R89014	1	Solenoid	(SHUT-OFF HOUSING)
24	RE61658	1	Fuel Injection Pump	-
24	SE500363	1	Fuel Injection Pump Reman	(ROBERT BOSCH) (PES6P120A702RS7315) (REMAN FOR RE61658)
24	RE503345	1	Fuel Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") (ROBERT BOSCH) (SUB SE500364, (3) R504303, R504304, (3) 14M7272 AND (3) 12M7006)
24	RE507686	1	Fuel Injection Pump	(ROBERT BOSCH)
24	SE500364	1	Fuel Injection Pump Reman	(REMAN FOR RE507686 OR RE503345)
25	12H296	1	Washer	0.216"
26	14M7297	1	Nut	M5
3A	RE504635	1	Fuel Line	-
3B	RE504748	1	Fuel Line	-

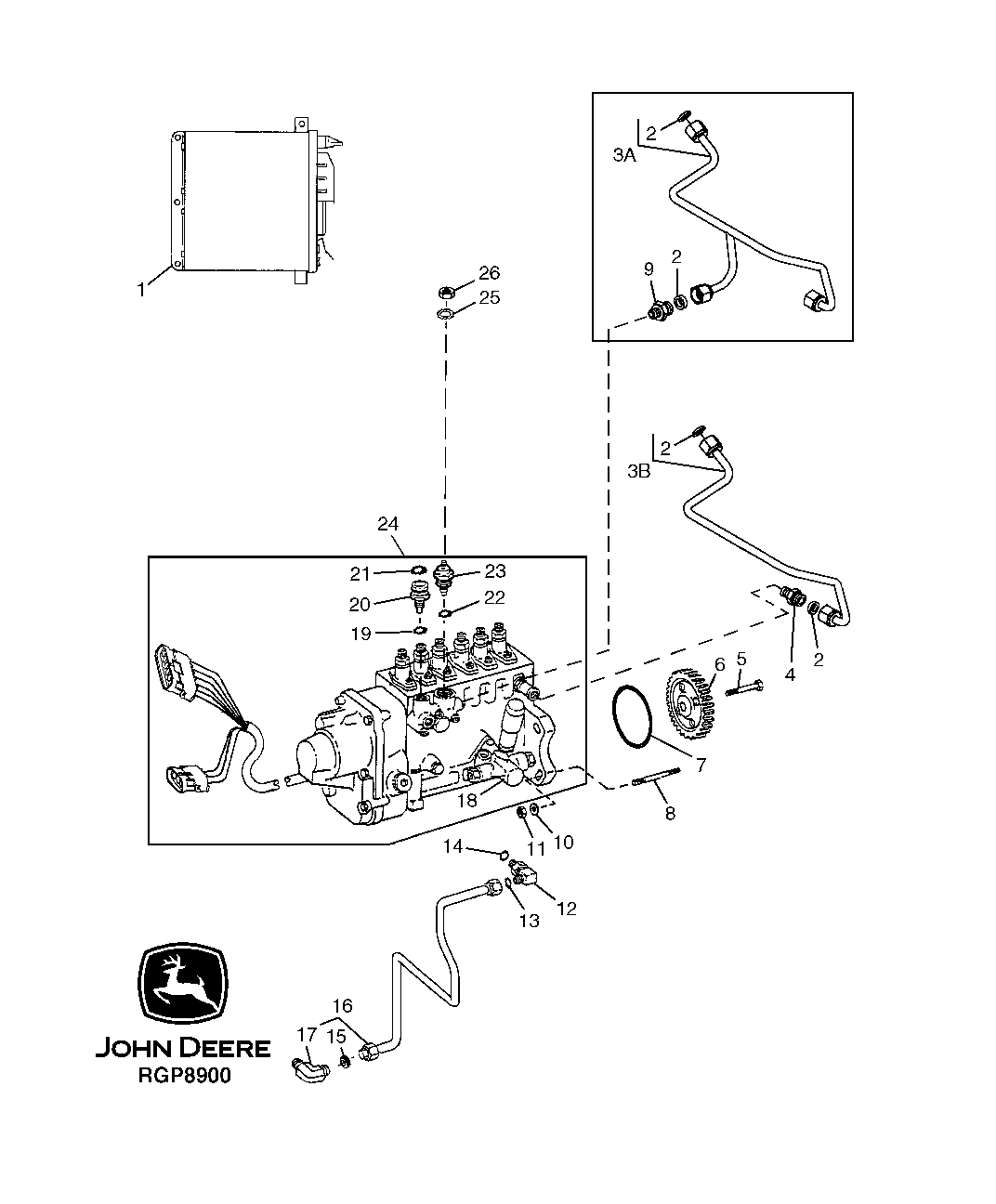

Fuel Injection Pump, Lube Line and Engine Controller ( - 199999)
