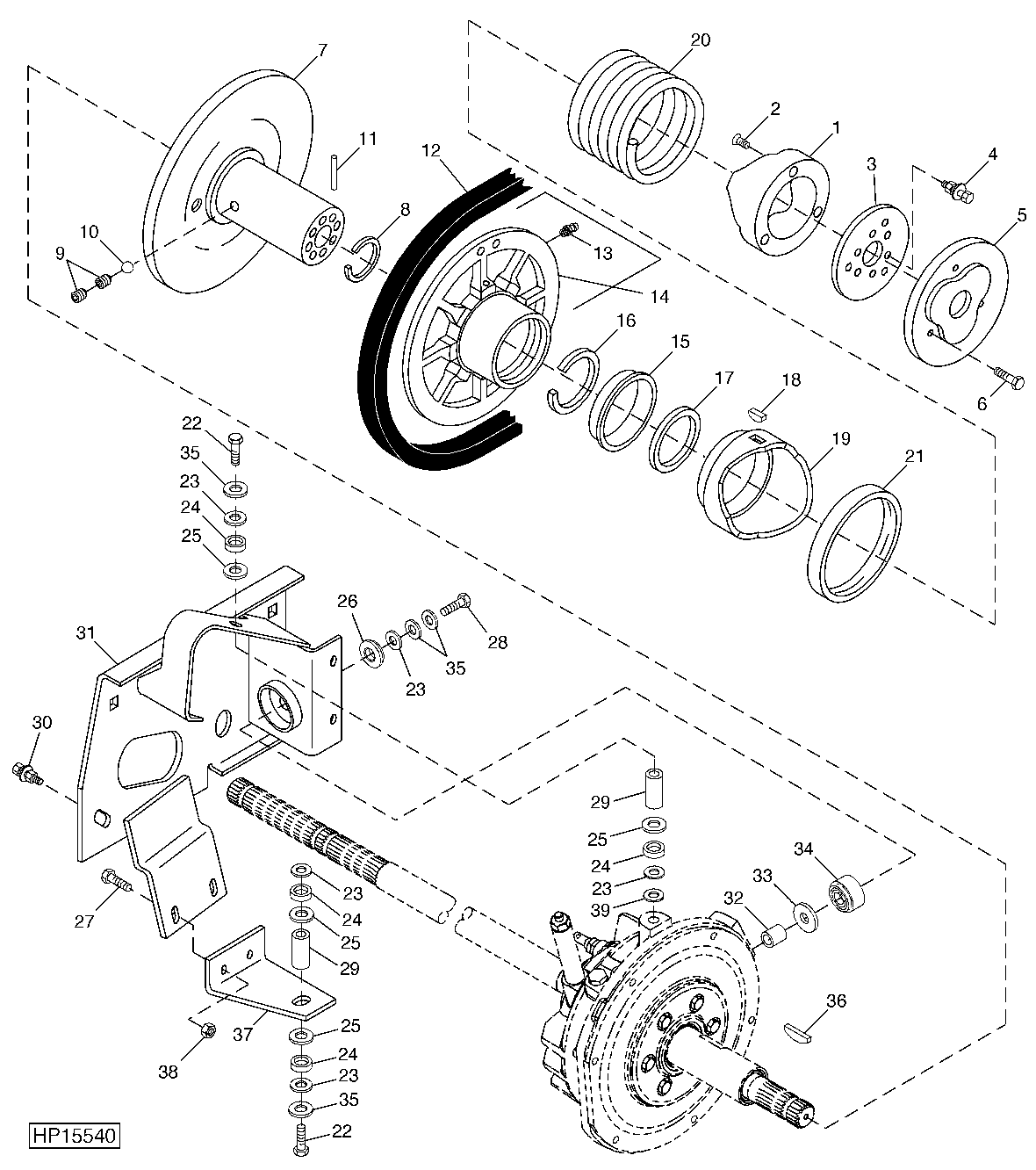

FRONT DRIVE SHAFT, SHEAVE AND MOUNTINGS (VARIABLE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(B) 42 DEGREE (OUTER)
1	-	1	Part 1	(A) 45 DEGREE (OUTER)
2	32243	1	Plug	-
3	H170645	1	Washer	-
4	19M7938	6	Cap Screw	M10 X 20, (A) (B)
4	12M7135	6	Lock Washer	10 mm, (A) (B)
5	H155459	1	Retainer	-
6	19M9042	3	Cap Screw	M10 X 80, (A) (B)
6	12M7135	3	Lock Washer	10 mm, (A) (B)
7	H158575	1	Pulley	(HIGH CAPACITY)
7	H168126	1	Pulley	(STANDARD CAPACITY)
7	H201579	1	Half Sheave	(STANDARD CAPACITY)
8	B3118R	1	Snap Ring	-
9	22H775	2	Set Screw	5/16" X 1/4"
10	H110922	1	Ball	-
11	34M7255	1	Spring Pin	6 X 50 mm
12	H218728	1	V-Belt	(HIGH CAPACITY) (SUB FOR H156863)
12	H161648	1	V-Belt	(STANDARD CAPACITY)
13	JD7798	2	Lubrication Fitting	-
14	AH160615	1	Pulley	(HIGH CAPACITY) (SUB AH201415)
14	AH157933	1	Pulley	(STANDARD CAPACITY) (SUB AH201417)
14	AH201415	1	Pulley	(HIGH CAPACITY)
14	AH201417	1	Pulley	(STANDARD CAPACITY)
15	H110728	1	Round Retainer	(A) (B)
16	H97308	1	Snap Ring	(A) (B)
17	AH108161	1	Seal	(A) (B)
18	26H104	2	Shaft Key	(HIGH CAPACITY) 5/16" X 2-1/8", (A) (B)
18	26H104	1	Shaft Key	(STANDARD CAPACITY) 5/16" X 2-1/8", (A) (B)
19	-	1	Part 29	(A) 45 DEGREE (INNER)
19	-	1	Part 30	(B) 42 DEGREE (INNER)
20	H172267	1	Compression Spring	-
21	AH96345	1	Seal	(A) (B)
22	19M7826	2	Screw	(HIGH CAPACITY) M16 X 70
22	19M7826	1	Screw	(STANDARD CAPACITY) M16 X 70
23	H163726	5	Washer	(HIGH CAPACITY)
23	H163726	3	Washer	(STANDARD CAPACITY)
24	H148132	4	Bushing	(HIGH CAPACITY)
24	H148132	2	Bushing	(STANDARD CAPACITY)
25	H148133	4	Retainer	(HIGH CAPACITY)
25	H148133	2	Retainer	(STANDARD CAPACITY)
26	T55761	1	Support	-
27	03M7198	2	Bolt	(HIGH CAPACITY) M12 X 30
28	19M7845	1	Screw	M16 X 90
29	Z64078	1	Spacer	-
30	14M7296	5	Flange Nut	M10
30	03M7192	1	Bolt	M10 X 30
30	03M7191	4	Bolt	M10 X 25
31	AH150451	1	Support	-
32	H95417	1	Spacer	-
33	H97410	1	Washer	-
34	R62502	1	Support	-
35	24M7241	4	Washer	(HIGH CAPACITY) 17 X 34 X 4 mm
35	24M7241	2	Washer	(STANDARD CAPACITY) 17 X 34 X 4 mm
36	26H104	2	Shaft Key	5/16" X 2-1/8"
36	Z61818	2	Shaft Key	-
37	H159818	1	Bracket	(HIGH CAPACITY)
38	14M7299	2	Flange Nut	(HIGH CAPACITY) M12
39	24H1626	1	Washer	21/32" X 2" X 0.060"
..	AH232574	1	Cam Kit	45 DEGREE CAMS (INCLUDES PARTS MARKED (A)) (SUB FOR AH154890 OR AH213113)
..	AH232575	1	Cam Kit	42 DEGREE CAMS (INCLUDES PARTS MARKED (B)) (SUB FOR AH201888 OR AH213114)

FRONT DRIVE SHAFT, SHEAVE AND MOUNTINGS (VARIABLE)
