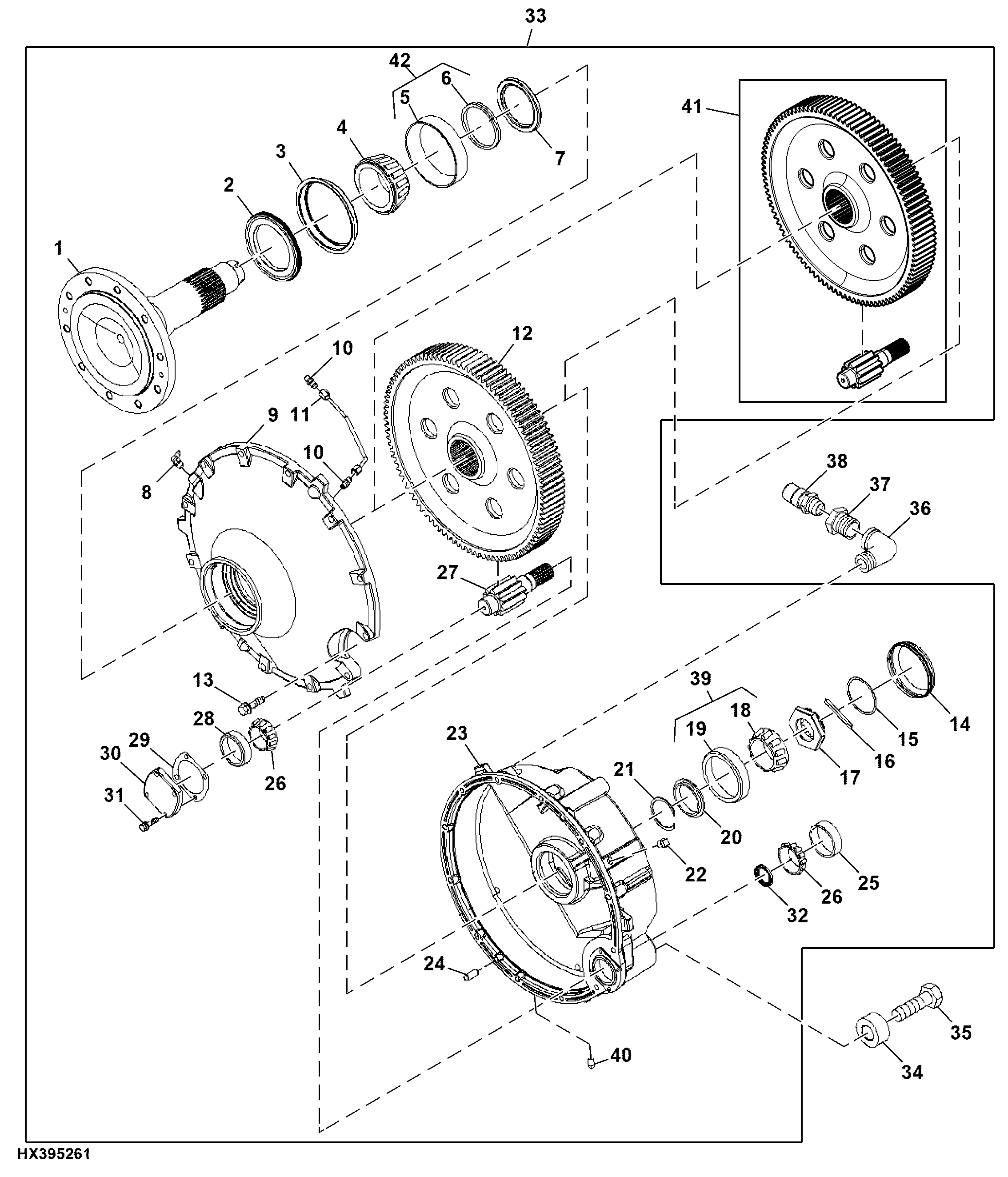

FINAL DRIVE, SINGLE REDUCTION

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H161534	1	Spindle	(HEAVY DUTY) (SUB H201791)
1	H201792	1	Spindle	(REGULAR DUTY) (SUB FOR H133094)
1	H201791	1	Spindle	(HEAVY DUTY)
2	AH112402	1	Seal	(REGULAR DUTY)
2	AH112401	1	Seal	(HEAVY DUTY)
3	R52015	1	Round Retainer	(REGULAR DUTY)
3	R90080	1	Oil Cup	(HEAVY DUTY)
4	JD9092	1	Bearing Cone	(REGULAR DUTY)
4	AN372757	1	Tapered Roller Bearing	(HEAVY DUTY) SUB FOR JD10134
5	N380472	1	Bearing Cup	(HEAVY DUTY) SUB FOR JD10135
5	JD9147	1	Bearing Cup	(REGULAR DUTY)
6	R99244	1	V-Ring Seal	(REGULAR DUTY)
6	H161871	1	V-Ring Seal	(HEAVY DUTY)
7	AH125233	1	Seal	(REGULAR DUTY)
7	AH155232	1	V-Ring Seal	(HEAVY DUTY)
8	JD7760	1	Lubrication Fitting	-
9	H133092	1	Housing	(REGULAR DUTY) (OUTER)
9	H163694	1	Housing	(HEAVY DUTY) (OUTER)
10	R35352	2	Fitting	-
11	AH156971	1	Line	(HEAVY DUTY)
11	AH120736	1	Oil Line	(REGULAR DUTY)
12	-	1	Part 22	(HEAVY DUTY) Z = 95, ORDER DE31426
12	Z12858	1	Gear	(REGULAR DUTY) Z = 104, (SUB FOR H137672)
13	19M7824	12	Screw	M16 X 60
14	H154720	1	Cap	-
15	H22784	1	Snap Ring	-
16	H125330	1	Shaft Key	-
17	H129854	1	Nut	-
18	JD10266	1	Bearing Cone	ORDER AXE63131
19	JD7298	1	Bearing Cup	ORDER AXE63131
20	H129557	1	Spacer	-
21	H118882	1	Snap Ring	-
22	15H584	1	Pipe Plug	1/2"
23	H225886	1	Housing	(HEAVY DUTY) L.H. (USE WITH AH224517)
23	H163693	1	Housing	(HEAVY DUTY) LH, ORDER H225886 AND 15H638 (USE WITH AH205893)
23	N276474	1	Housing	(REGULAR DUTY) R.H.
23	H163692	1	Housing	(HEAVY DUTY) RH, ORDER H225885 AND 15H638 (USE WITH AH205894)
23	H225885	1	Housing	(HEAVY DUTY) R.H. (USE WITH AH224518)
23	N276475	1	Housing	(REGULAR DUTY) L.H.
24	R54380	2	Dowel Pin	-
25	T79098	1	Bearing Cup	(REGULAR DUTY)
25	JD7278	1	Bearing Cup	(HEAVY DUTY)
26	JD10401	2	Bearing Cone	(REGULAR DUTY)
26	JD7228	2	Bearing Cone	(HEAVY DUTY)
27	H168899	1	Pinion	(REGULAR DUTY) Z = 10, ORDER DE31961
27	-	1	Part 46	(HEAVY DUTY) Z = 10, ORDER DE31426
28	JD7278	1	Bearing Cup	(HEAVY DUTY)
28	JD8222	1	Bearing Cup	(REGULAR DUTY)
29	H133096	1	Shim	(REGULAR DUTY) 0.50 MM (0.020") (STEEL)
29	H133097	1	Shim	(REGULAR DUTY) 0.25 MM (0.010") (STEEL)
29	H133098	1	Shim	(REGULAR DUTY) 0.13 MM (0.005"), (PLASTIC) (BLUE)
29	H161541	1	Shim	(HEAVY DUTY) 0.50 MM (0.020") , (STEEL)
29	H161542	1	Shim	(HEAVY DUTY) 0.25 MM (0.010") , (STEEL)
29	H161543	1	Shim	(HEAVY DUTY) 0.13 MM (0.005"), (PLASTIC) (BLUE)
29	H163745	1	Shim	(HEAVY DUTY) 0.07 MM (0.003") , (PLASTIC) (GREEN)
30	H133089	1	Cap	(REGULAR DUTY)
30	H161540	1	Cap	(HEAVY DUTY)
31	19M7835	4	Screw	M10 X 35
32	AH128391	1	Seal	-
33	AH208485	1	Kit	(REGULAR DUTY) COMPLETE L.H. FINAL DRIVE (ALSO INCLUDING PARTS MARKED (C)) (SUB FOR AH163026)
33	AH208486	1	Kit	(REGULAR DUTY) COMPLETE R.H. FINAL DRIVE (ALSO INCLUDING PARTS MARKED (C)) (SUB FOR AH163027) (SUB AH204987, (6) H163561 AND (6) 19M7889)
33	DE31747	1	Drive	(HEAVY DUTY) R.H. , SUB FOR AH163029 OR AH205894 OR AH224518
33	DE31746	1	Drive	(HEAVY DUTY) L.H., SUB FOR AH163028 OR AH205893 OR AH224517
33	AH204986	1	Drive	(REGULAR DUTY) LH, ORDER DE31393
33	AH204987	1	Drive	(REGULAR DUTY) RH, ORDER DE31394
34	H163561	12	Spacer	(C)
35	19M7889	12	Cap Screw	M24 X 80, (C)
36	15H602	1	Elbow Fitting	1/2", (C)
37	15H514	1	Pipe Bushing	1/8", (C)
38	JD5801	1	Pressure Relief Fitting	(C)
39	AXE63131	1	Bearing Kit	-
40	15H638	1	Pipe Plug	1/8"
41	DE31426	1	Gear Kit	Pinion 22 T Spline, SUB FOR H167722 AND H167723
41	DE31961	1	Gear Kit	Pinion 18 T Spline
42	AN400251	1	Bearing Kit	-

FINAL DRIVE, SINGLE REDUCTION
