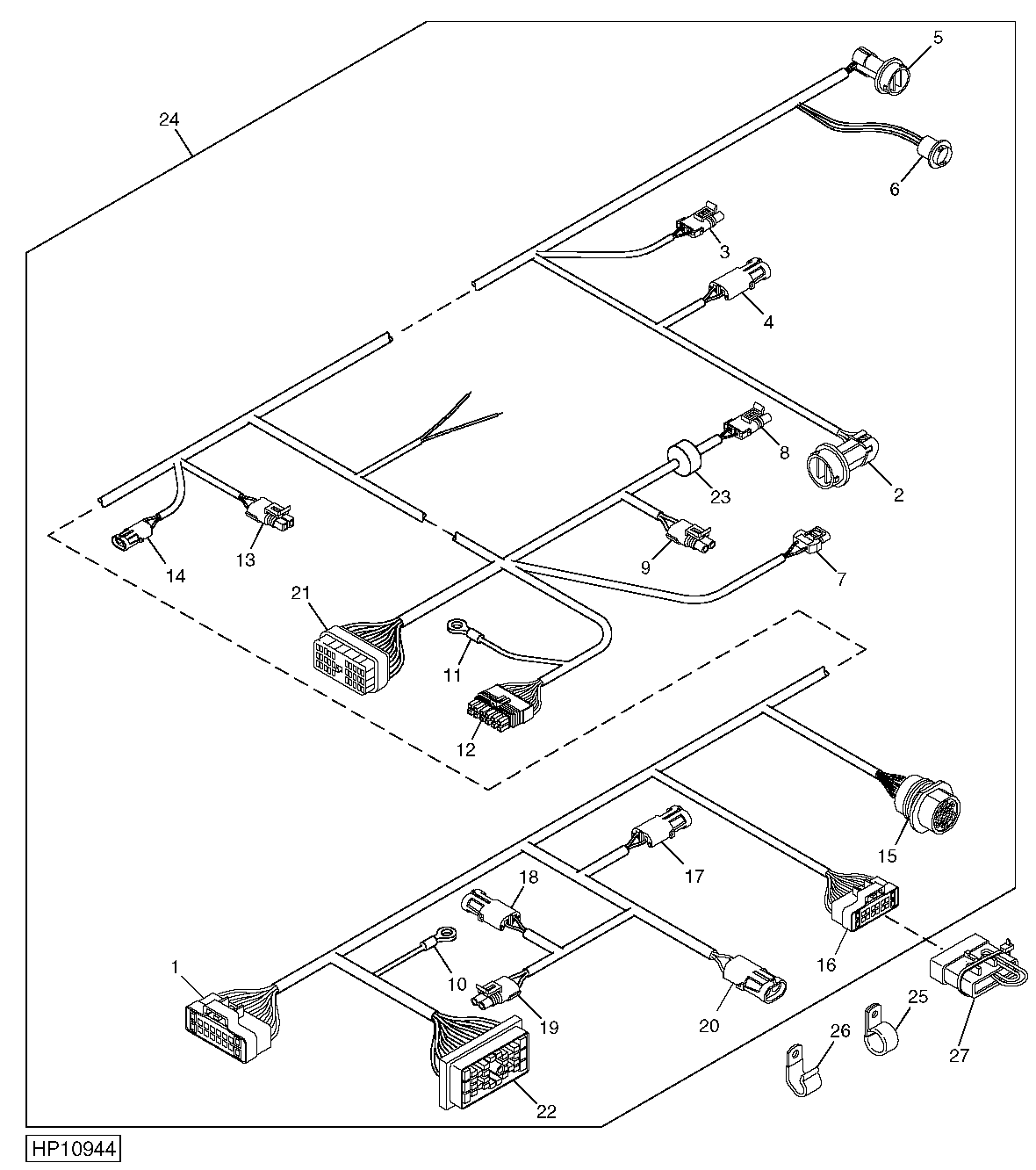

R.H. Main Wiring Harness (695401 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	L.H. MAIN WIRING HARNESS
2	-	1	Part 2	R.H. REAR TAIL/TURN SIGNAL
3	RE12363	1	Electrical Connector Assy	ENGINE SERVICE LIGHT SWITCH
4	R78053	1	Electrical Connector Assy	REAR DISCHARGE LIGHT
5	-	1	Part 5	R.H. REAR TAIL/BRAKE LIGHT
6	57M7458	1	Elec. Connector Housing	R.H. CENTER SIDE MARKER LIGHT
7	57M8128	1	Electrical Connector Assy	SHOE LIGHT
7	57M8129	1	Elec. Connector Terminal	-
8	RE12363	1	Electrical Connector Assy	R.H. WARNING LIGHT
9	RE12363	1	Electrical Connector Assy	ROTARY SCREEN SERVICE LIGHT
10	57M7568	1	Elec. Connector Terminal	CHASIS GROUND
11	-	1	Part 12	RIGHT CHASIS GROUND
12	57M7262	1	Elec. Connector Housing	GRAIN LOSS MONITOR HARNESS
12	R104846	1	Elec. Connector Terminal	-
12	R104701	1	Elec. Connector Terminal	-
12	57M7258	1	Elec. Connector Seal	-
13	57M7813	1	Elec. Connector Housing	FUEL LEVEL
13	57M7829	1	Elec. Connector Terminal	-
14	R78053	1	Electrical Connector Assy	GULLWING LIGHTS
15	57M7666	1	Elec. Connector Housing	ENGINE HARNESS
16	57M7496	1	Elec. Connector Terminal	-
16	57M8156	1	Elec. Connector Housing	MOISTURE SENSOR EXTENSION
17	R78053	1	Electrical Connector Assy	CYLINDER SPEED SENSOR
18	R78053	1	Electrical Connector Assy	CONCAVE ADJUST ACTUATOR
19	RE12364	1	Electrical Connector Assy	CONCAVE SENSOR
19	R78060	1	Elec. Connector Terminal	-
19	R78063	1	Elec. Connector Seal	-
20	R78053	1	Electrical Connector Assy	FAN SPEED SENSOR
21	57M7276	1	Elec. Connector Housing	RIGHT CONTROL UNIT
21	57M7830	1	Elec. Connector Terminal	-
22	57M7546	1	Elec. Connector Terminal	-
22	57M7864	1	Electrical Connector Assy	-
22	57M7854	1	Electrical Connector Assy	CAB MAIN CONNECTOR
23	H141411	1	Round Retainer	-
24	AH201213	1	Wiring Harness	R.H. MAIN
24	AH211737	1	Wiring Harness	(SUB FOR AH202799)
25	AH117301	2	Clamp	GREENSTAR POSITION RECEIVER BREAKOUT COIL WHEN NOT IN USE.
26	AH96317	1	Clip	(SUB FOR AH89486)
27	AH201505	1	Electrical Connector Cap	(SUB AH211726)
27	AH211726	1	Wiring Harness	-
..	H117952	6	Clamp	-
..	AH140120	1	Light Kit	LIGHT REPAIR
