Открытый узел

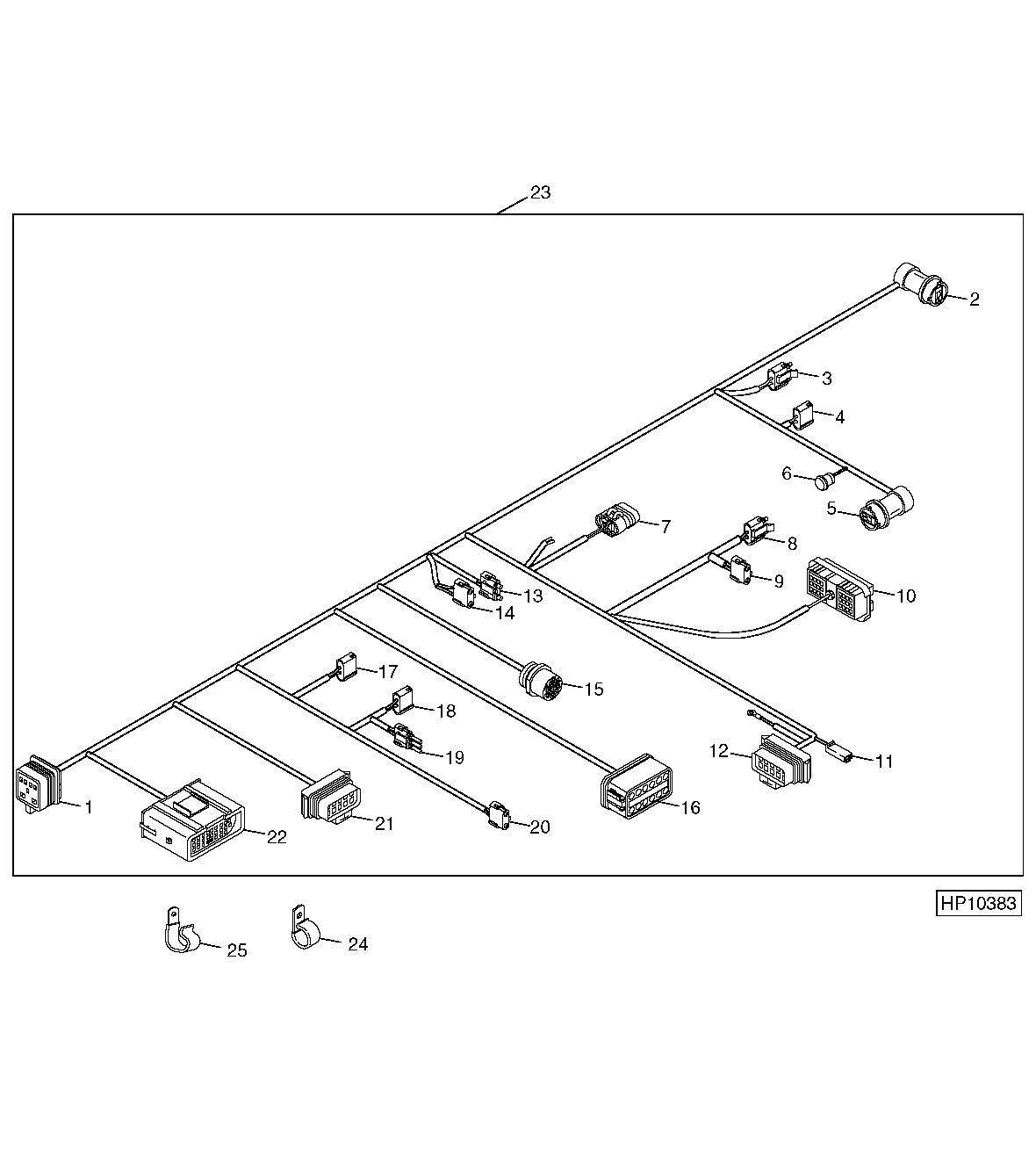

R.H. Main Wiring Harness ( - 695400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R104846	1	Elec. Connector Terminal	-
1	57M7696	1	Elec. Connector Housing	L.H. MAIN WIRING HARNESS
1	57M7698	1	Elec. Connector Terminal	-
1	57M7258	1	Elec. Connector Seal	-
2	-	1	Part 5	R.H. REAR TURN SIGNAL LIGHT
3	RE12363	1	Electrical Connector Assy	ENGINE SERVICE LIGHT SWITCH
4	R78053	1	Electrical Connector Assy	REAR DISCHARGE LIGHT
5	-	1	Part 8	R.H. REAR WARNING LIGHT
6	-	1	Part 9	(ORDER AH140120) R.H. CENTER SIDE MARKER LIGHT
7	-	1	Part 10	SHOE LIGHT
8	RE12363	1	Electrical Connector Assy	R.H. WARNING LIGHT
9	RE12363	1	Electrical Connector Assy	ROTARY SCREEN SERVICE LIGHT
10	57M7830	1	Elec. Connector Terminal	-
10	57M7276	1	Elec. Connector Housing	HARVESTRAK PRE-AMP
11	T28583	1	Elec. Connector Housing	FUEL PUMP
12	57M7262	1	Elec. Connector Housing	HARVESTRAK SENSOR HARNESS
12	R104846	1	Elec. Connector Terminal	-
12	R104701	1	Elec. Connector Terminal	-
12	57M7258	1	Elec. Connector Seal	-
13	57M7813	1	Elec. Connector Housing	FUEL LEVEL
13	57M7829	1	Elec. Connector Terminal	-
14	R78053	1	Electrical Connector Assy	GULLWING LIGHTS
15	57M7666	1	Elec. Connector Housing	ENGINE HARNESS
16	AH211767	1	Wiring Harness	(SUB FOR AH163400) DUST CAP (12-WAY W/JUMPER)
16	-	1	Part 24	MOISTURE SENSOR EXTENSION
17	R78053	1	Electrical Connector Assy	CONCAVE SPEED SENSOR
18	R78053	1	Electrical Connector Assy	CONCAVE ADJUST ACTUATOR
19	RE12364	1	Electrical Connector Assy	CONCAVE SENSOR
19	R78060	1	Elec. Connector Terminal	-
19	R78063	1	Elec. Connector Seal	-
20	R78053	1	Electrical Connector Assy	FAN SPEED SENSOR
21	-	1	Part 35	-
21	R78059	12	Elec. Connector Seal	-
21	R78058	1	Elec. Connector Terminal	-
21	57M7546	1	Elec. Connector Terminal	-
21	57M8008	1	Electrical Connector Assy	POSITION SENSOR
21	-	1	Part 33	-
21	-	1	Part 32	POSITON SENSOR
22	-	1	Part 39	L.H. MAIN CONNECTOR
23	AH165007	1	Wiring Harness	R.H. MAIN
23	AH169887	1	Wiring Harness	R.H. MAIN
24	AH117301	2	Clamp	GREENSTAR POSITION RECEIVER BREAKOUT COIL WHEN NOT IN USE.
25	AH96317	1	Clip	(SUB FOR AH89486)
..	H117952	6	Clamp	-
..	AH140120	1	Light Kit	LIGHT REPAIR

R.H. Main Wiring Harness ( - 695400)

Нет текстового описания
