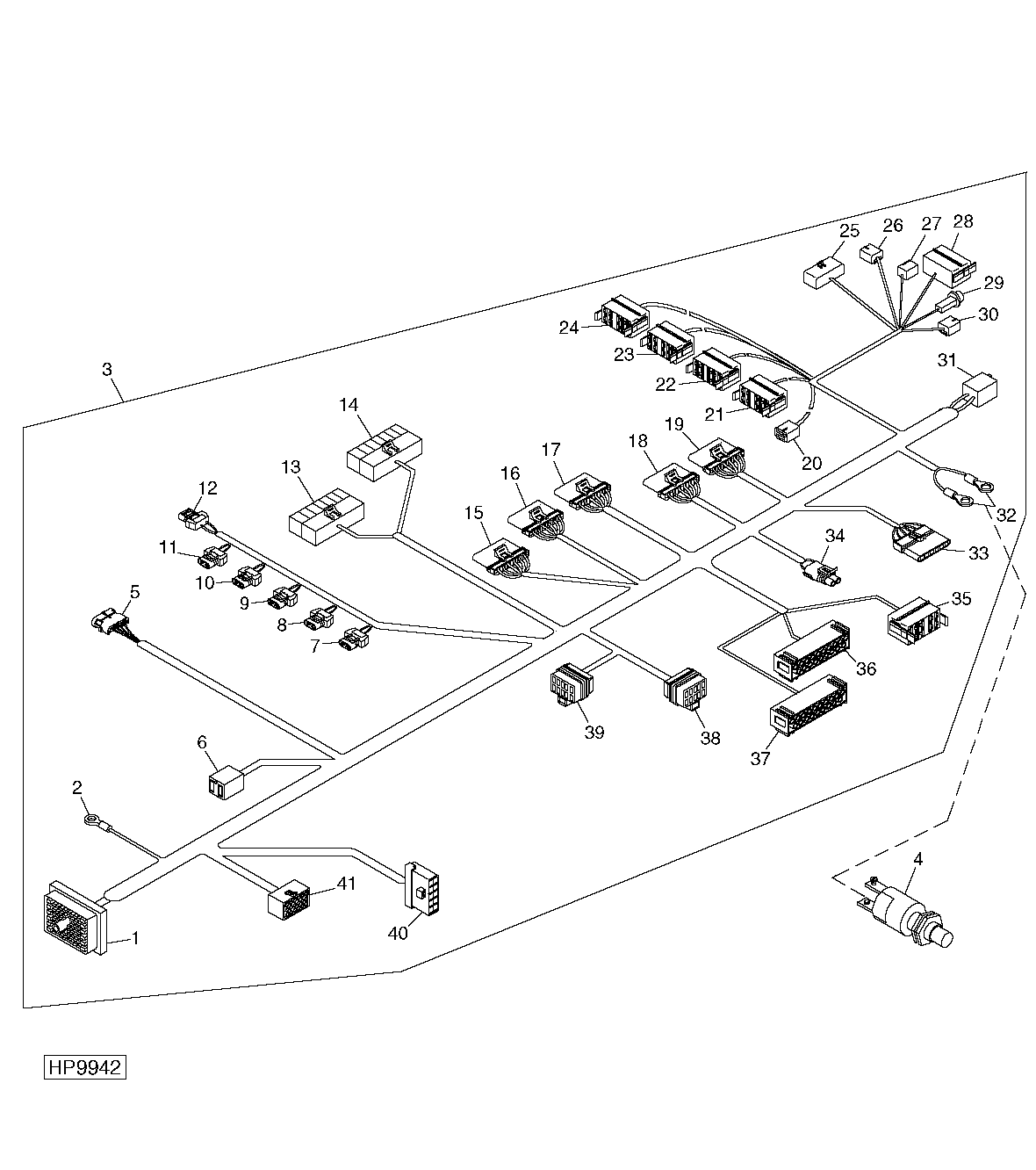

Main Cab Wiring Harness (690401 - 695400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R104919	1	Elec. Connector Terminal	-
1	57M7692	1	Elec. Connector Housing	LEFT MAIN HARNESS
1	57M7695	1	Elec. Connector Terminal	-
1	57M7258	1	Elec. Connector Seal	-
2	-	1	Part 5	CAB GROUND
3	AH169917	1	Cab Wiring Harness	MAIN CAB, W/GREENSTAR
4	RE51234	1	Push Switch	-
5	R78055	1	Electrical Connector Assy	DOME LAMP SWITCH
6	R104927	1	Electrical Connector Assy	RIGHT SPEAKER
7	-	1	Part 10	RIGHT OUTSIDE ROAD LAMP
8	-	1	Part 11	RIGHT SIDE FIELD LAMP
9	-	1	Part 12	RIGHT INSIDE ROAD LAMP
10	-	1	Part 13	LEFT INSIDE ROAD LAMP
11	-	1	Part 14	LEFT SIDE FIELD LAMP
12	-	1	Part 15	LEFT OUTSIDE ROOAD LAMP
13	-	1	Part 16	R.H. CORNERPOST
14	57M7471	1	Electrical Connector Assy	R.H. CORNERPOST
14	R104919	1	Elec. Connector Terminal	-
14	57M7258	1	Elec. Connector Seal	-
15	-	1	Part 20	-
16	-	1	Part 21	-
17	-	1	Part 22	-
18	-	1	Part 23	-
19	-	1	Part 24	-
20	-	1	Part 25	LAMP DIMMER
20	57M7726	1	Electrical Connector Assy	-
21	-	1	Part 27	HAZARD SWITCH
22	-	1	Part 28	ROAD SWITCH
23	-	1	Part 29	FIELD SWITCH
24	-	1	Part 30	STUBBLE/CHOPPER SWITCH
25	-	1	Part 31	RADIO
26	-	1	Part 32	FAN SPEED
27	57M7785	1	Elec. Connector Housing	AUTO FAN SWITCH
27	57M7500	1	Elec. Connector Terminal	-
27	57M7501	1	Elec. Connector Terminal	-
28	-	1	Part 36	MODE
29	57M7792	1	Electrical Connector Assy	DIAGNOSTIC LED
29	57M7500	1	Elec. Connector Terminal	-
30	-	1	Part 39	TEMP SET
31	R104927	1	Electrical Connector Assy	LEFT SPEAKER
32	-	1	Part 41	DOOR SWITCH
33	-	1	Part 42	-
34	RE12363	1	Electrical Connector Assy	WIPER MOTOR
35	-	1	Part 44	WIPER SWITCH
36	Z55270	1	Elec. Connector Terminal	WARNING DISPLAY PANEL J2
37	Z55270	1	Elec. Connector Terminal	WARNING DISPLAY PANEL J1
38	57M7262	1	Elec. Connector Housing	GREENSTAR DISPLAY
38	R104846	1	Elec. Connector Terminal	-
38	R104701	1	Elec. Connector Terminal	-
38	57M7258	1	Elec. Connector Seal	-
39	-	1	Part 51	MAPPING COMPUTER
40	57M7792	1	Electrical Connector Assy	A/C HARNESS
40	57M7500	1	Elec. Connector Terminal	-
41	-	1	Part 54	ARMREST HARNESS

Main Cab Wiring Harness (690401 - 695400)
