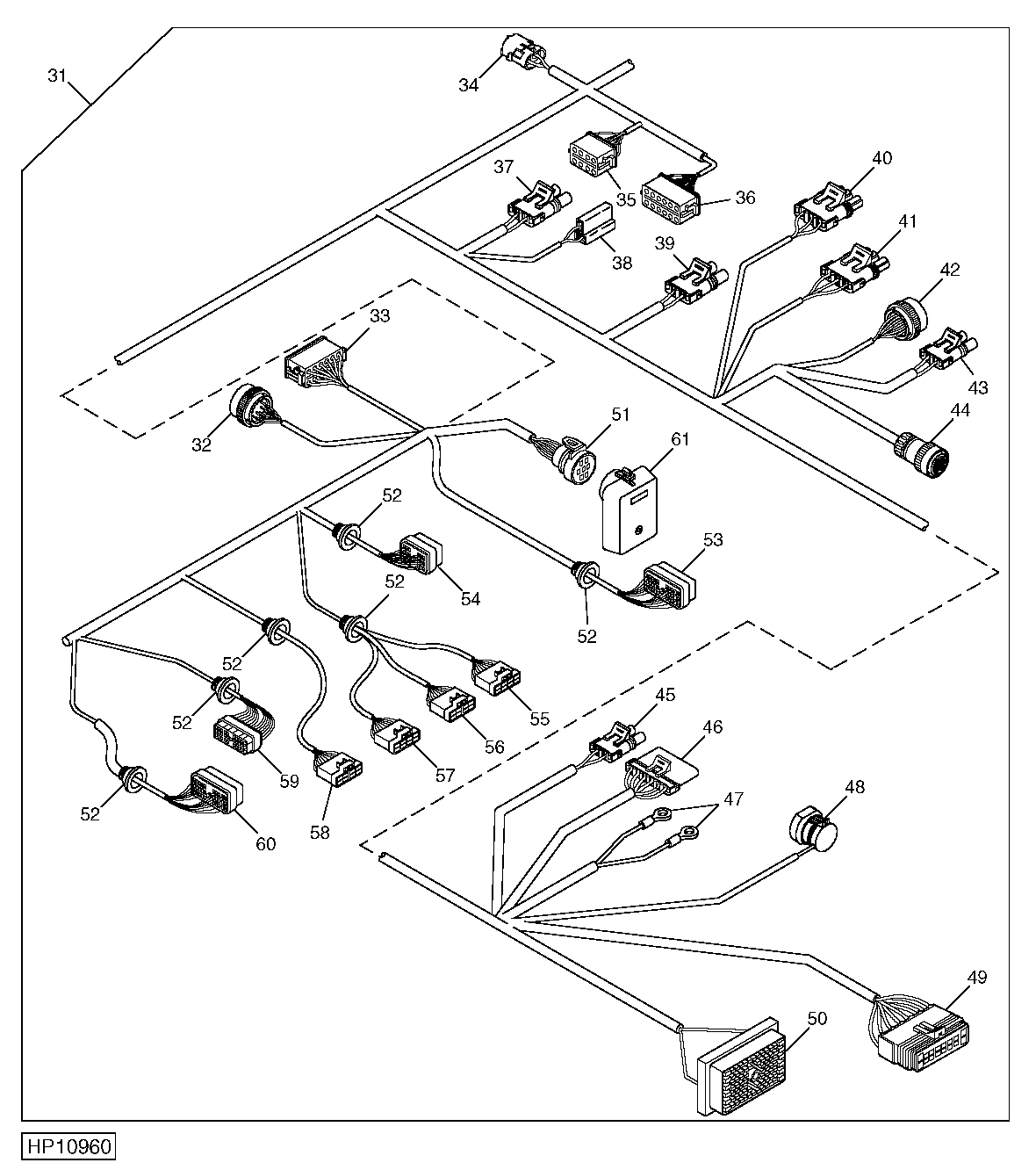

L.H. Main Wiring Harness - Continued (695401 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
31	AH211735	1	Wiring Harness	(SUB FOR AH202532 OR AH202798)
31	AH201211	1	Wiring Harness	(SUB AH202532) L.H. MAIN
32	R104701	1	Elec. Connector Terminal	-
32	57M7253	1	Elec. Connector Housing	GRAIN TANK HARNESS
33	-	1	Part 5	POSITION RECEIVER
34	R78053	1	Electrical Connector Assy	GULLWING SERVICE LIGHTS
35	-	1	Part 7	SLAVE TAILINGS SENSOR
36	-	1	Part 8	MASTER TAILINGS SENSOR
37	RE12363	1	Electrical Connector Assy	ELECTRIC CLUTCH
38	M47488	1	Elec. Connector Terminal	WINDSHIELD WASHER PUMP
39	RE12363	1	Electrical Connector Assy	TAILINGS ELEVATOR
40	R78063	1	Elec. Connector Seal	-
40	R78060	1	Elec. Connector Terminal	-
40	RE12364	1	Electrical Connector Assy	FEEDER HOUSE POSITION SENSOR
41	RE12364	1	Electrical Connector Assy	L.H. TURNING SIGNAL/WARNING LAMP
41	R78060	1	Elec. Connector Terminal	-
41	R78063	1	Elec. Connector Seal	-
42	57M7543	1	Elec. Connector Housing	STEERING COLUMN
43	RE12363	1	Electrical Connector Assy	LEFT STUBBLE LIGHT
44	57M8036	1	Electrical Connector Assy	HEADER HARNESS
44	R78058	1	Elec. Connector Terminal	-
44	57M7546	1	Elec. Connector Terminal	-
44	R78059	1	Elec. Connector Seal	-
45	RE12363	1	Electrical Connector Assy	RIGHT STUBBLE LIGHT
46	R78059	1	Elec. Connector Seal	-
46	R78056	1	Electrical Connector Assy	R.H. FEEDER HOUSE HARNESS
46	R78058	1	Elec. Connector Terminal	-
47	57M7571	2	Elec. Connector Terminal	GROUNDS
48	-	1	Part 29	R.H. TURNING SIGNAL/WARNING LAMP
49	57M8156	1	Elec. Connector Housing	RIGHT MAIN HARNESS
49	57M7496	1	Elec. Connector Terminal	-
50	57M7693	1	Elec. Connector Housing	CAB MAIN
50	R78063	1	Elec. Connector Seal	-
51	57M7538	1	Elec. Connector Housing	CAN BUSS
51	57M7291	1	Electrical Connector Assy	-
52	H142169	6	Boot	-
53	57M7253	1	Elec. Connector Housing	HEADER CONTROL J1
53	R104701	1	Elec. Connector Terminal	-
54	R104701	1	Elec. Connector Terminal	-
54	57M7279	1	Elec. Connector Housing	HEADER CONTROL J2
55	-	1	Part 41	POWERBOARD J1
56	-	1	Part 42	POWERBOARD J2
57	-	1	Part 43	POWERBOARD J3
58	-	1	Part 44	POWERBOARD J4
59	57M7275	1	Elec. Connector Housing	LEFT CONTROL UNIT
59	R104701	1	Elec. Connector Terminal	-
60	57M7276	1	Elec. Connector Housing	LEFT CONTROL UNIT
60	57M7830	1	Elec. Connector Terminal	-
61	RE165032	1	Electronic Terminator	TERMINATOR (2.5 VOLTS), ORDER RE230324 AND RE207311
..	RE230324	1	Wiring Harness	INCLUDES 57M7285 AND R104846
..	57M7285	6	Elec. Connector Terminal	-
..	R104846	6	Elec. Connector Terminal	-
..	RE207311	1	Electronic Control Unit	-

L.H. Main Wiring Harness - Continued (695401 - )
